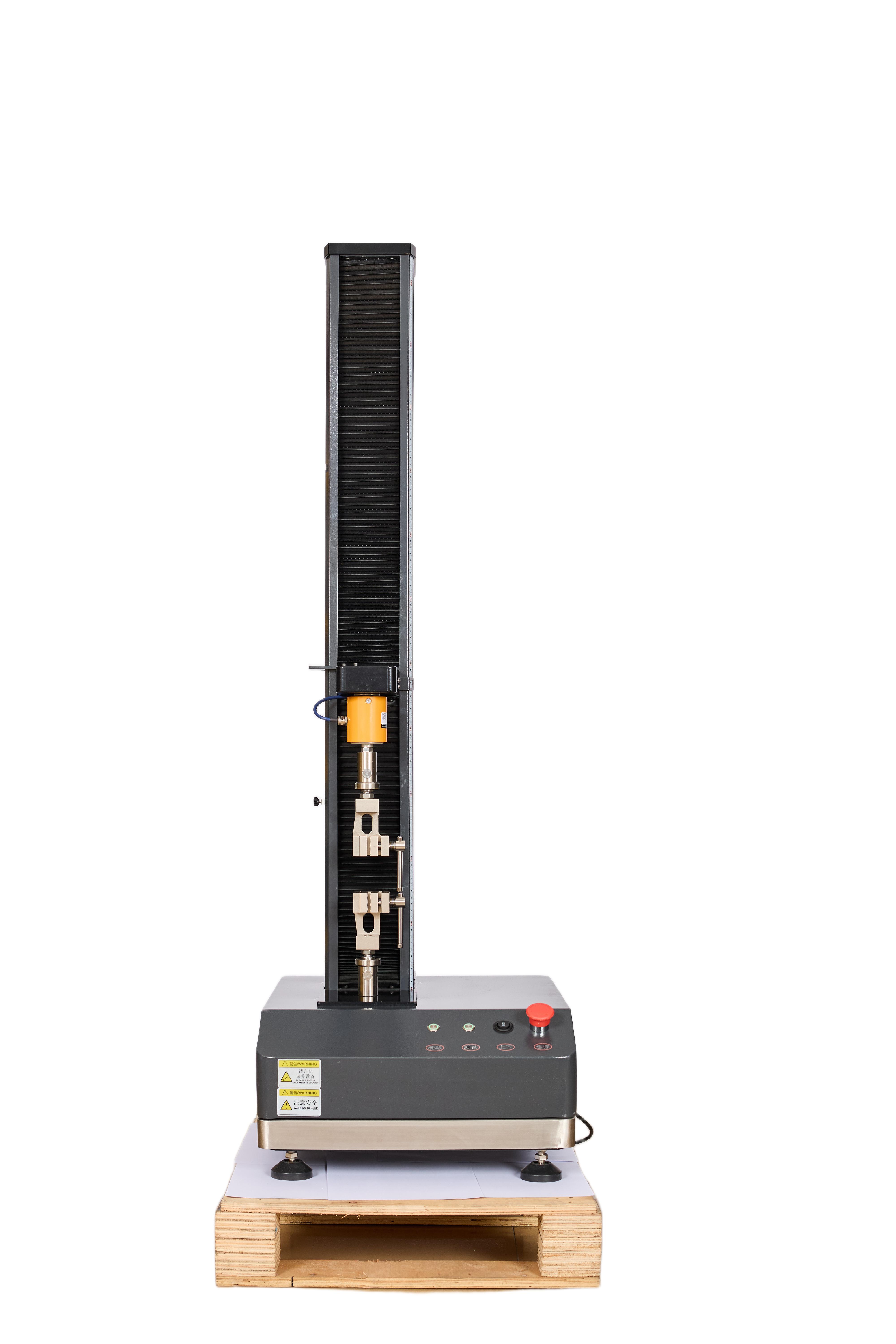

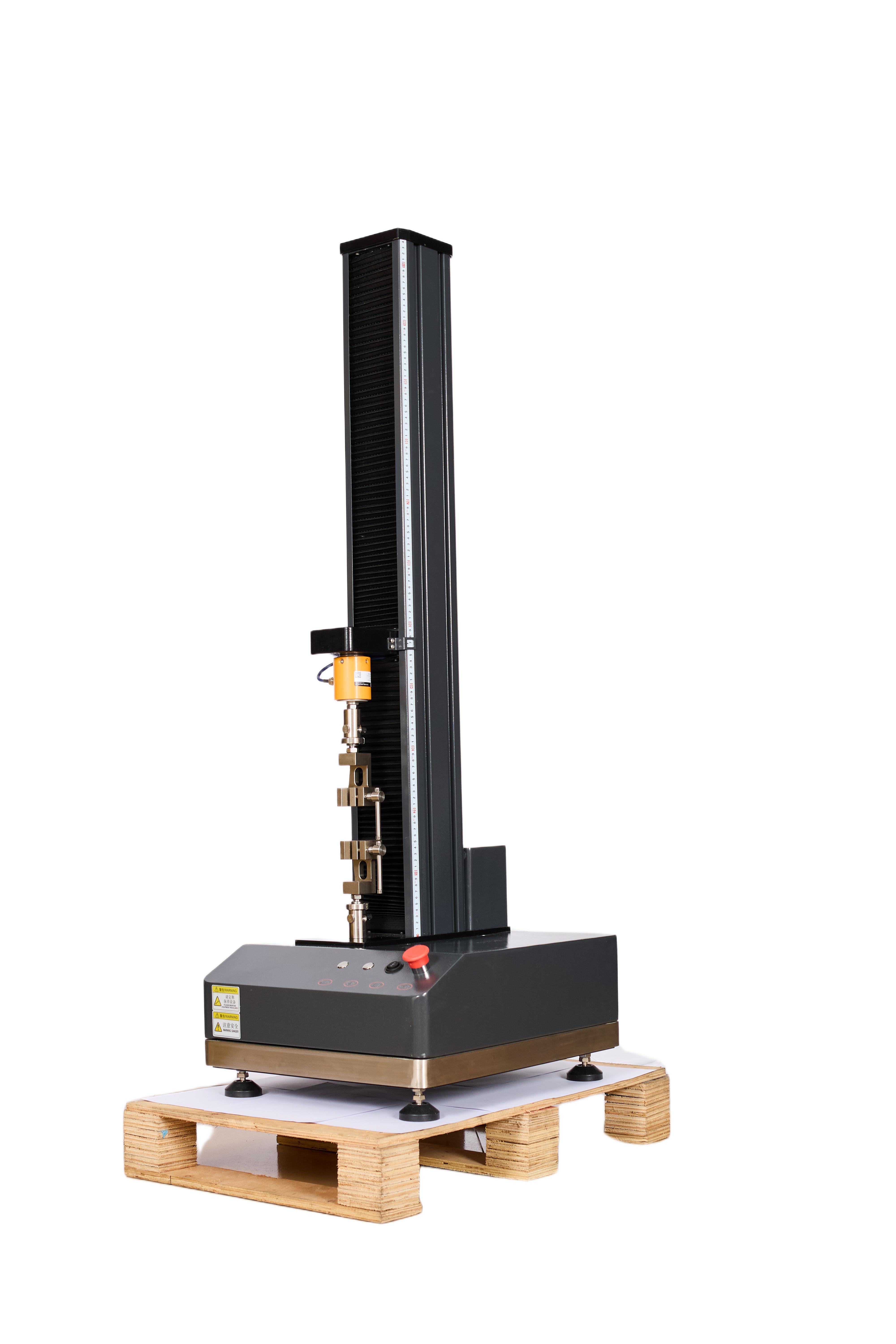

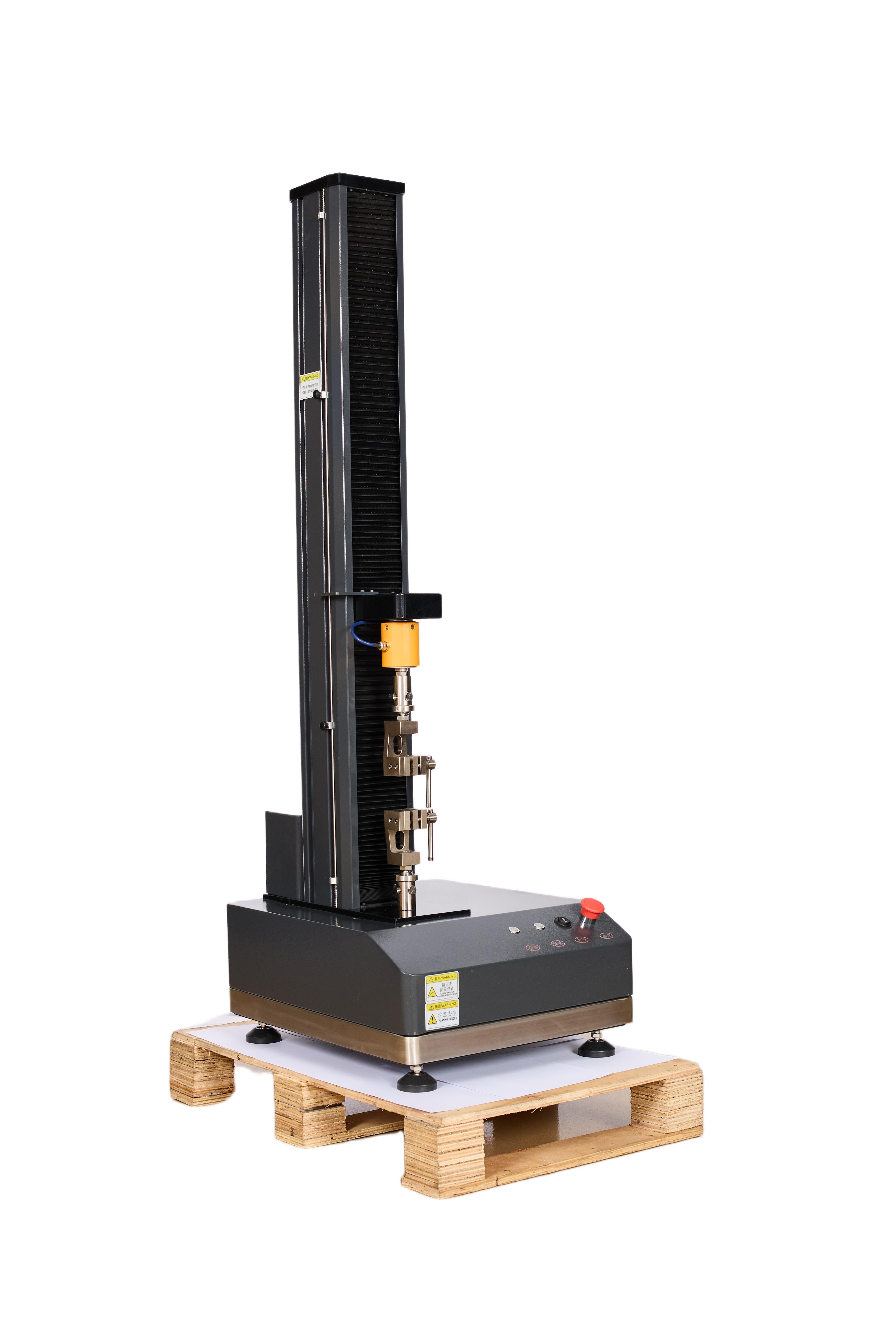

Microcomputer-Controlled Single-Column Desktop Tensile Tester HNS1101A-5

1. Product Overview

This Microcomputer-Controlled Single-Column Desktop Tensile Tester adopts single-column desktop structure. Driven by AC servo motor and high-precision ball screw, the crossbeam moves up and down to conduct mechanical performance tests including tension, compression, bending, shearing, 90° and 180° peel strength for metallic and non-metallic samples.

It automatically calculates core test indicators such as tensile strength, upper yield strength, lower yield strength and elongation after fracture. It supports testing in accordance with GB, ISO, DIN, ASTM, JIS and other international standards. With low noise, high working efficiency, wide adjustable speed range and stable operation, it is ideal testing equipment for manufacturing plants, mines, scientific research laboratories and quality supervision organizations.

2. Core Functions & Features

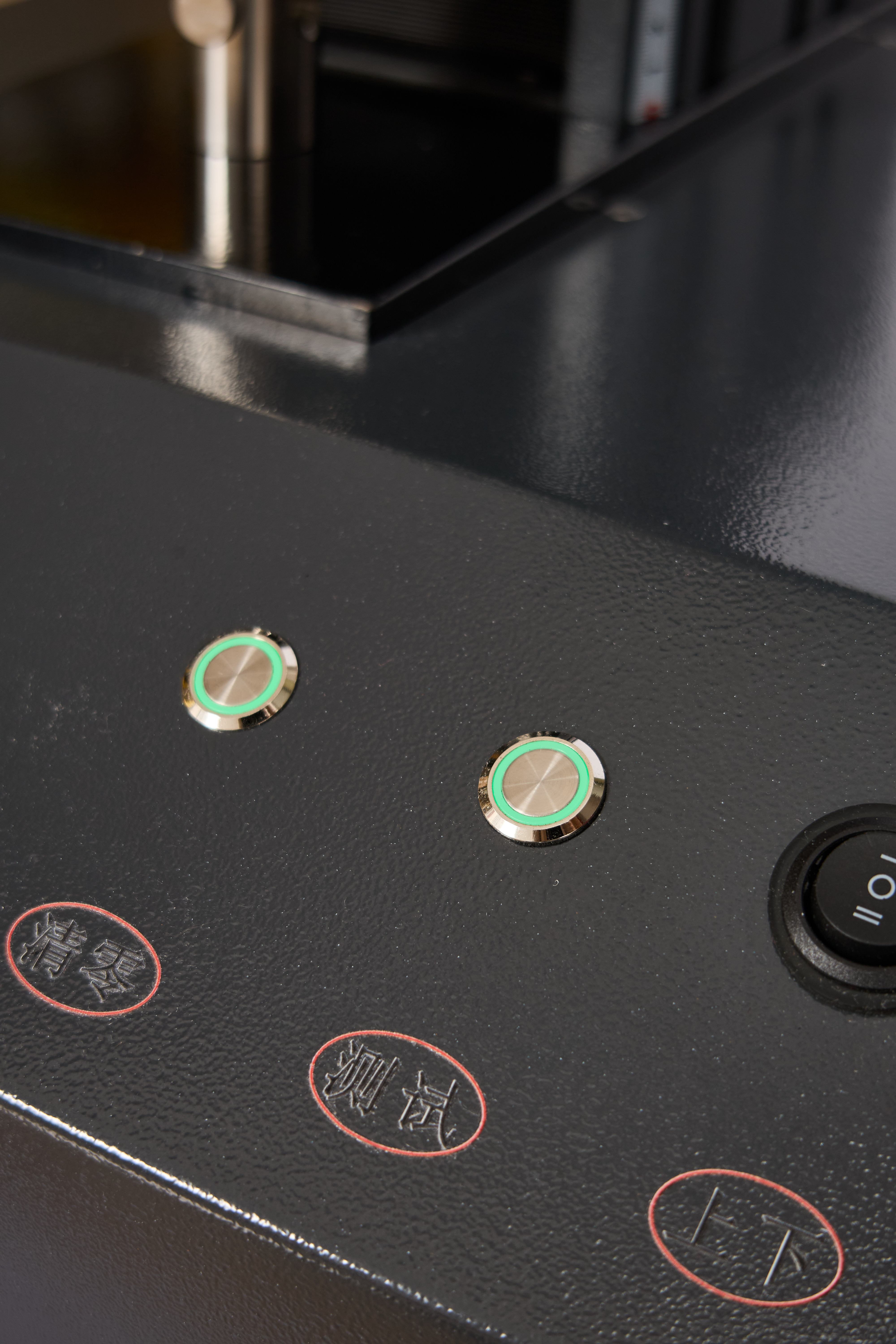

1. The measurement & control software runs on Windows 7 and higher operating systems, supports English & Chinese dual UI. All test operations can be finished by mouse with intuitive human-machine interaction interface.
2. Six automatic intelligent functions: auto zeroing, auto crossbeam return, auto measuring range shift, auto data saving, auto speed regulation, auto system calibration. The whole test flow is fully controlled by microcomputer.
3. Supports real-time dynamic curve display, historical test data replay, overlay comparison of multiple sample curves, continuous batch testing and customized-format test report printing.

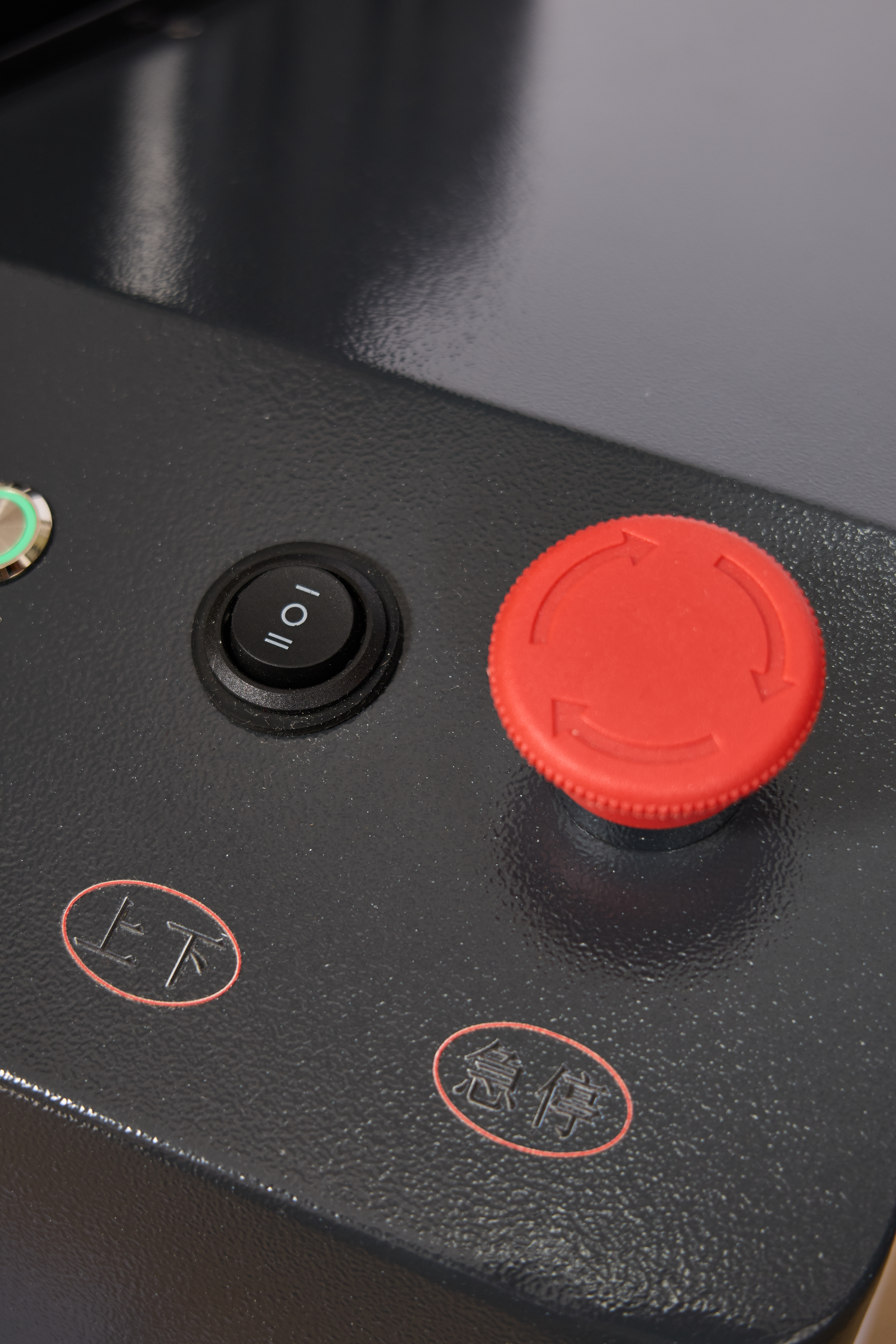

4. Triple safety protection: crossbeam travel limit stop, overload force protection, automatic shutdown when specimen breaks, ensuring safe and stable operation.
5. Equipped with AC servo speed control system and high-precision ball screw, featuring stable loading force, high transmission efficiency, ultra-high positioning accuracy and silent operation.

3. Applicable Test Standards

• GB/T 16491-2022 Electronic universal testing machines
• GB/T 228.1-2021 Tensile testing of metallic materials — Part 1: Test methods at room temperature
• GB/T 1040.2-2022 Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and extruded plastics
• Compatible with global industry standards: GB, JIS, ISO, ASTM, DIN

4. Core Technical Parameters

• Maximum Load Capacity: 5000N
• Tester Precision Grade: Class 0.5
• Force Test Accuracy: ±0.3% of the applied force
• Force Measuring Range: 0.01-100% Full Scale (FS)
• Displacement Resolution: 0.00065mm
• Displacement Accuracy: ±0.5% of indicated value
• Crossbeam Speed Range: 0.01~500mm/min
• Speed Accuracy (No-load State): ±1.0% of set speed when set speed ＜1.0mm/min; ±0.5% of set speed when set speed ≥1.0mm/min
• Effective Tensile Stroke: 750mm
• Effective Compression Stroke: 850mm
• Max Test Width: 120mm
• Data Acquisition Frequency: 40Hz
• Power Supply Specification: AC 220V 50Hz
• Overall Equipment Dimension: Approx. 4505301400mm
• Net Weight: Approx. 75KG

5. Standard & Optional Accessories

Standard Configuration

Optional Accessories
