Inquiry:
Plug socket switch test machine

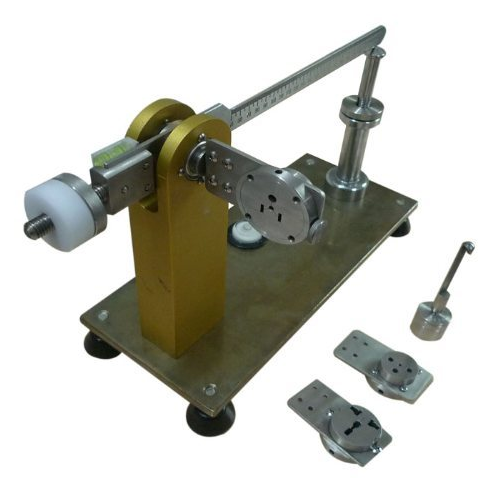

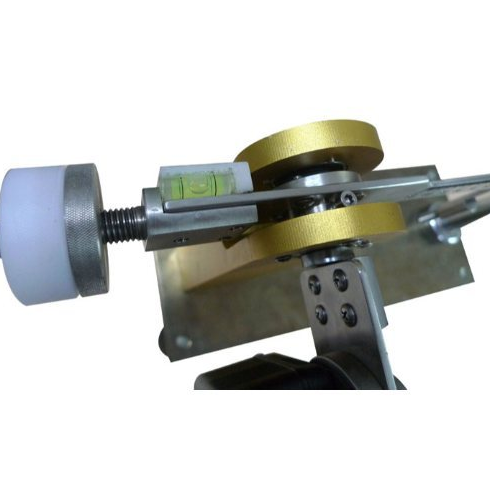

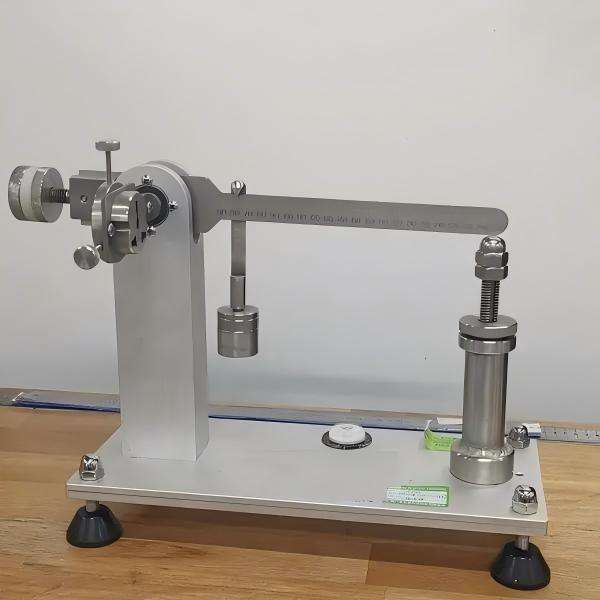

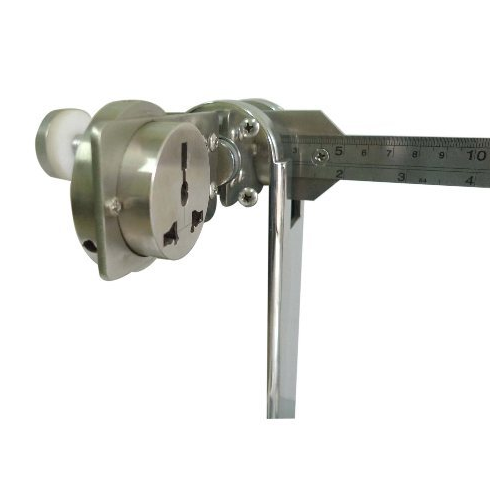

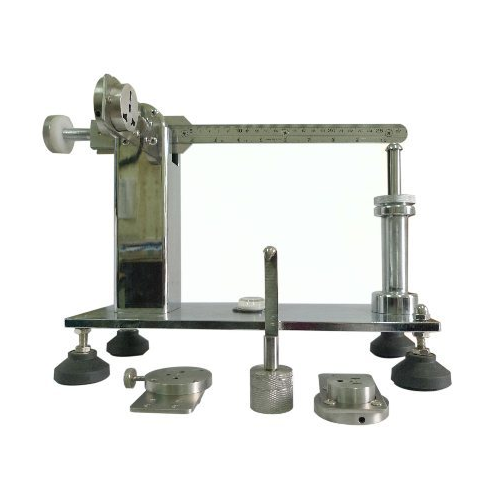

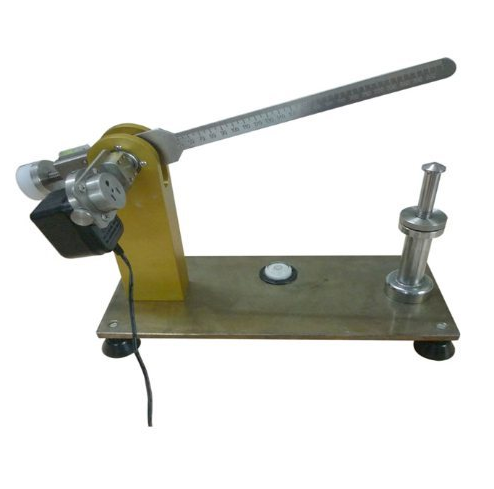

Plug Torque Test Apparatus IEC60065 Figure 11
- Torque test range:0‑0.25N·m
- Force arm:0‑250mm
- Compliance standard: IEC60065,IEC60884‑1
- Test position:8mm behind engagement face
- Product description:Plug Torque Test Apparatus complies with IEC60065, IEC60884‑1 standards, used for socket‑outlet torque balance test, test torque strain of plug and socket‑outlet.
Plug Torque Test Apparatus IEC60065 Figure 11 for Socket‑Outlet Torque Balance Test
Application:
Technical Parameters:
‑ Torque test range: 0‑0.25N·m
‑ Force arm length: 0‑250mm
‑ Test position: 8 mm behind the engagement face
‑ Applicable standards: IEC60065, IEC60884‑1
Test Principle:
The balancing arm is aligned to the center lines of socket‑outlet contact tubes at 8 mm behind the engagement face, apply torque to verify the mechanical strength of socket‑outlet.
This plug torque test apparatus is designed to test the torque strain exerted by input socket‑outlet and devices with plug pins on output socket‑outlets. It complies with IEC60065, IEC60884‑1 related clauses. Widely used for safety compliance test of plugs and socket‑outlets.
‑ Test requirement: The torque value shall not exceed 0.25Nm during testing
