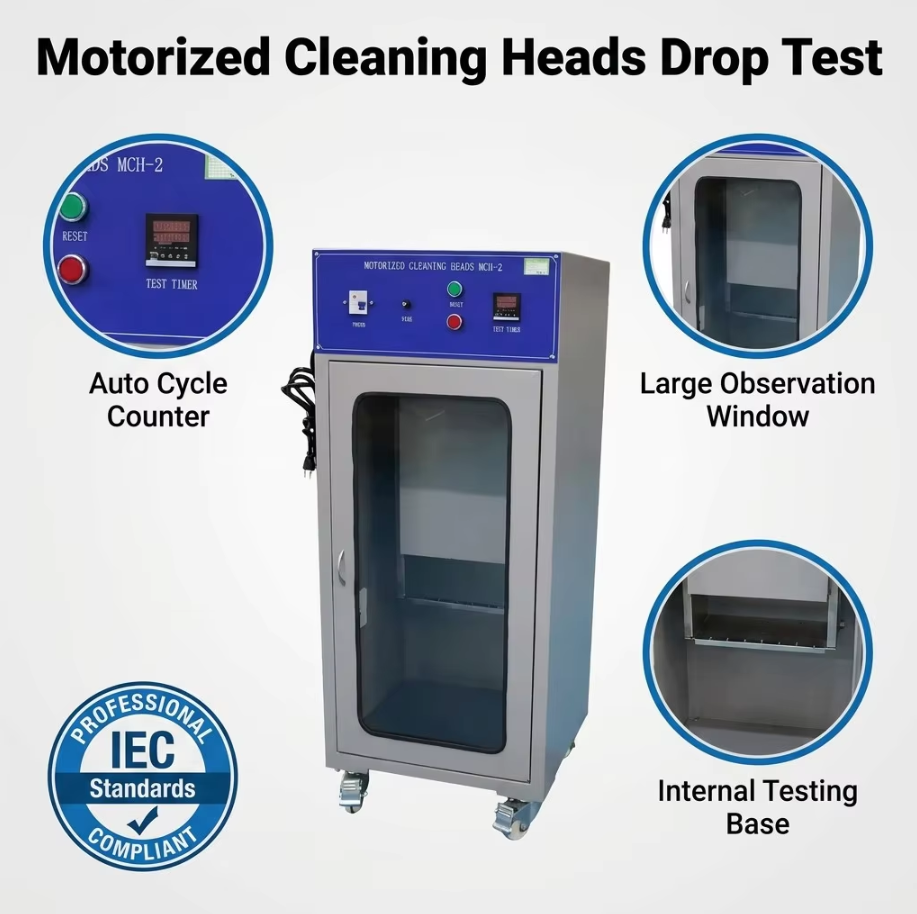

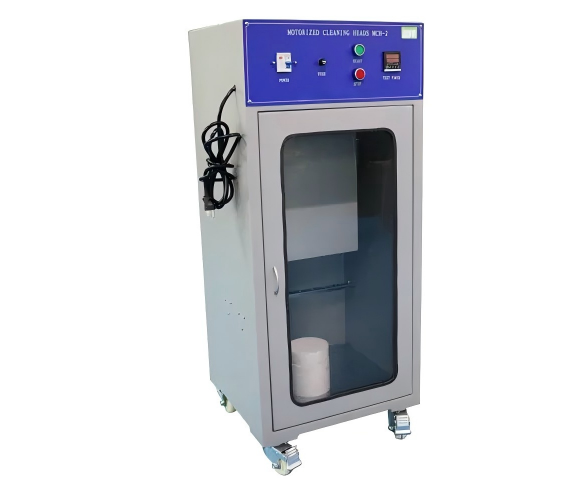

Motorized Cleaning Head Test Equipment IEC 60335-2-2

Product Overview

Application Scope

• Household vacuum cleaner motorized cleaning heads
• Water suction cleaning equipment brush heads
• Pet grooming vacuum cleaning heads
• Central integrated vacuum cleaner motorized floor heads
• Certification laboratories, home appliance manufacturers, third-party testing institutions

Main Technical Parameters

1. Standard drop height: 100mm with positioning fixture
2. Test base: ≥15mm thick solid steel plate, weight over 15kg
3. Control mode: PLC programmable + 7-inch color touch screen
4. Adjustable test cycle times, automatic counting & stop alarm
5. Working power: AC220V 50Hz, stable power output for powered test samples
6. Built-in universal socket to supply power to tested cleaning heads during test

Product Features

1. Fully meet IEC 60335-2-2 clause 15.101 test requirements, consistent with international certification standards
2. Precise height positioning mechanism, drop height error less than ±1mm
3. Automatic lifting and drop structure, no manual auxiliary operation, high test repeatability
4. Complete safety protection cover to avoid splashing debris during impact test
5. Touch screen one-click parameter setting, storage of multiple test schemes
6. Stable frame structure, anti-vibration design for long-term continuous testing

Complied Standards
