Fire hazard test equipment

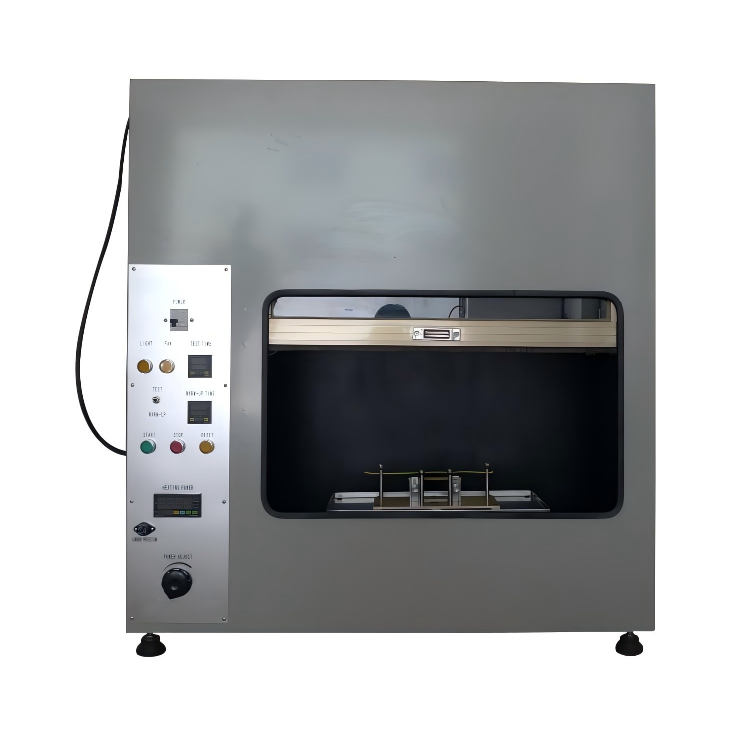

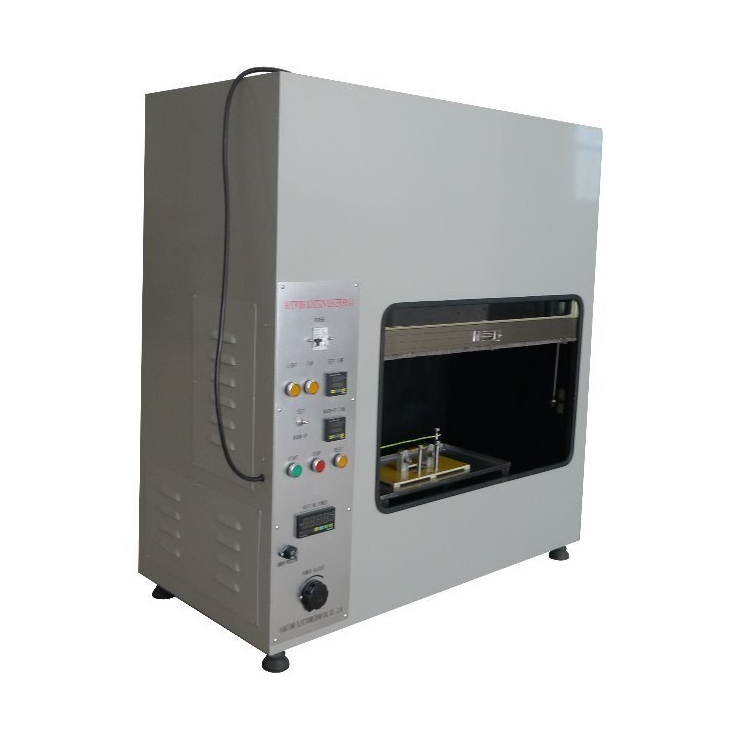

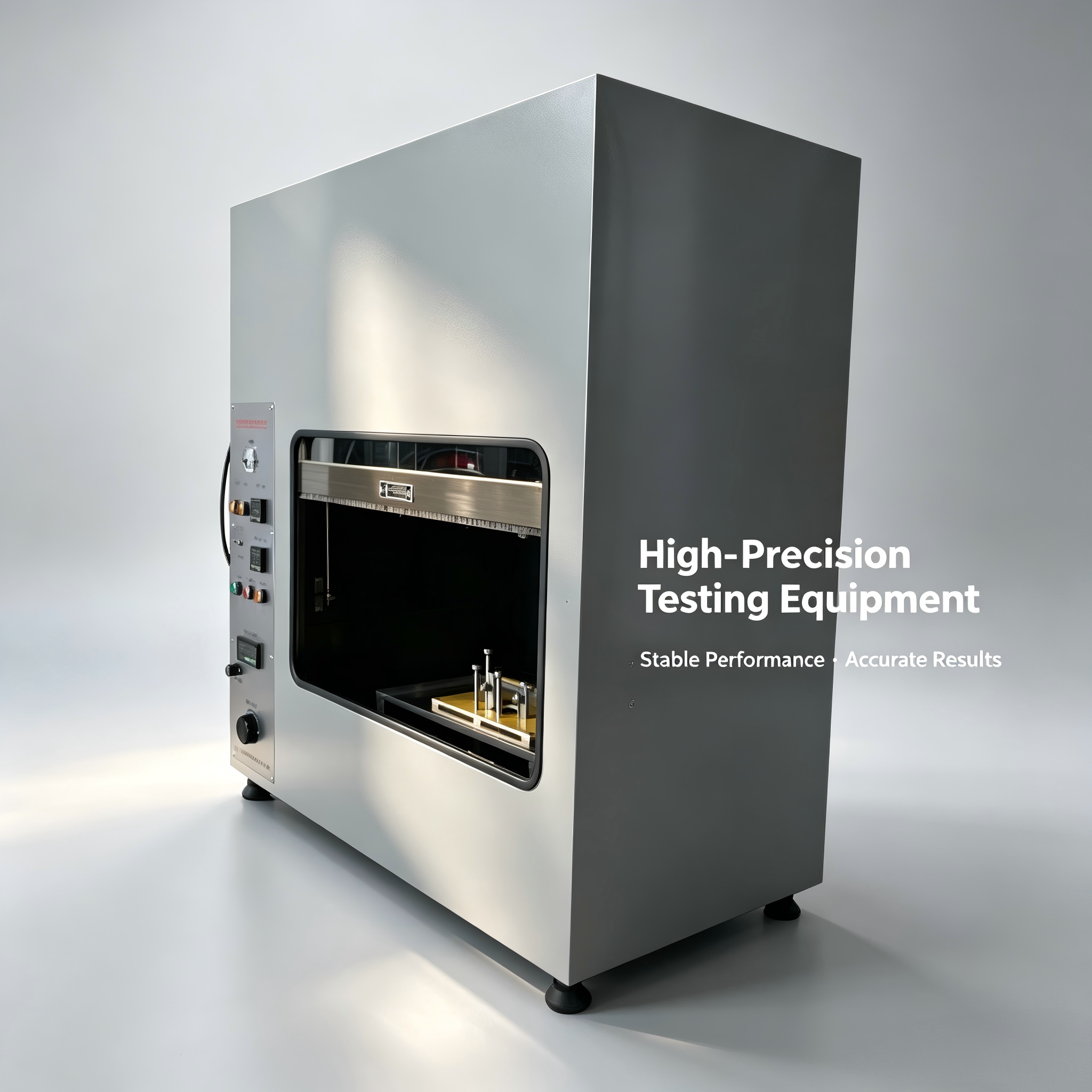

Glow-Wire Ignition Tester IEC60695 IEC60950
- Test temperature: 500~1000℃
- Specimen pressure: 1.0N±0.2N
- Glow wire contact time:0~999.9s
- Penetration depth:7mm±0.5mm
- Product description:Glow-Wire Ignition Tester comply with IEC60695, IEC6095 standard for fire hazard flammability test
Product Introduction
Glow Wire Ignition Tester is designed in accordance with IEC 60695-2-11, IEC60950 standards. This equipment simulates the thermal stress generated by overheated components inside electrical and electronic products, testing the resistance to ignition of plastic insulating materials.
Application
It is widely used in laboratories, electronic manufacturers, certification testing institutions to test plastic housings, insulating parts of household appliances, IT equipment, electrical accessories and other products.
Main Technical Parameters
- Test temperature range: 500℃ ~ 1000℃
- Specimen contact pressure: 1.0N ±0.2N
- Glow wire contact duration: 0~999.9s adjustable
- Standard penetration depth:7mm±0.5mm
- Thermocouple: K-type thermocouple
- Automatic timing and alarm function
Features

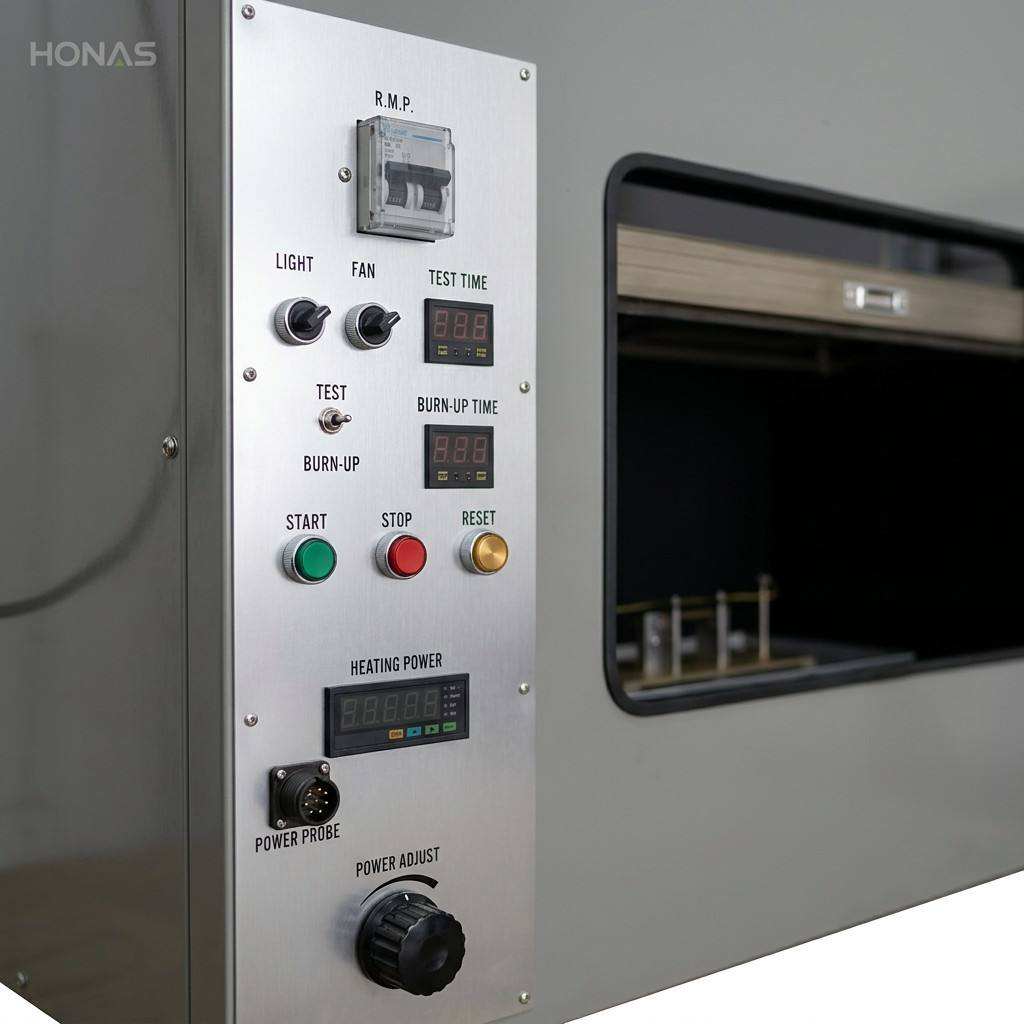

✅ PLC control / Touch screen operation, easy parameter setting
✅ High precision temperature control system
✅ Closed test chamber with exhaust fan to discharge harmful smoke
✅ Complete safety protection structure
✅ Fully comply with international IEC testing standards
