Fire hazard test equipment

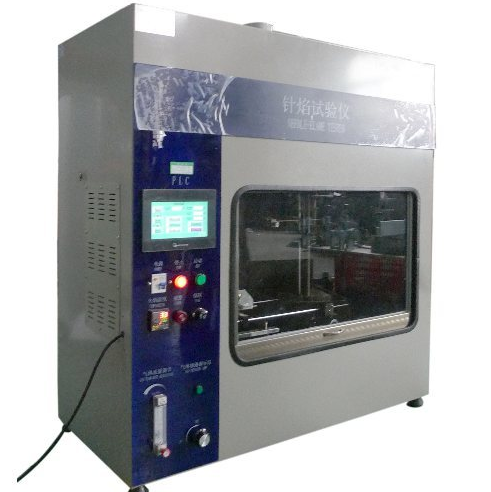

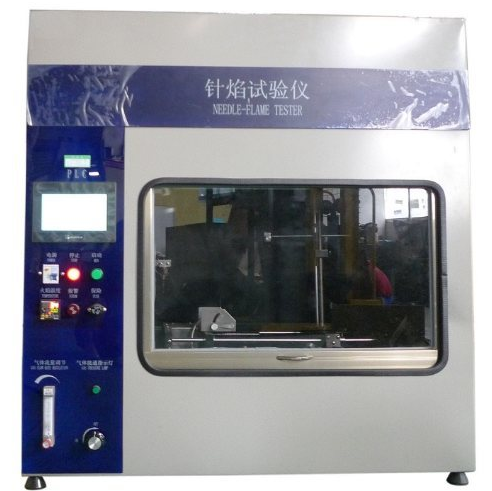

IEC60695-11-5 Needle Flame Tester Plastic Insulation Material Flammability Test Machine

IEC60695-11-5 Needle Flame Tester Plastic Insulation Material Flammability Test Machine

Compliance Standard: IEC60695-11-5, GB/T5169.5, EN60695-11-5
Test Function: Needle Flame Fire Hazard Flammability Test
Test Sample: Electrical Plastic, EV Connector, Household Appliance Parts
Control Type: Digital Panel / Touch Screen Optional
Product description:IEC60695-11-5 Needle Flame Tester complies with GB/T5169.5, simulate circuit fault small flame for plastic insulation flammability certification test of electronics & EV parts.
INQUIRY EMAIL

1. Product Overview

Needle Flame Tester is designed according to international fire hazard testing standard IEC60695-11-5, simulating small flame caused by circuit short circuit, poor contact and component failure inside electrical productsIEC Websto.... The standard needle burner produces 12mm fixed flame height, burning sample surface for set time to observe ignition, continuous combustion, dripping and spread flame phenomenon, judge the fire risk of combustible insulating materials. Test results can be used for CE, CCC and other product safety certification, widely applied in electronics, new energy vehicles, home appliances, wiring harness and insulation material industries.

2. Applicable Test Standards

International Standard: IEC60695-11-5:2016, EN60695-11-5
Chinese National Standard: GB/T 5169.5-2020
Test Fuel: Butane gas (purity ≥95%)
Test Objects: PC/PA/PBT engineering plastic, EV connector shell, household appliance internal insulation, power adapter housing, wiring harness insulation layer, low voltage socket plastic parts

3. Core Test Functions

Standard stainless steel needle burner, inner diameter 0.5mm, fixed flame height 12±1mm
Burner angle adjustable 0°/20°/45°, meet all standard test requirements
0~999.9s programmable flame application time, automatic timing & stop
Built-in smoke exhaust fan to discharge combustion waste gas
Transparent explosion-proof observation window for real-time test viewing
Standard cotton indicator paper below sample to judge dripping ignition risk
Overpressure, gas leakage, over-temperature multi-layer safety protection

4. Core Product Advantages

Standard Calibrated Flame System

Precise gas flow control ensures stable 12mm flame height, consistent test results, easy third-party calibration.
Fully Closed Safety Test Cabinet

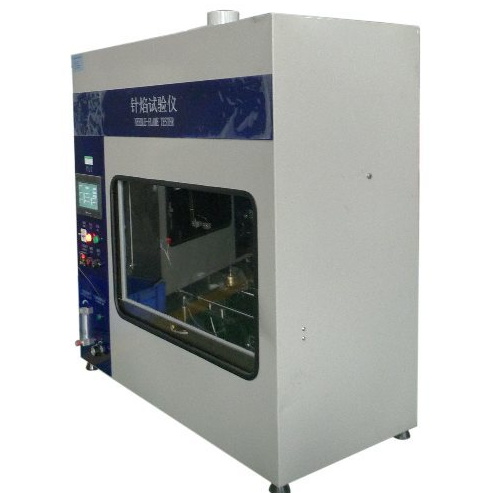

Sealed metal cabinet with toughened glass window, avoid flame spill risk during testing, built-in exhaust fan for safe operation.
Flexible Adjustable Structure

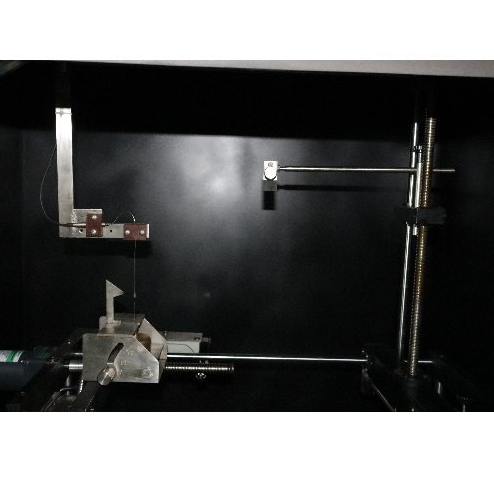

X/Y/Z three-axis adjustable sample bracket, burner angle switchable, fit all standard test specimens and special EV connector samples.
Intelligent Control System

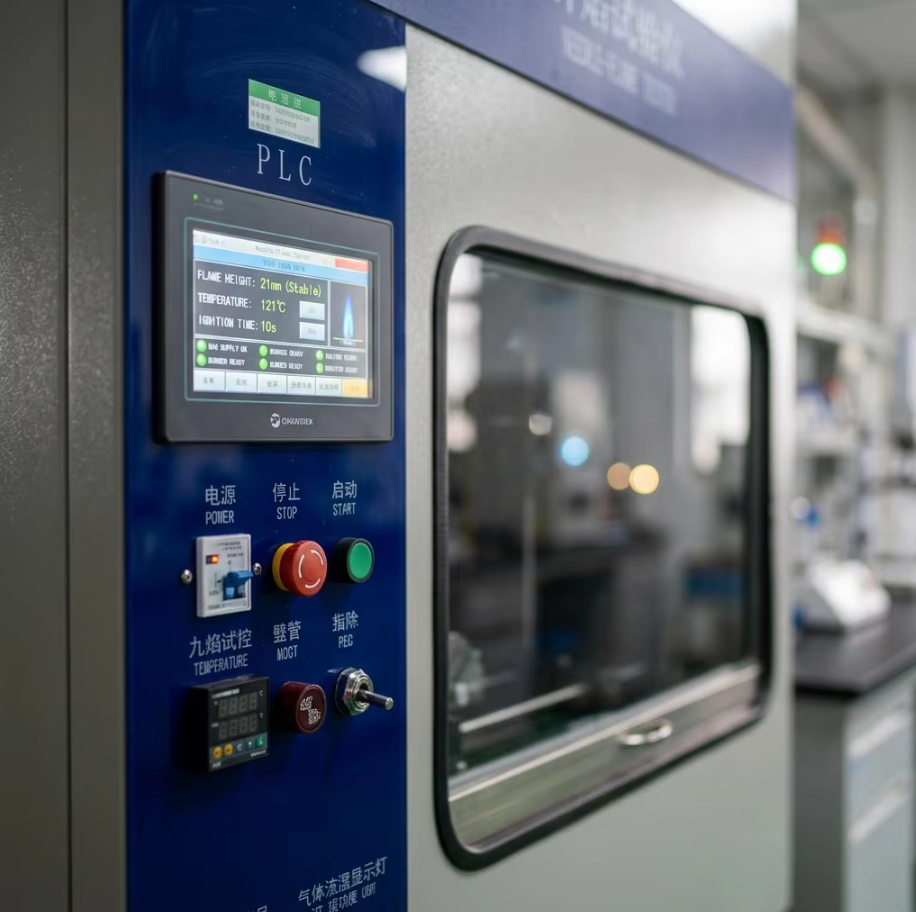

Digital panel as standard, optional 7-inch touch screen; one-click set flame time, real-time running data display, automatic record test cycle.
Complete Safety Protection

Gas pressure relief valve, gas cut-off protection, emergency stop button, anti-flashback burner design, eliminate hidden fire danger.
Customization Support

Touch screen upgrade, customized cabinet size, extended data storage function, OEM brand logo acceptable.

5. Technical Specification Table

Item	Parameter
Compliance Standard	IEC60695-11-5, GB/T5169.5
Needle Burner	Stainless steel, inner diameter 0.5±0.1mm
Standard Flame Height	12±1mm
Flame Application Time	0~999.9s adjustable
Burner Angle	0°, 20°, 45° optional
Fuel Gas	Butane ≥95% purity
Control Mode	Digital panel / Touch screen optional
Test Cabinet	Sealed metal cabinet with exhaust fan
Power Supply	AC220V 50Hz
