High Current Arc Ignition HAI Tester UL746A Insulation Material Arc Resistance Test Machine
- Compliance Standard: UL746A, IEC60950-1, IEC60947-1, GB4943.1
- Test Item: HAI High Current Arc Ignition Resistance Test
- Application: Insulation Plastic, Electronic Components, EV Connector
- Control Mode: Digital Programmable / Touch Screen Optional
- Product description:Professional HAI High Current Arc Ignition Tester complies with UL746A IEC60950-1, 33A arc strike test for insulation plastic, electronic components safety certification testing.
1. Product Overview
This HAI High Current Arc Ignition Tester is a standard arc resistance testing device for electrical insulating materials, designed to simulate high current electric arc generated by equipment circuit faults. It performs repeated arc strikes on the surface of plastic, insulation and electronic components to assess anti-ignition performance, effectively prevent electrical fire risks caused by arc ablation of internal combustible parts of electrical products.
The test result can be used for product safety certification of UL, IEC, GB standards, widely applied in IT equipment, low-voltage electrical appliances, new energy vehicles, household appliances and engineering plastic manufacturing industries.

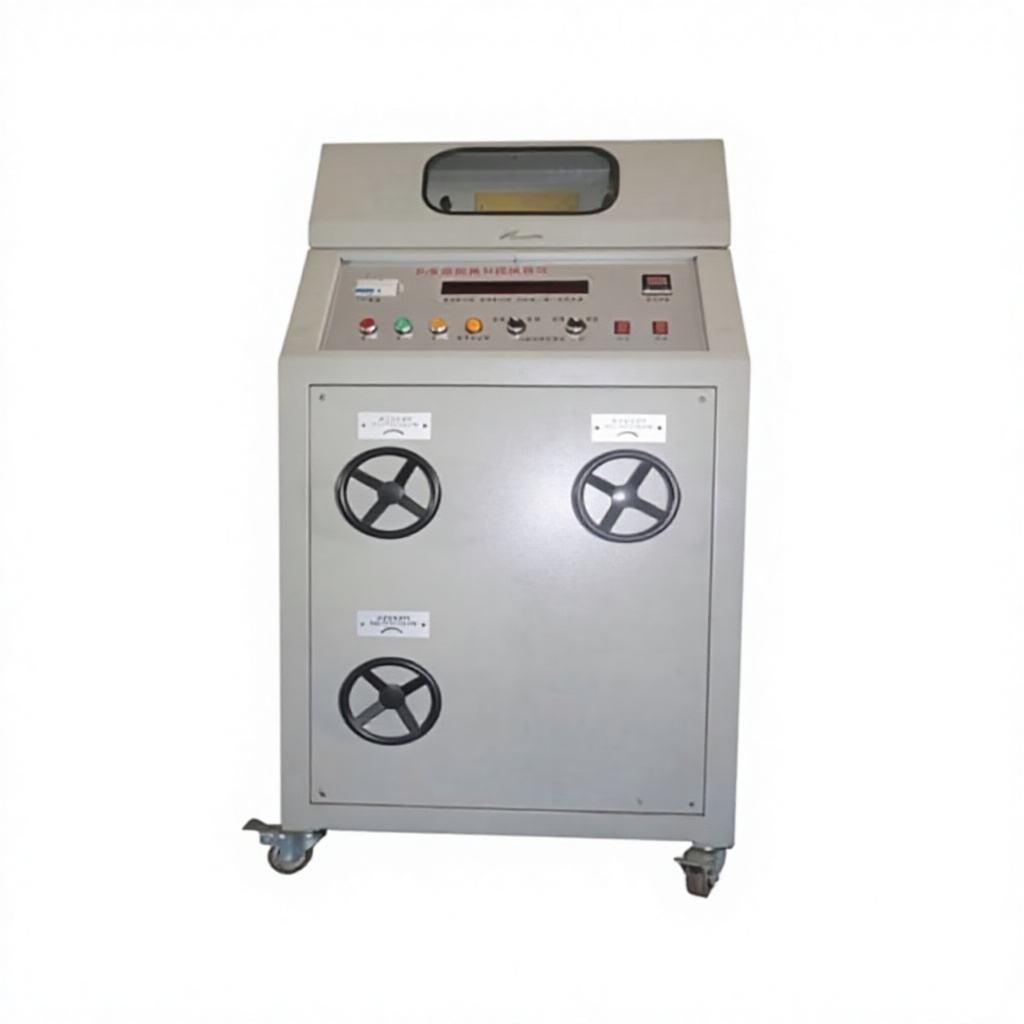

AI试验整机1

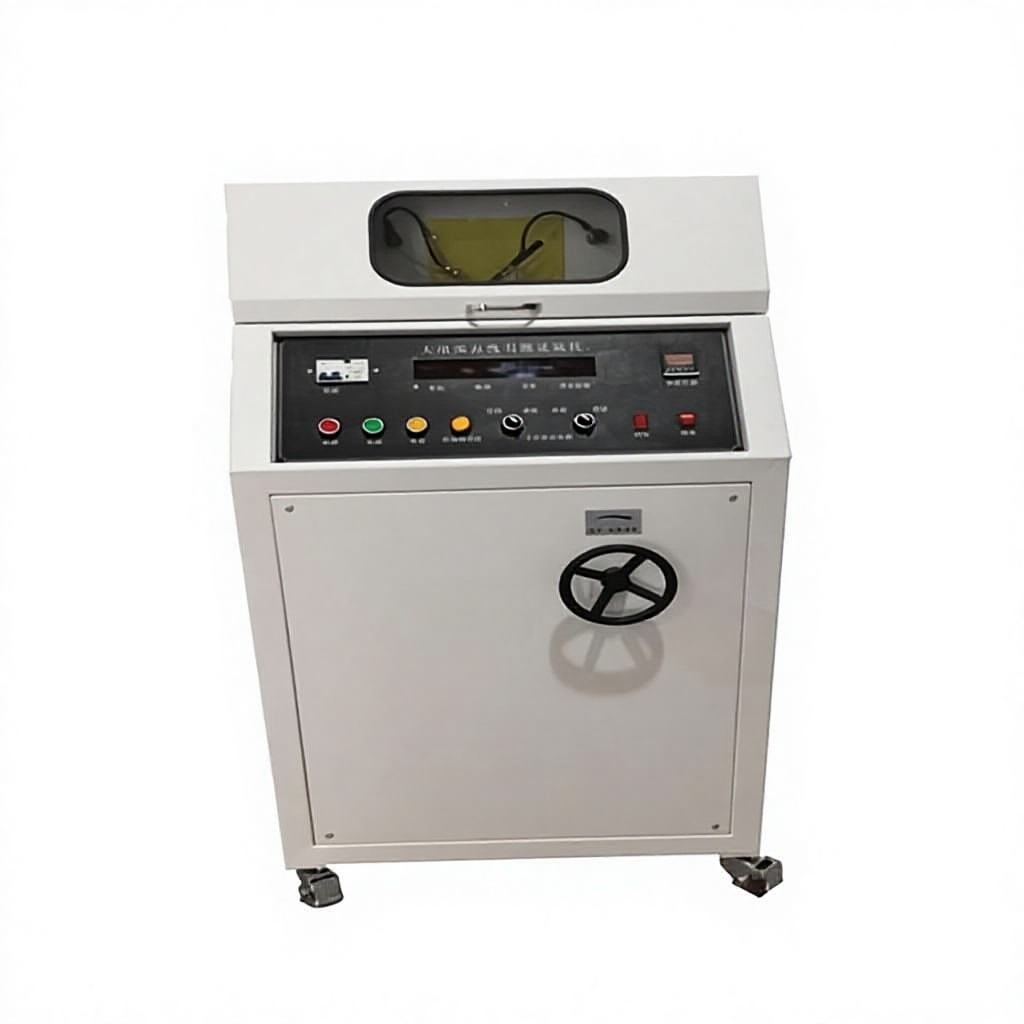

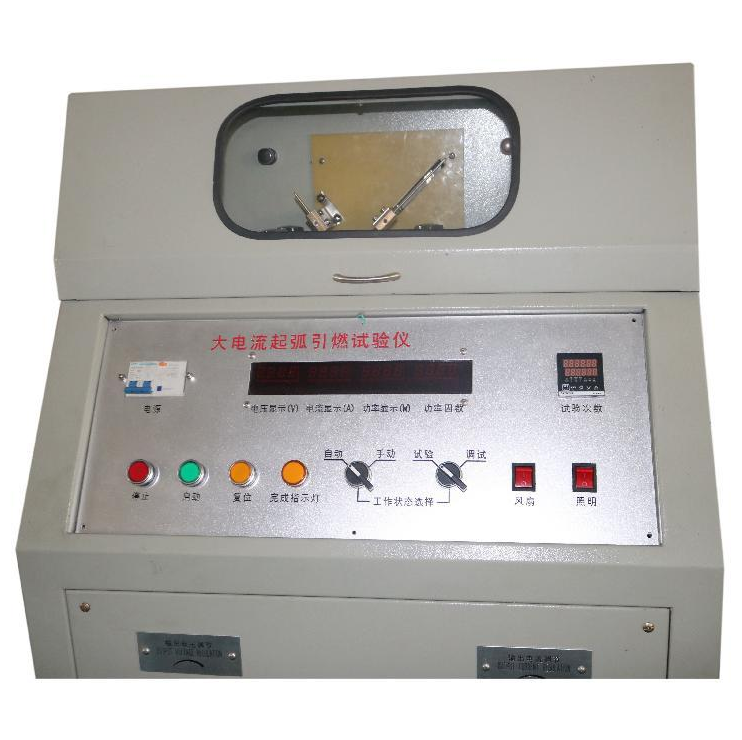

A试验机整机2验舱特写
2. Applicable Test Standards
- UL Standard: UL746A, UL746C, UL498
- IEC International Standard: IEC60950-1, IEC60947-1, IEC60730-1
- Chinese National Standard: GB4943.1, GB/T14048.1, GB14536.1
- Test Object: PA66/PC engineering plastic, insulation board, EV connector shell, household appliance plastic parts, IT power supply housing, wiring harness insulation layer
3. Core Test Functions
- Standard 33A±5A high current arc generation, power factor COSφ0.5 adjustable
- 40 times/min fixed arc strike frequency, electrode separation speed 254±25mm/s
- 0~9999 times programmable arc strike cycles, auto stop after test finished
- Double electrode system: copper static electrode + stainless steel moving electrode

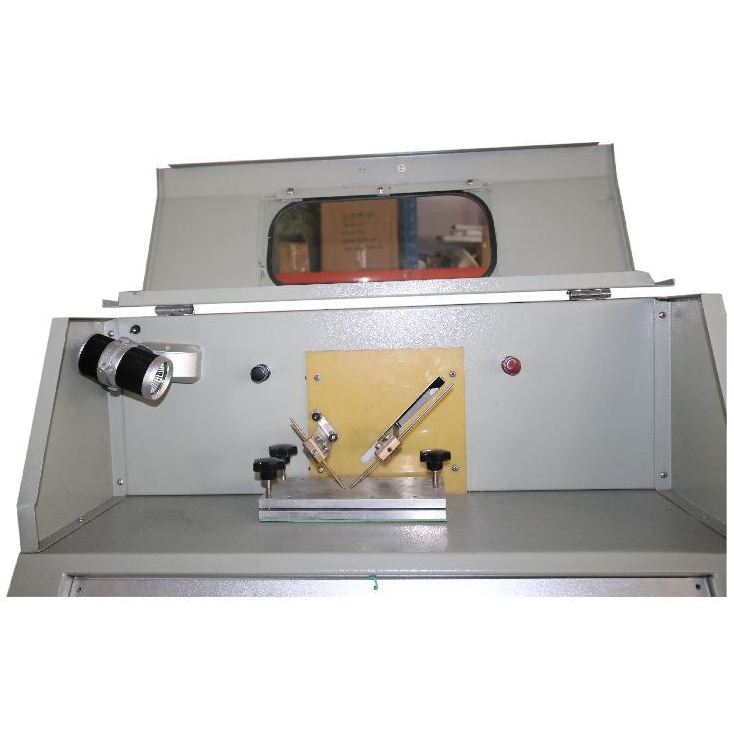

- Closed transparent observation test chamber with independent exhaust system
- Real-time test cycle counting, automatic record test data for certification report
- Overcurrent, overvoltage, over-temperature multi-layer safety protection, emergency stop button
