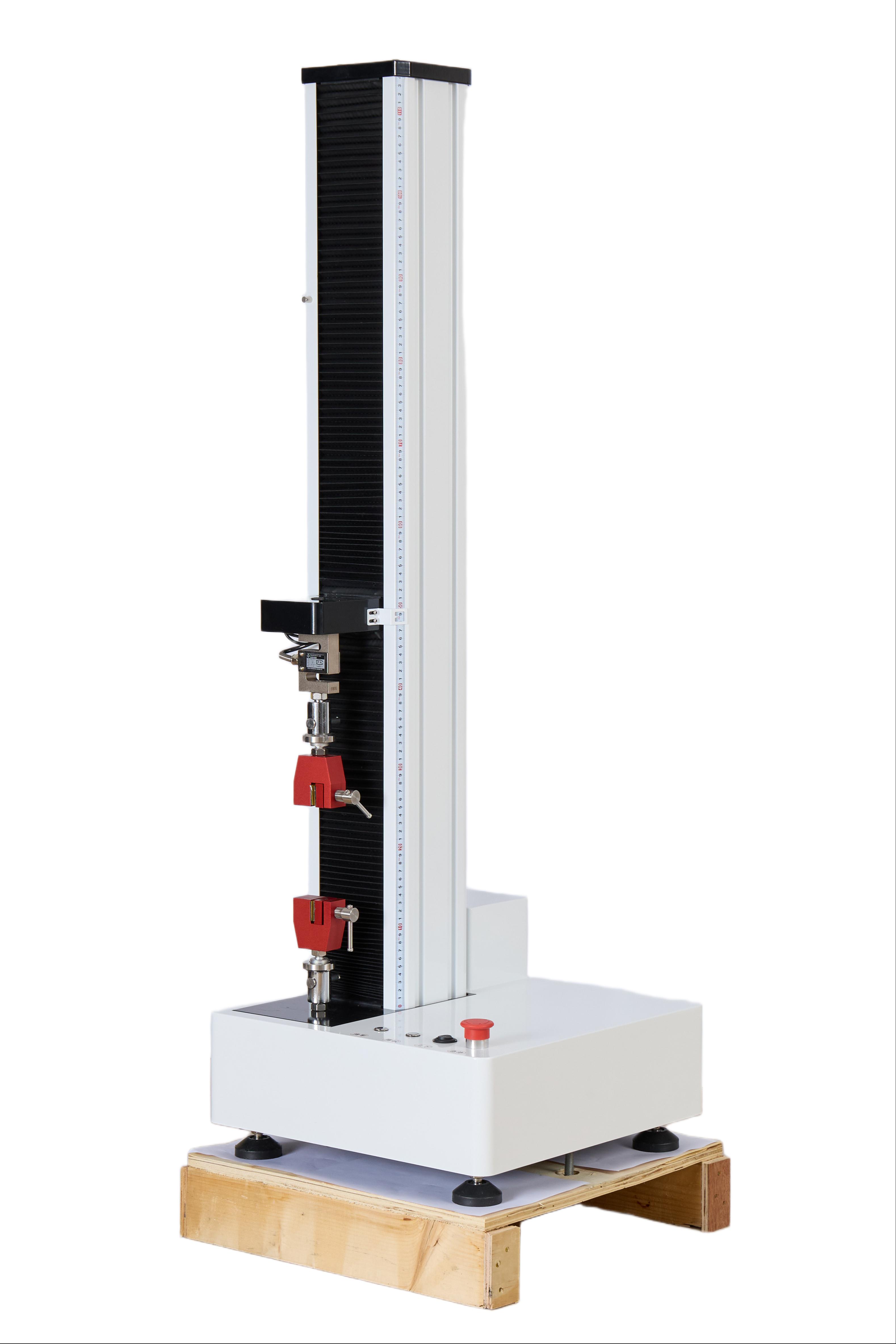

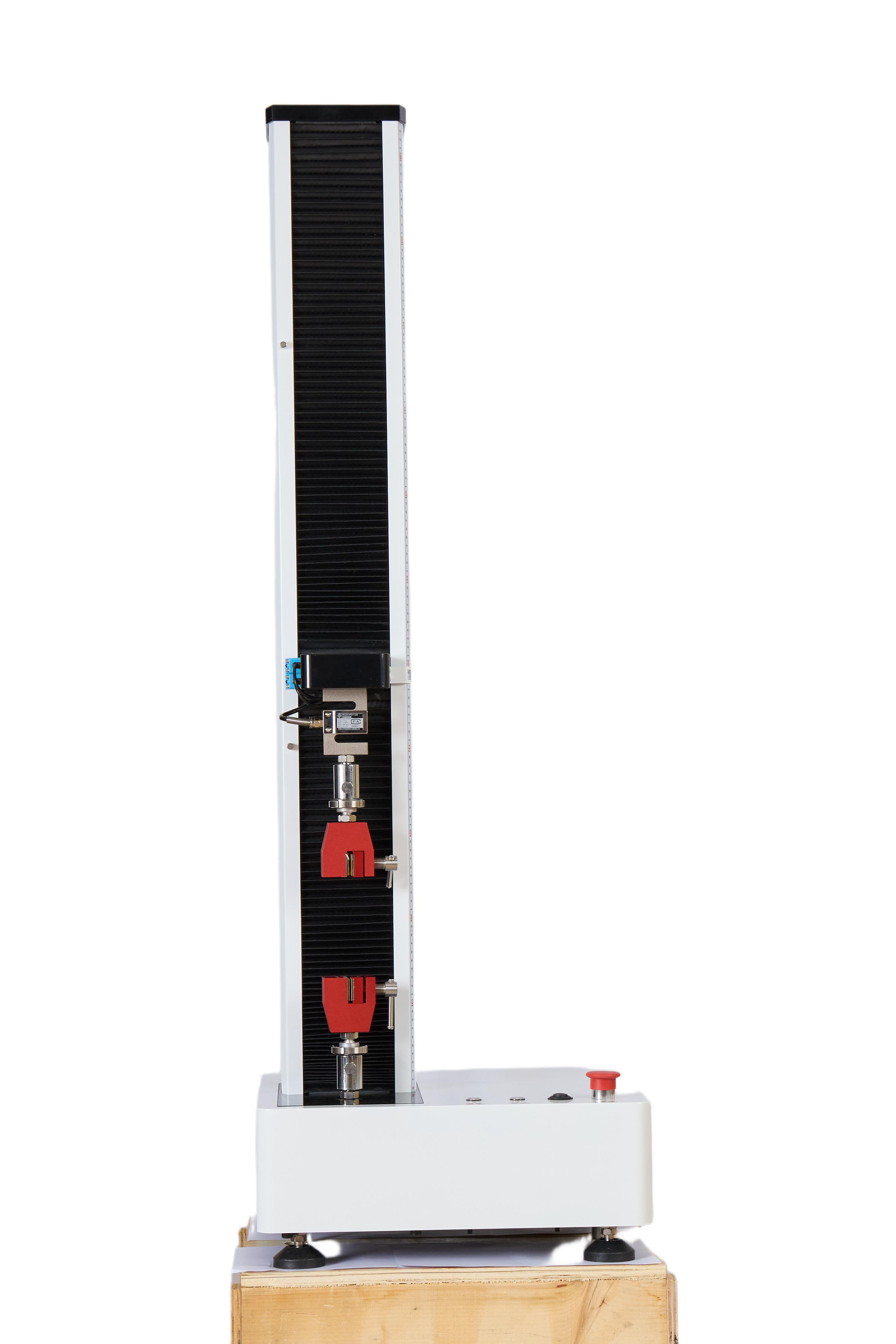

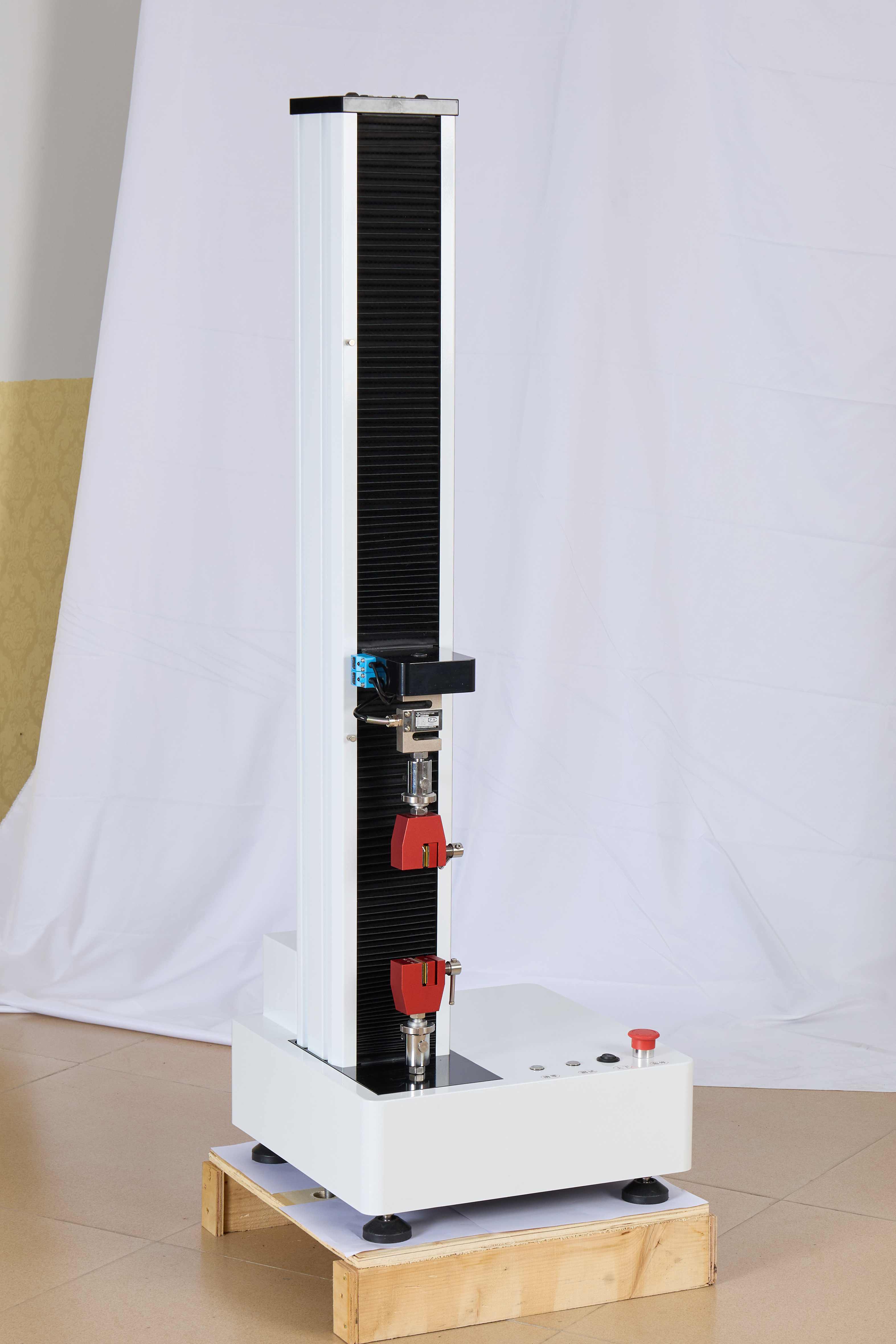

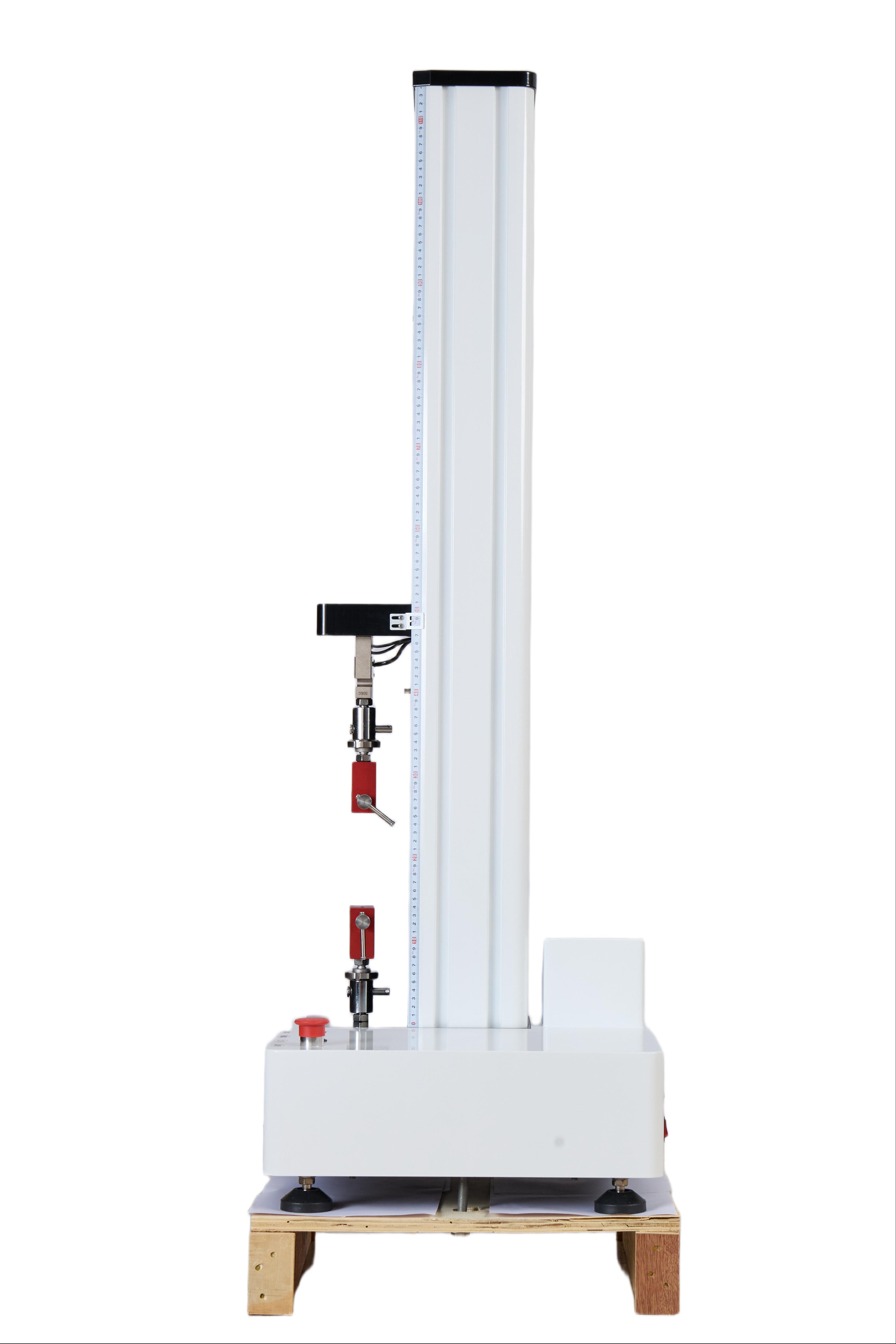

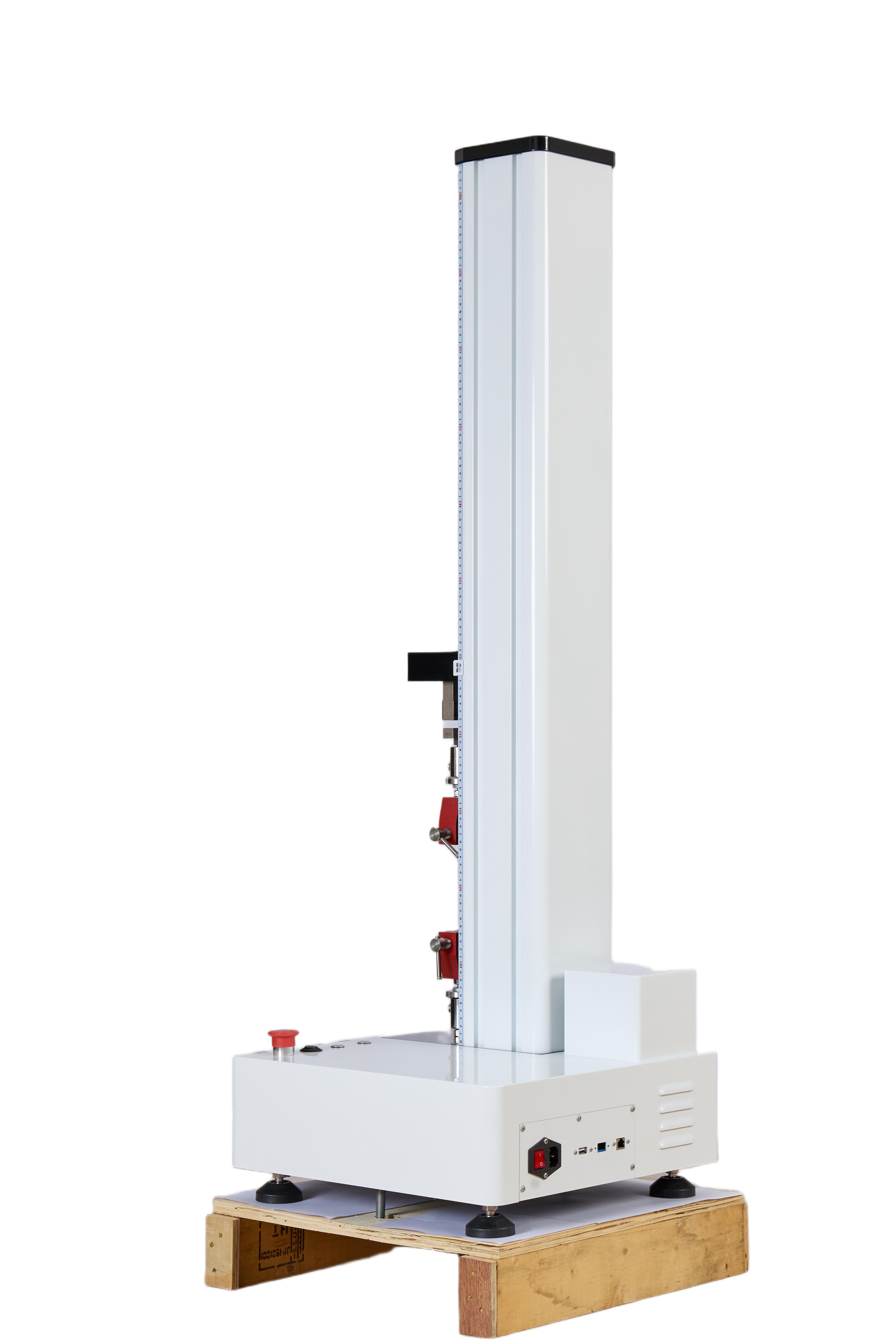

Microcomputer-Controlled Single-Column Desktop Tensile Testing Machine (500KG)

Microcomputer-Controlled Single-Column Desktop Tensile Tester (500KG)

1. Product Introduction

This microcomputer-controlled electronic universal testing machine has the characteristics of beautiful appearance, convenient operation, stable and reliable performance. The computer controls the rotation of the AC servo motor through the control system, and drives the high-precision ball screw to rotate after being decelerated by the reduction system, thereby driving the crossbeam to rise and fall, completing the tensile, compression, bending, shearing, 90°/180° peeling strength and other mechanical properties tests and analysis studies of metal and non-metallic samples. It can automatically obtain test parameters such as tensile strength, upper and lower yield strengths, elongation, non-proportional extension strength, and can conduct tests and provide data according to international standards such as GB, ISO, DIN, ASTM, and JIS. It is pollution-free, low noise, high efficiency, and has a very wide speed regulation range and crossbeam moving distance. It is an ideal testing equipment for factories, mines, scientific research institutes, quality supervision and other industries.

2. Applicable Standards - GB/T 16491-2022 "Electronic universal testing machine" - GB/T 228.1-2021 "Tensile testing of metallic materials - Part 1: Test methods at room temperature" - GB/T 1040.2-2022 "Determination of tensile properties of plastics Part 2: Test conditions for moulding and extruded plastics"

- Support GB, JIS, ISO, ASTM, DIN and other international standards

3. Core Technical Parameters 1. Maximum load capacity: 5000N (500KG) 2. Testing machine level: 0.5 level 3. Load test force accuracy: ±0.5% of the loaded force 4. Load test force range: 0.01-100%FS (full scale) 5. Displacement resolution: 0.00065mm 6. Beam speed range: 0.01~500mm/min 7. Stretching stroke: 700mm 8. Compression stroke: 800mm 9. Power supply: AC 220V 50Hz 10. Dimensions: 4504501350mm (approx.)

11. Weight: 60KG (approx.)

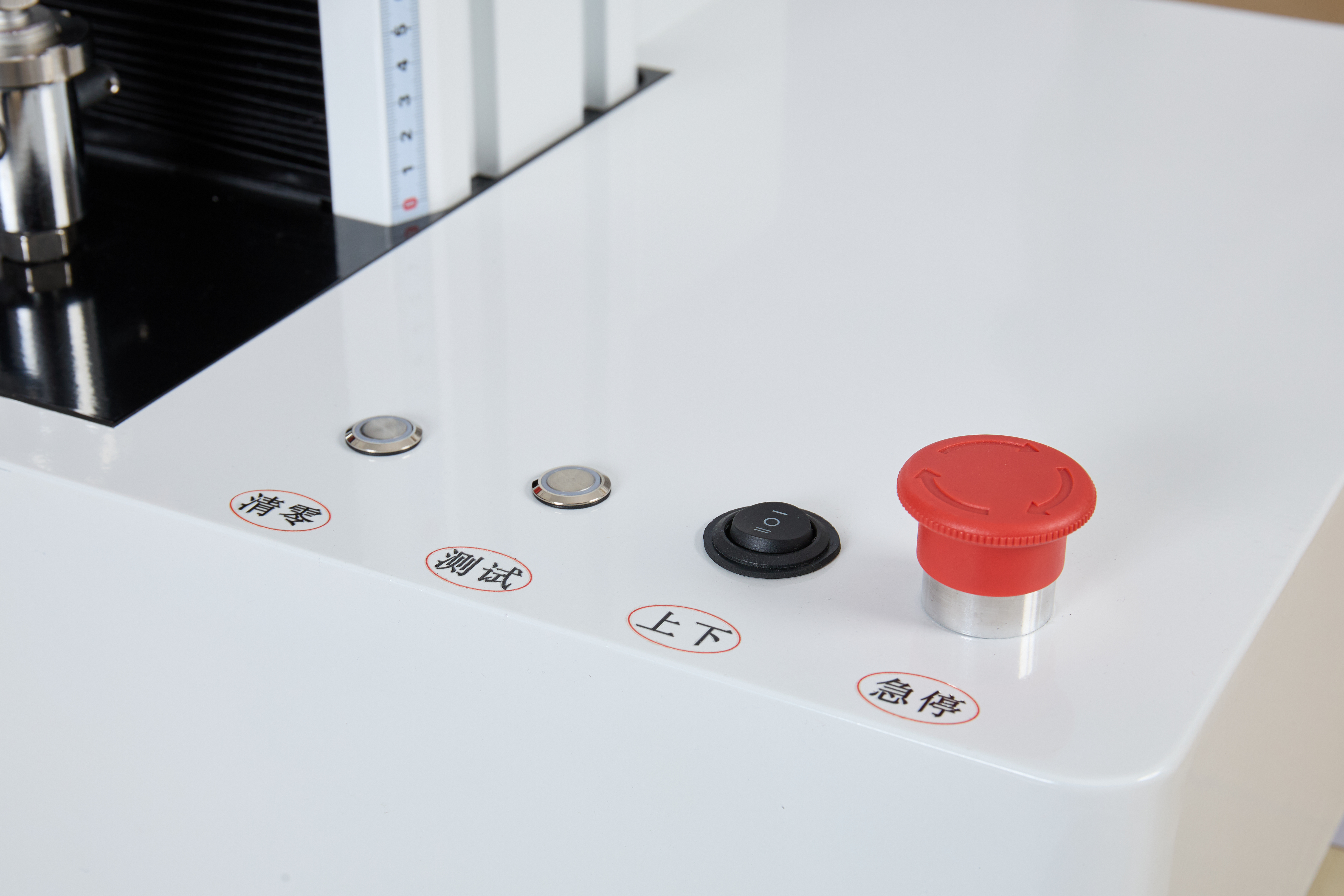

4. Main Features - Adopt AC servo speed regulation system and servo motor, with high speed regulation accuracy and stable performance - High-precision gapless ball screw and guide rod, ensure sufficient rigidity and high coaxiality - Multiple safety protections: beam displacement limit protection, overload protection, broken shutdown protection - Windows-based control software, support Chinese and English interface, easy to operate - Support automatic zeroing, automatic return, automatic shifting, automatic saving, automatic speed change

- Test process, measurement, display, analysis are all completed by microcomputer, support result reproduction, curve traversal, result comparison, batch test

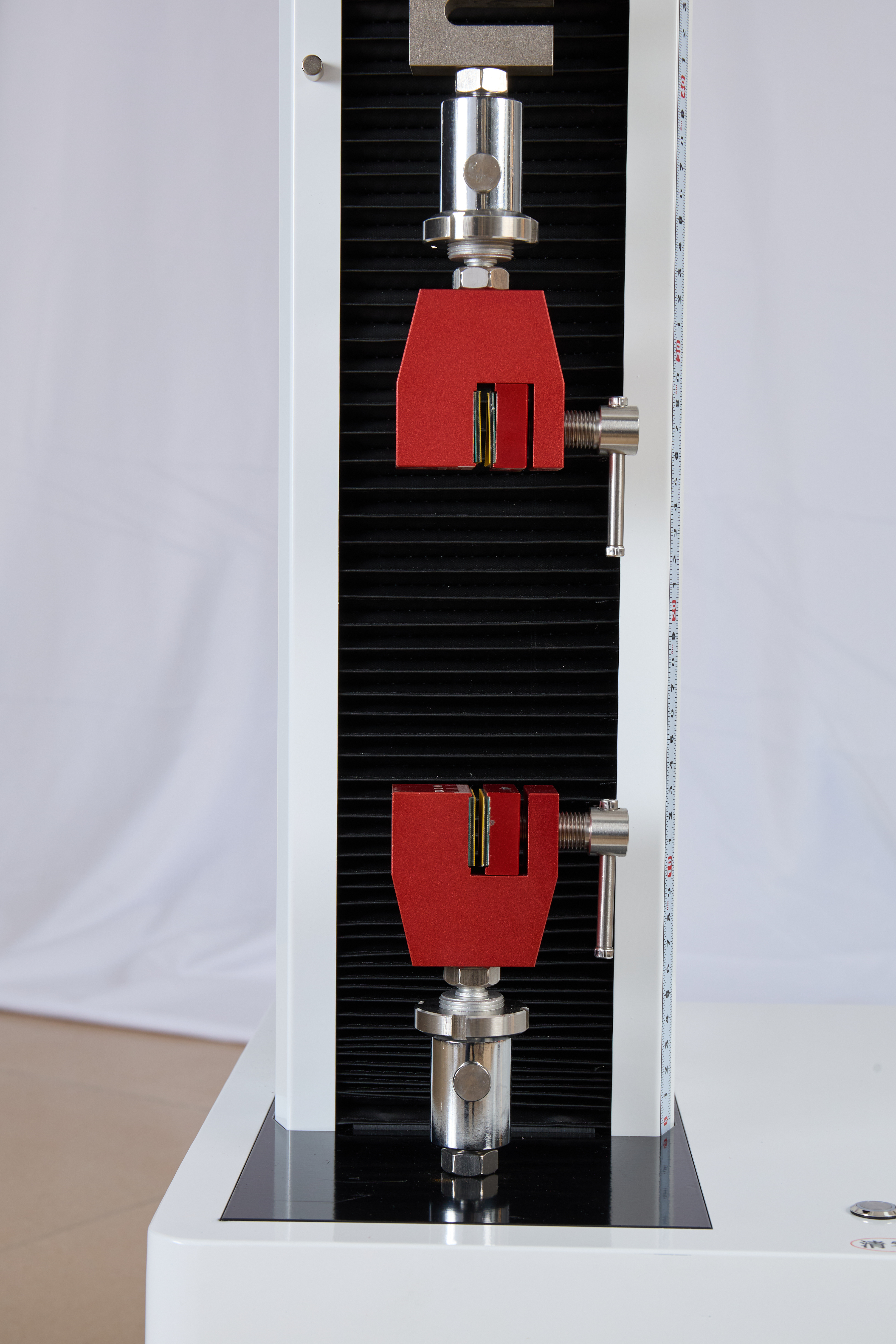

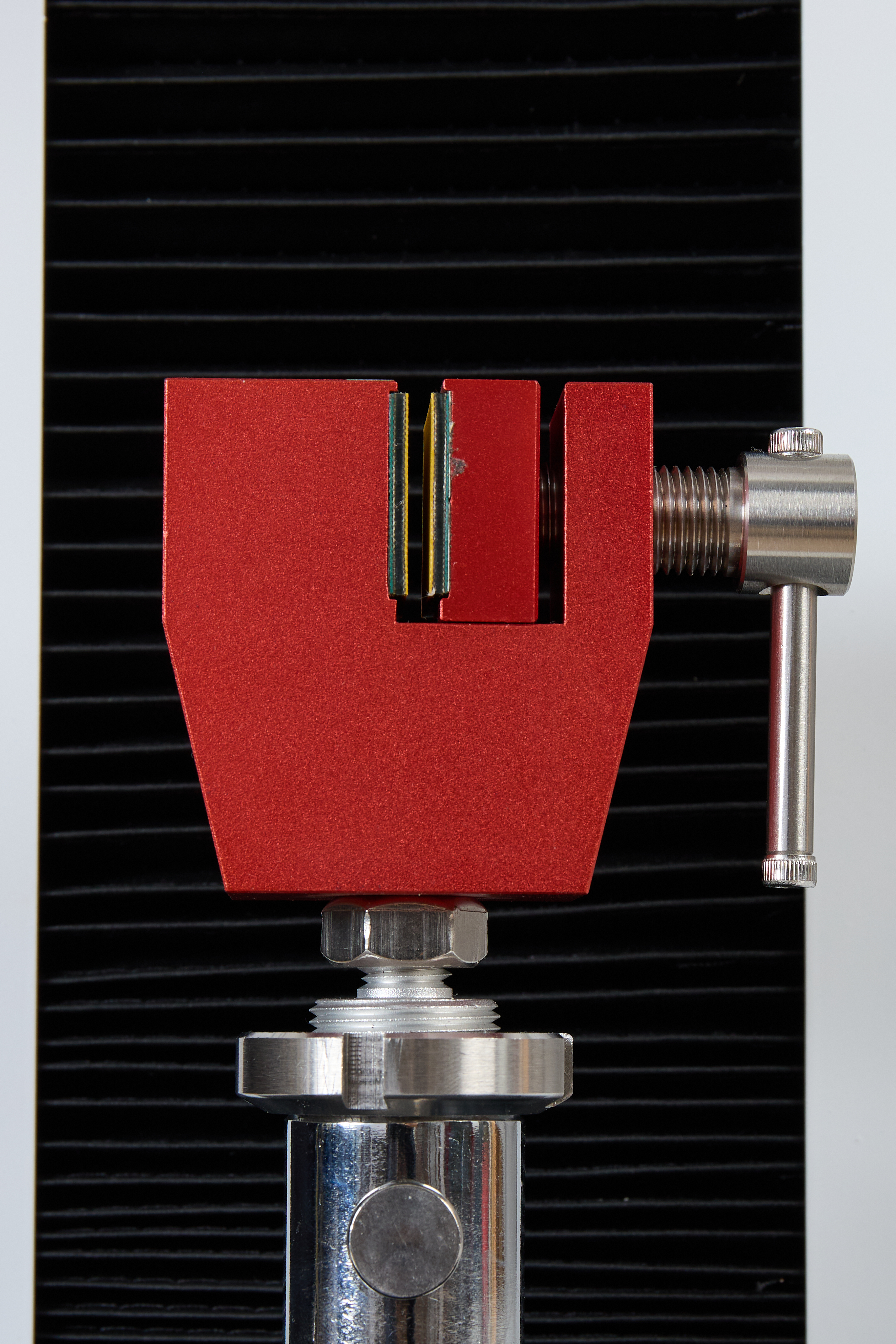

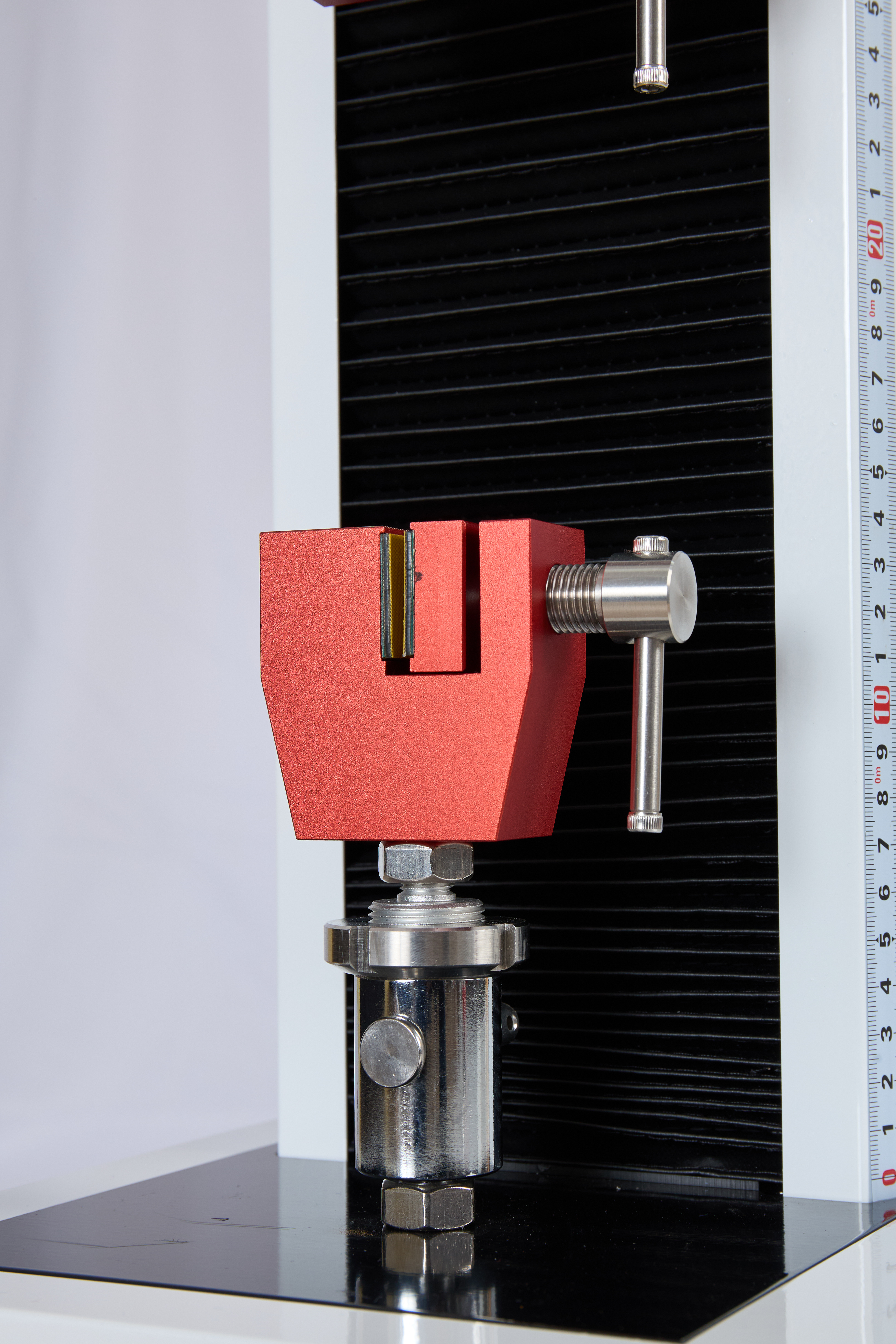

5. Standard Accessories 1. Testing machine host (1 unit) 2. Servo motor and driver (1 set) 3. Force Sensors (1 set) 4. Ball Screw (1 set) 5. Product Instructions, Packing List, Certificate (1 set each) 6. Tensile fixture (2 pcs) 7. 220V power cord and network cable (1 each) 8. USB flash drive (including software) (1 pcs)
