Microcomputer-controlled Double-column Floor-standing Tensile Testing Machine (2T/20KN)

Microcomputer-controlled Double-column Floor-standing Tensile Testing Machine (2T/20KN) Model:HNS2103A-20

1. Product Introduction This microcomputer-controlled electronic universal testing machine features elegant appearance, easy operation and stable reliable performance. The system controls AC servo motor rotation, transmits via deceleration structure to drive high-precision ball screw, lifting the middle crossbeam. It completes tensile, compression, bending, shearing, 90°/180° peel strength tests for metal and non-metal specimens. It automatically calculates tensile strength, upper/lower yield strength, elongation, non-proportional extension strength (ReH, ReL, Rp0.2, Fm, Rt0.5, Rm, E). It supports testing & data output per GB, ISO, DIN, ASTM, JIS standards. Pollution-free, low noise, high efficiency, wide speed & stroke range. Suitable for steel, sheet strip, aluminum alloy, copper, titanium alloy and non-metal material inspection, ideal equipment for factories, mines, research institutes and quality supervision departments.

Equipped with high-precision AC servo drive system; database-based test software runs on Windows7 and above. Real-time display of test force, peak force, beam displacement, speed, specimen deformation & test curve. All operations via mouse with friendly bilingual human-machine interface.

2. Applicable Standards

1. GB/T 16491-2022 Electronic universal testing machine

2. GB/T 228.1-2021 Tensile testing of metallic materials - Part 1: Room temperature test method 3. GB/T 1040.2-2022 Plastics-Determination of tensile properties Part2: Mould & extruded plastic test conditions 4. Compatible standards: GB, JIS, ISO, ASTM, DIN

5. Packaging & transport standard: GB/T13384-1999

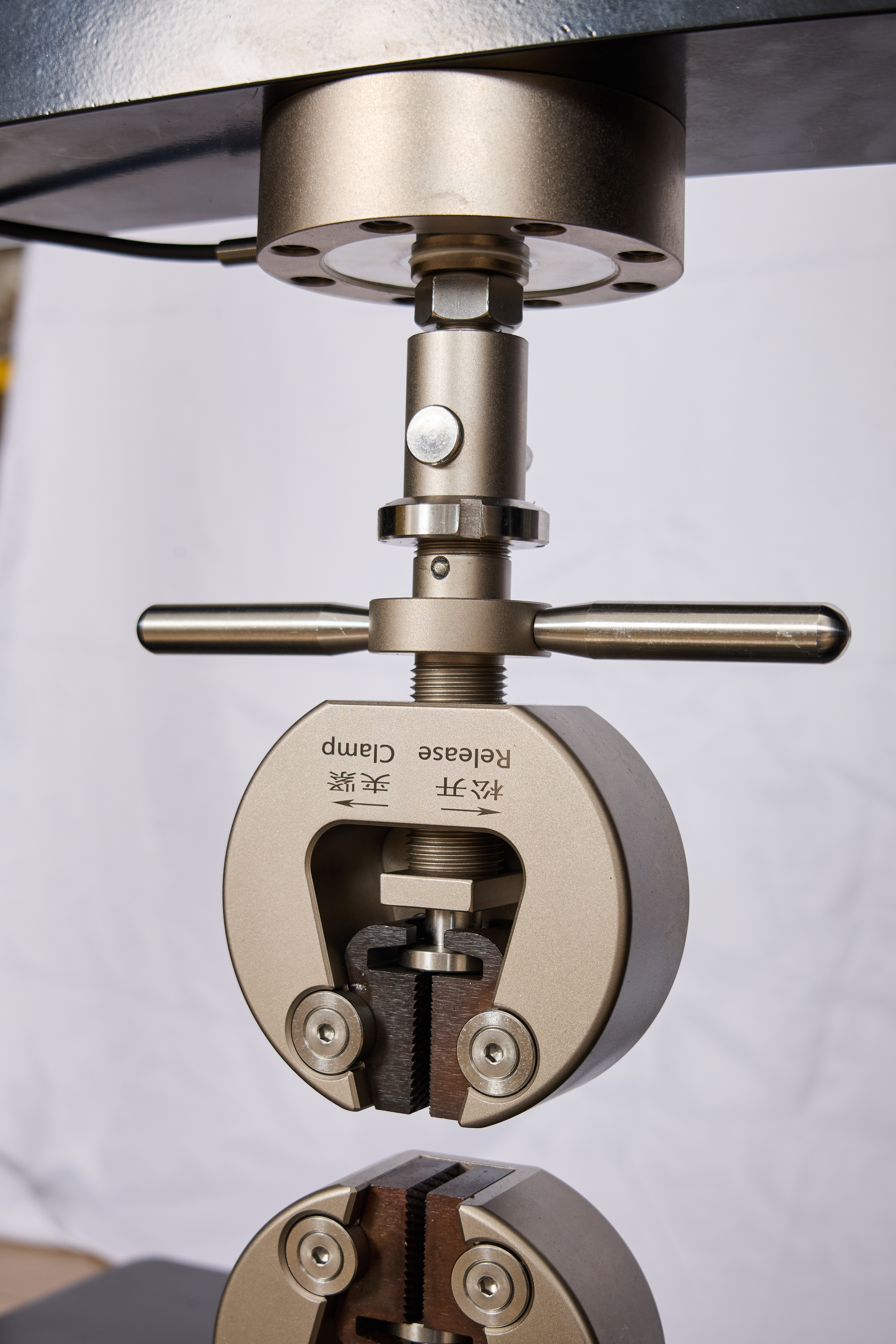

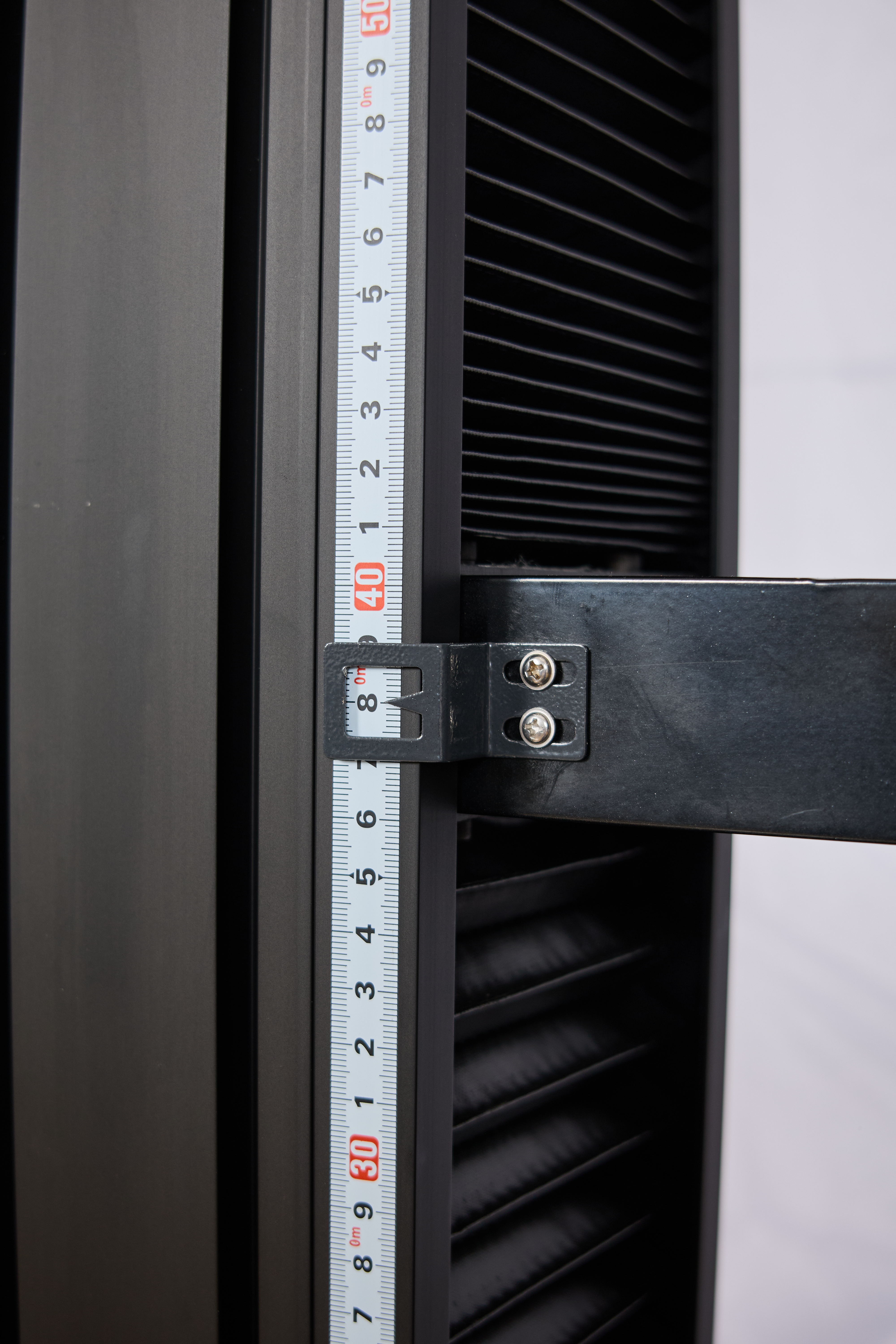

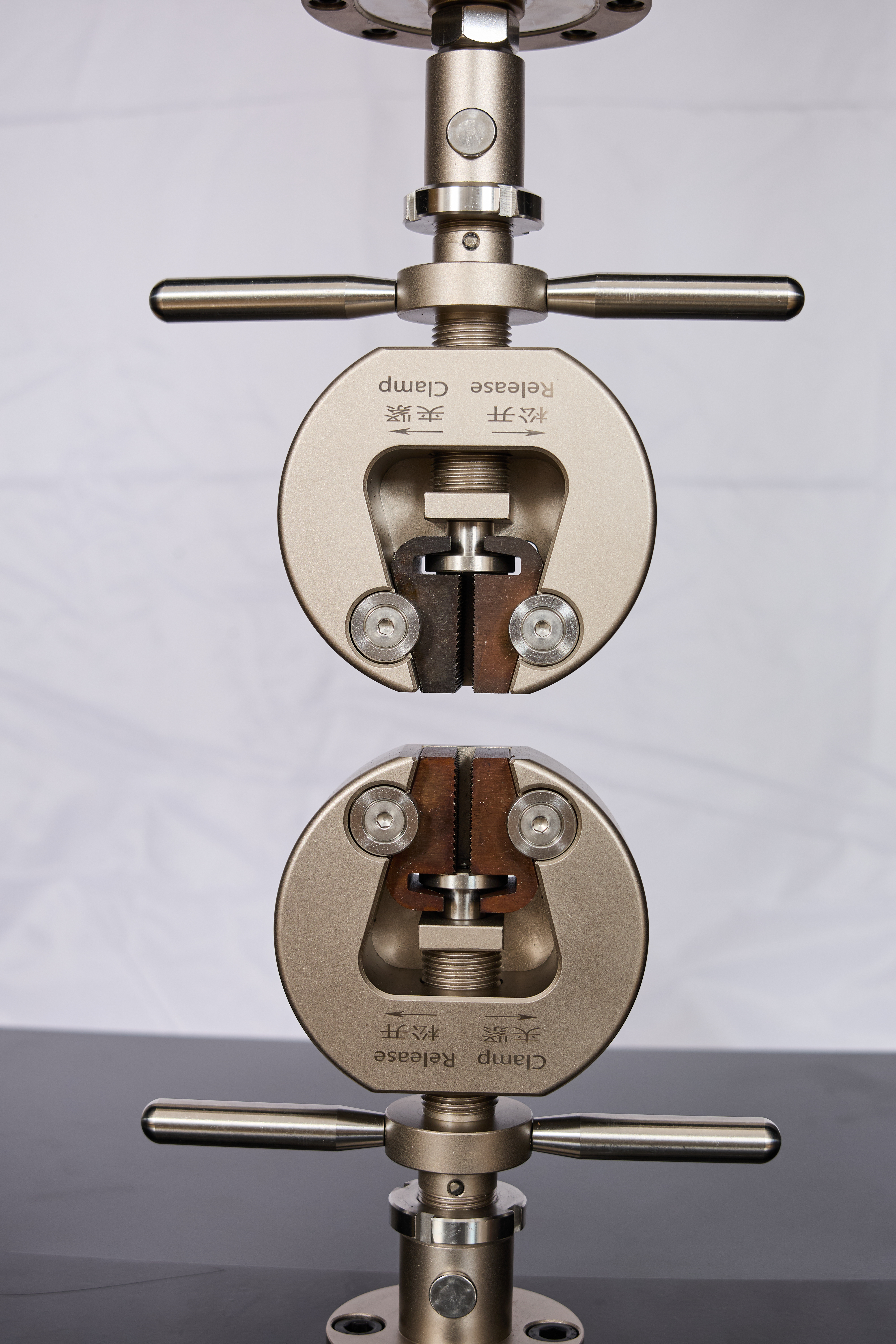

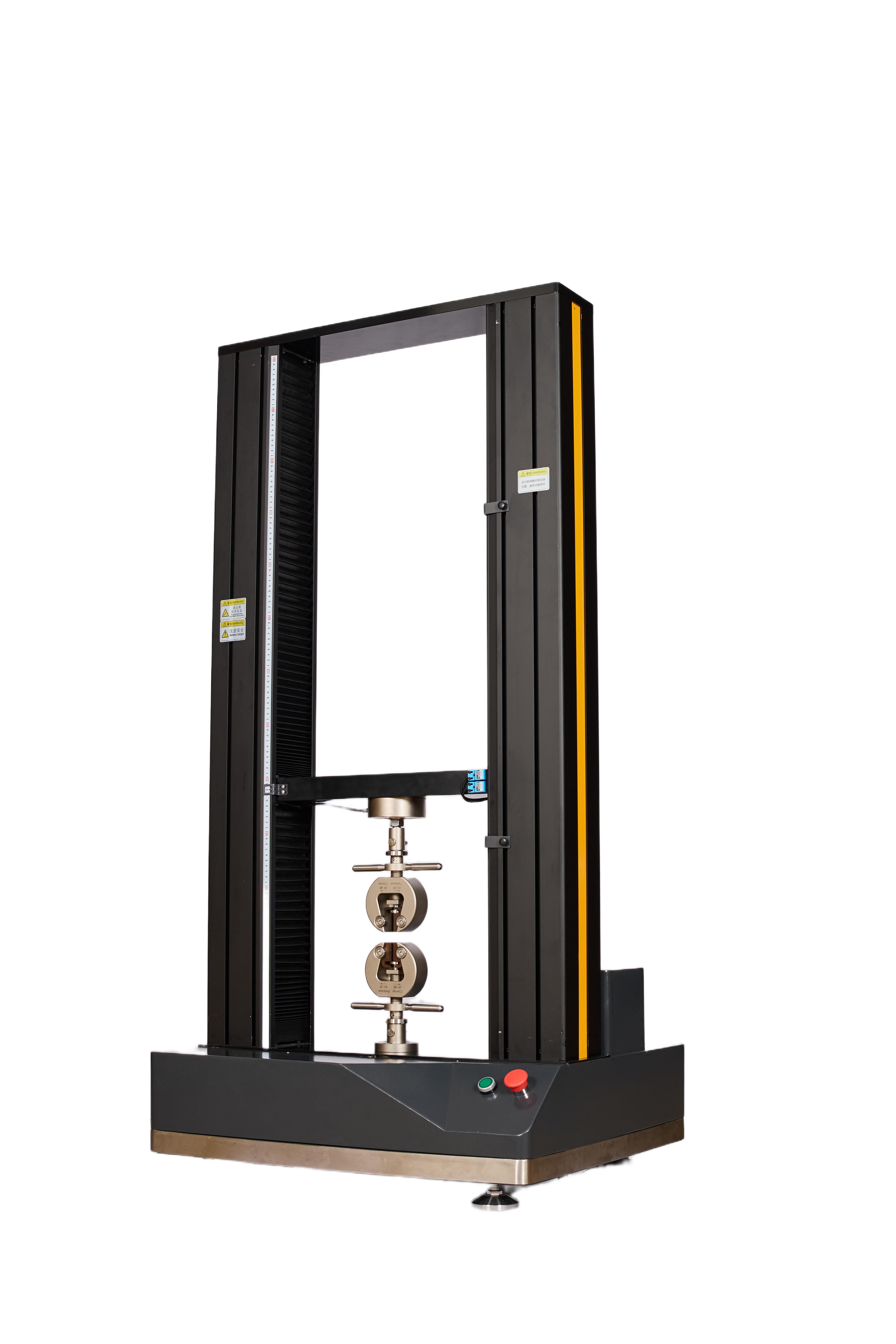

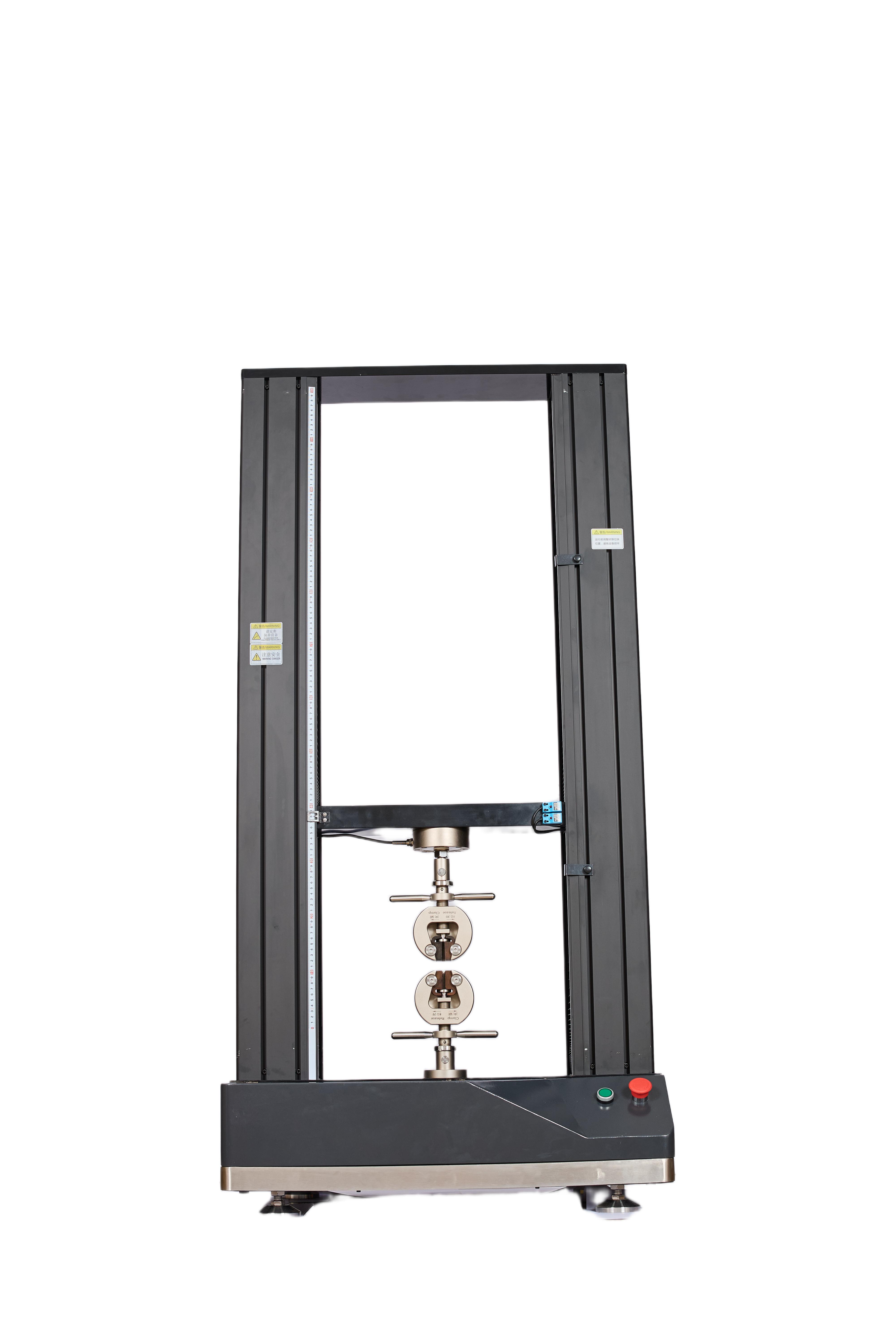

3. Main Structure & Features 1. Main Host: Double-column floor-standing frame with upper/middle/lower beam & guide columns, double-space pull-down & press-down design. High-precision gapless ball screw & guide rod, high rigidity and coaxiality, safe and beautiful. 2. Multi Safety Protection: Beam travel limit, overload protection, auto-stop on specimen breakage. 3. Transmission System: AC servo motor + arc tooth synchronous belt reducer, driving ball screw. Stable loading, silent rolling transmission, high positioning accuracy, maintenance-free, no clearance during beam movement. 4. Measurement & Control System: Windows7 Chinese platform, full-digital PC control card, dual-channel signal amplification, multi-channel I/O & photoelectric displacement sensor, stable and advanced hardware & software. 5. Intelligent Test Software Functions • Auto zeroing: measurement system auto reset after test start command • Auto return: crossbeam quickly returns to origin after sample fracture detection • Auto range shift: switch load range automatically to guarantee data precision • Auto data save: store test parameters to avoid loss from power failure • Auto speed adjustment: change beam speed by preset program or manual operation • Auto calibration: system self-calibrate force indication accuracy • Full computerized test flow: measurement, display, data analysis completed by PC • Chinese & English bilingual operation interface, menu prompt & mouse operation • Dynamic real-time display of data & test curves • Result replay: store and re-analyze historical test curves • Curve point traversal: mouse pick arbitrary force & deformation data on curve • Multi-curve comparison: overlay multiple sample curves in different colors for batch analysis • Custom curve display: select stress-deformation, force-time curve for print & preview • Batch testing: continuous test for same-parameter samples with one-time setup

• Custom test report: edit & print report per user-specified format

4. Core Technical Parameters 1. Max load capacity: Optional 10KN / 20KN(2Ton) 2. Precision grade: 0.5 level 3. Force accuracy: ±0.5% of actual applied force 4. Force measuring range: 0.01%~100% full scale 5. Displacement resolution: 0.00065mm 6. Displacement accuracy: ±0.5% of indicated value 7. Crossbeam speed range: 0.01~500mm/min 8. Speed accuracy: ±1.0% when speed＜1.0mm/min; ±0.5% when speed≥1.0mm/min under no-load 9. Tensile stroke: 850mm (including tensile fixture) 10. Compression stroke: 900mm (including compression fixture) 11. Effective test width: 450mm 12. Data acquisition frequency: 40Hz 13. Communication: Ethernet port 14. Power supply: AC 220V 50Hz, total power 1.0KW 15. Operating environment: Temperature: Room temp ~50℃; Humidity:20%~80%RH 16. Overall dimension: Approx.7706601565mm

17. Net weight: Approx.200KG

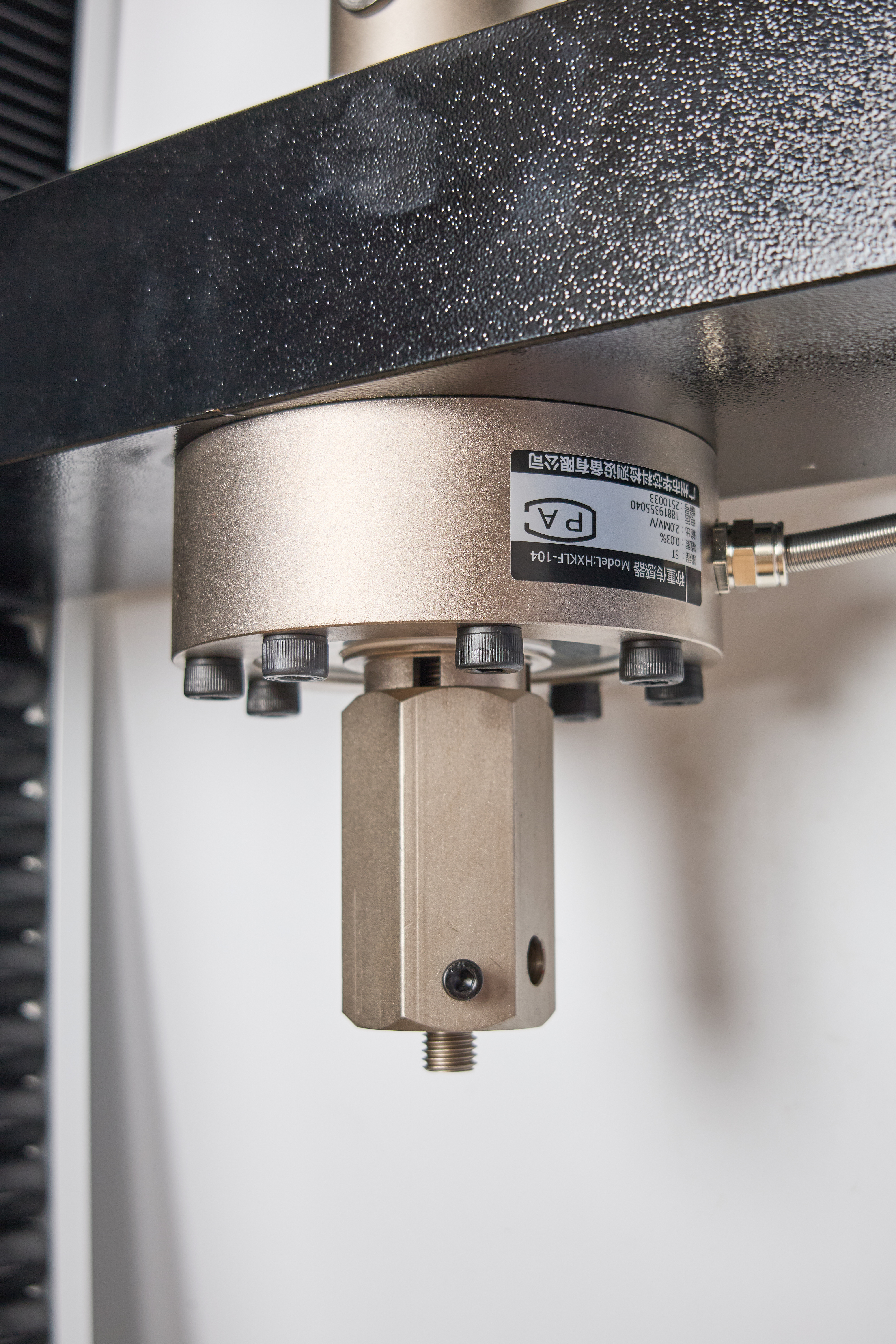

5. Standard Accessories List 1. Testing machine main host ×1 set 2. Servo motor & driver (Shanghai Fanyi brand) ×1 set 3. Force sensor (Ocean sensing) ×1 piece 4. Taiwan HIWIN ball screw ×1 set 5. Product operation manual ×1 copy 6. USB flash disk (pre-installed test control software) ×1 piece 7. Manual control box ×1 unit Optional spare parts: Desktop computer, printer
