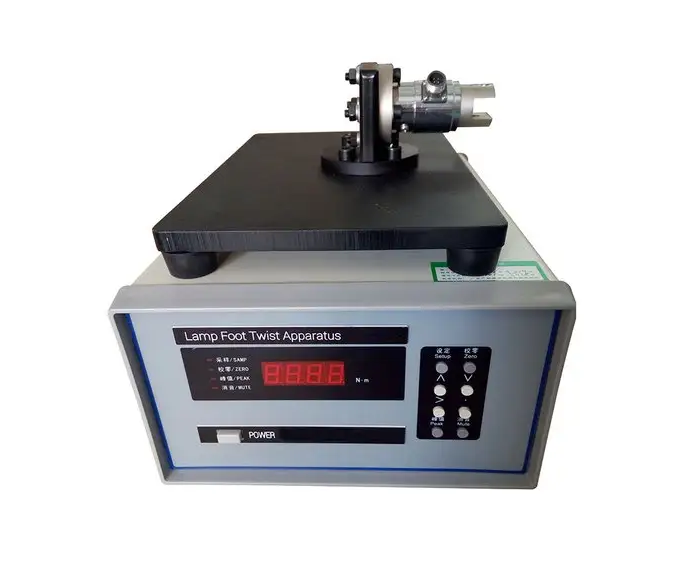

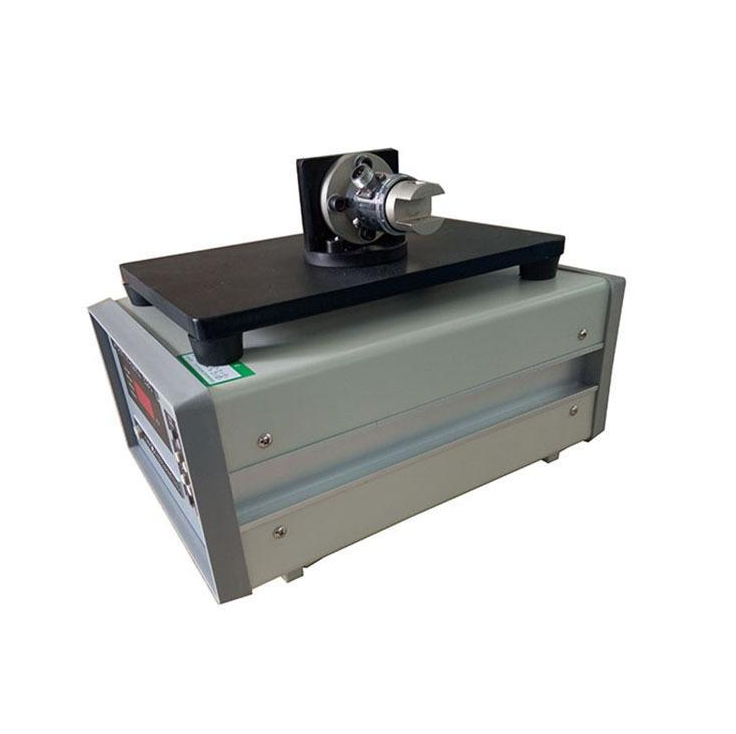

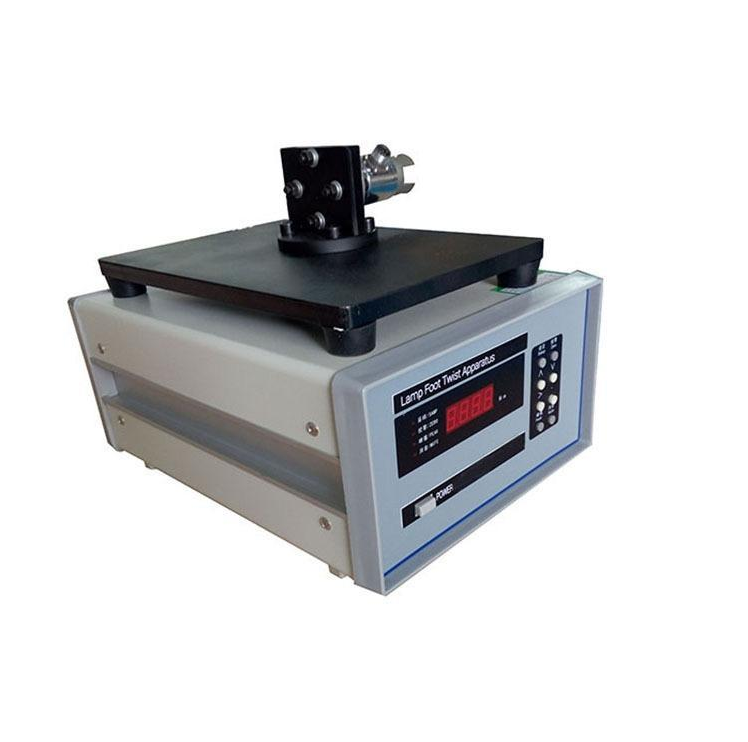

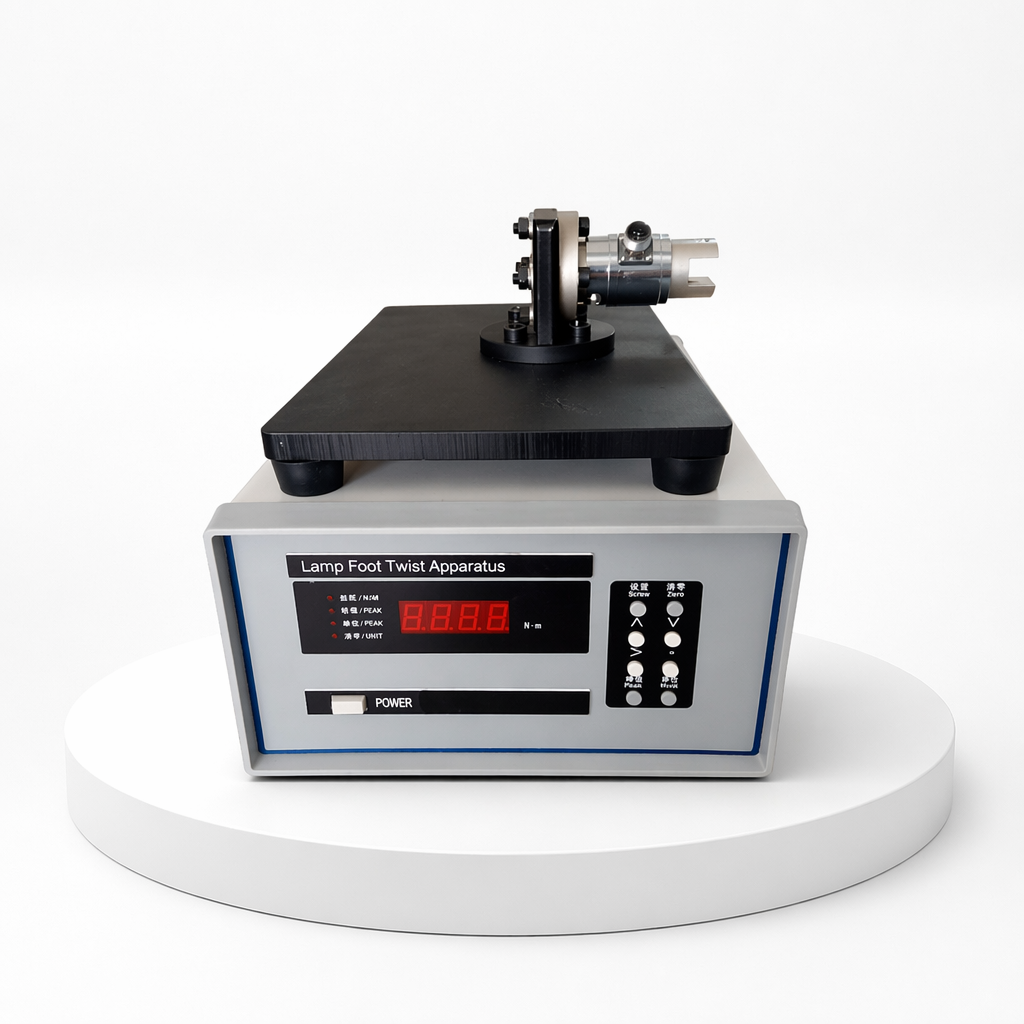

Digital Lamp Holder Torque Tester Comply With IEC60598 Standard

Product Introduction

Application Scope

• All kinds of lighting manufacturers, LED lamp factories, energy-saving lamp production lines
• Third-party electrical product certification laboratories, quality inspection departments
• Test E10, E14, E26, E27, B15, B22, E40 screw & bayonet lamp holders

Main Technical Parameters

1. Torque measuring range: 0~10 N·m, precision ≤1%FS
2. Support clockwise & counter-clockwise bidirectional torque test
3. Peak torque lock function, upper limit preset automatic alarm

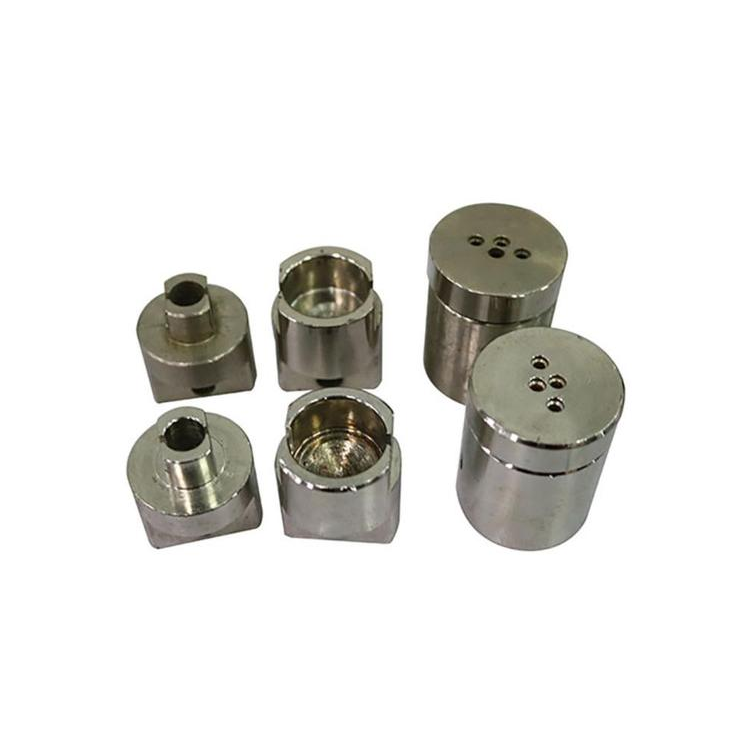

4. Standard matched multi-size lamp cap fixtures for quick replacement
5. Digital LCD real-time torque value display, data storage function
6. Stable all-metal test bench, anti-vibration base for long-time continuous test

Core Product Features

1. Fully meet IEC60598-1 luminaire safety test requirements, support international certification test reports
2. High precision strain gauge torque sensor, stable test data and high repeatability
3. Digital intelligent control panel, simple one-click operation without complex adjustment
4. Multiple interchangeable stainless steel lamp cap fixtures, cover mainstream lamp holder specifications
5. Compact integrated structure, easy movement and maintenance, small floor space
6. Complete overload protection function to avoid equipment damage during test

Complied Test Standard
