IPX5/IPX6 Test Nozzle | Precision Water Jet Spray Nozzle Compliant With IEC 60529 Standard

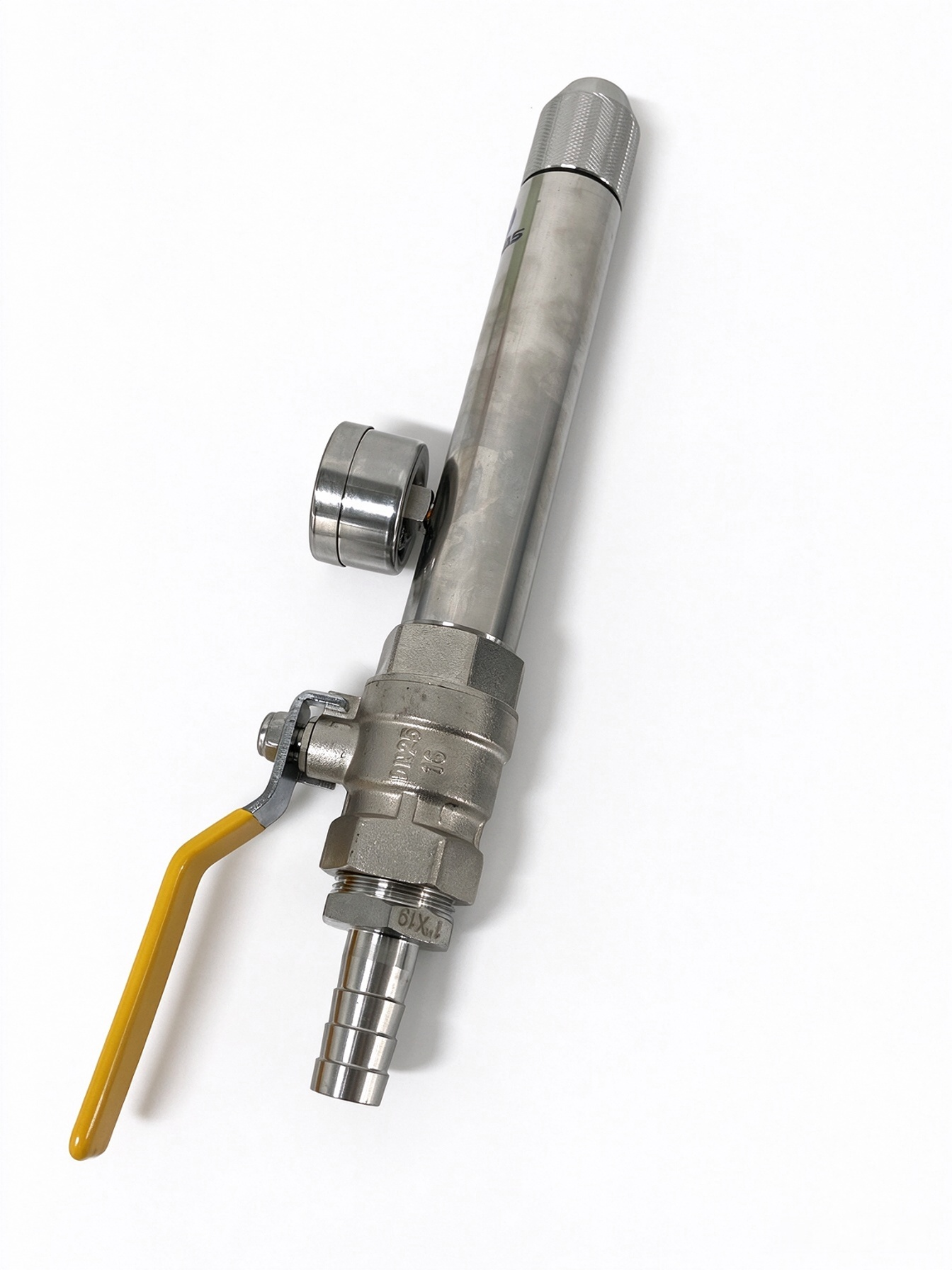

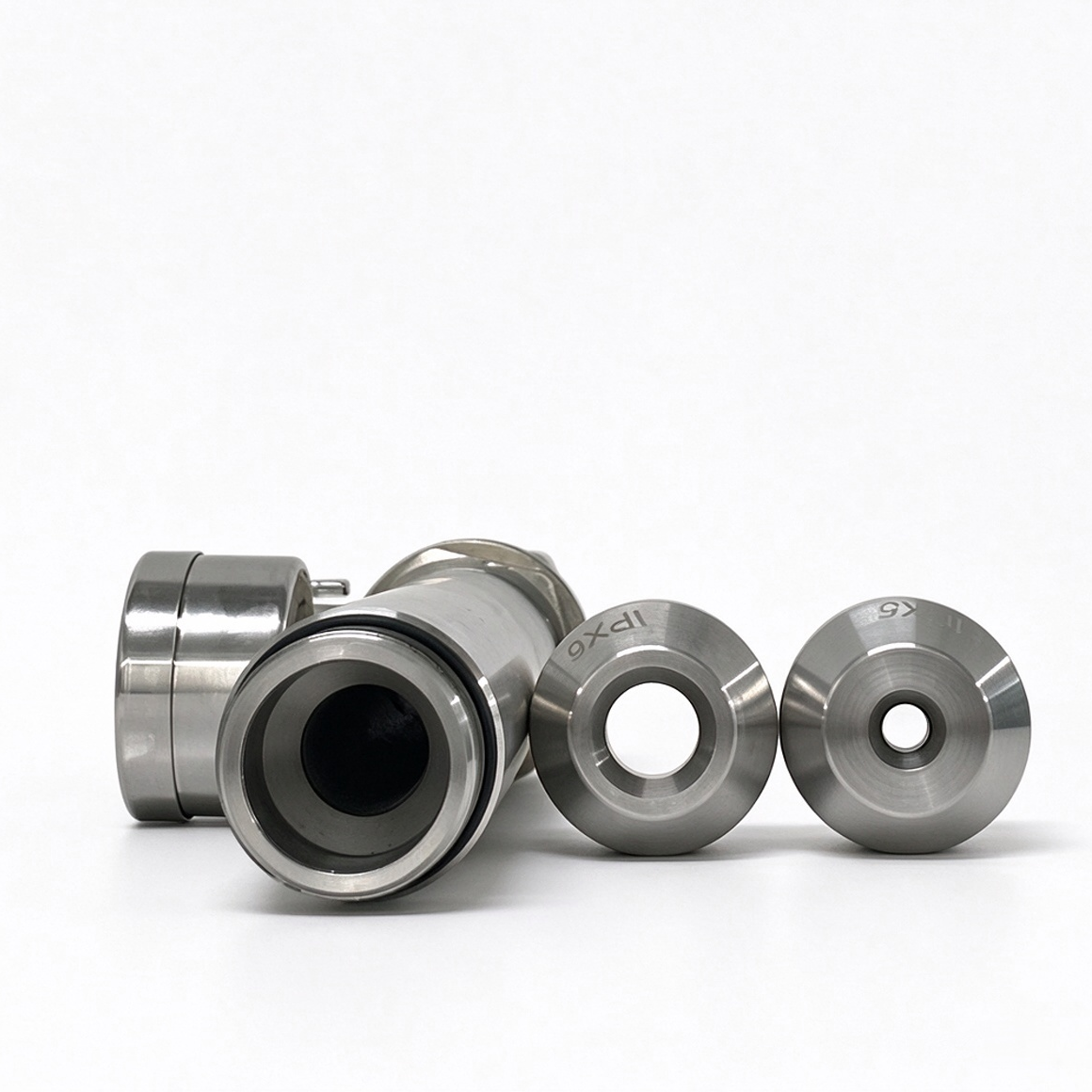

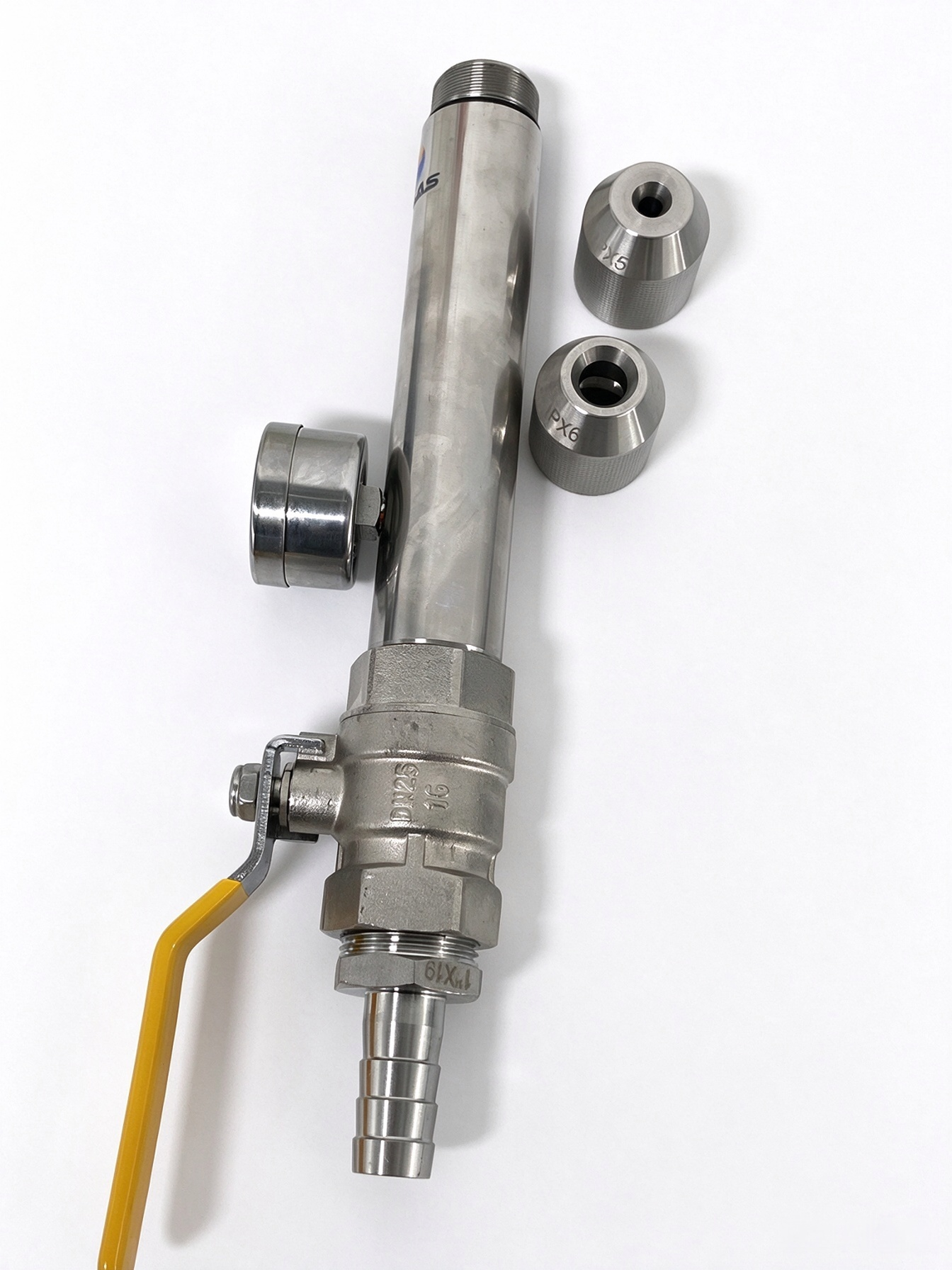

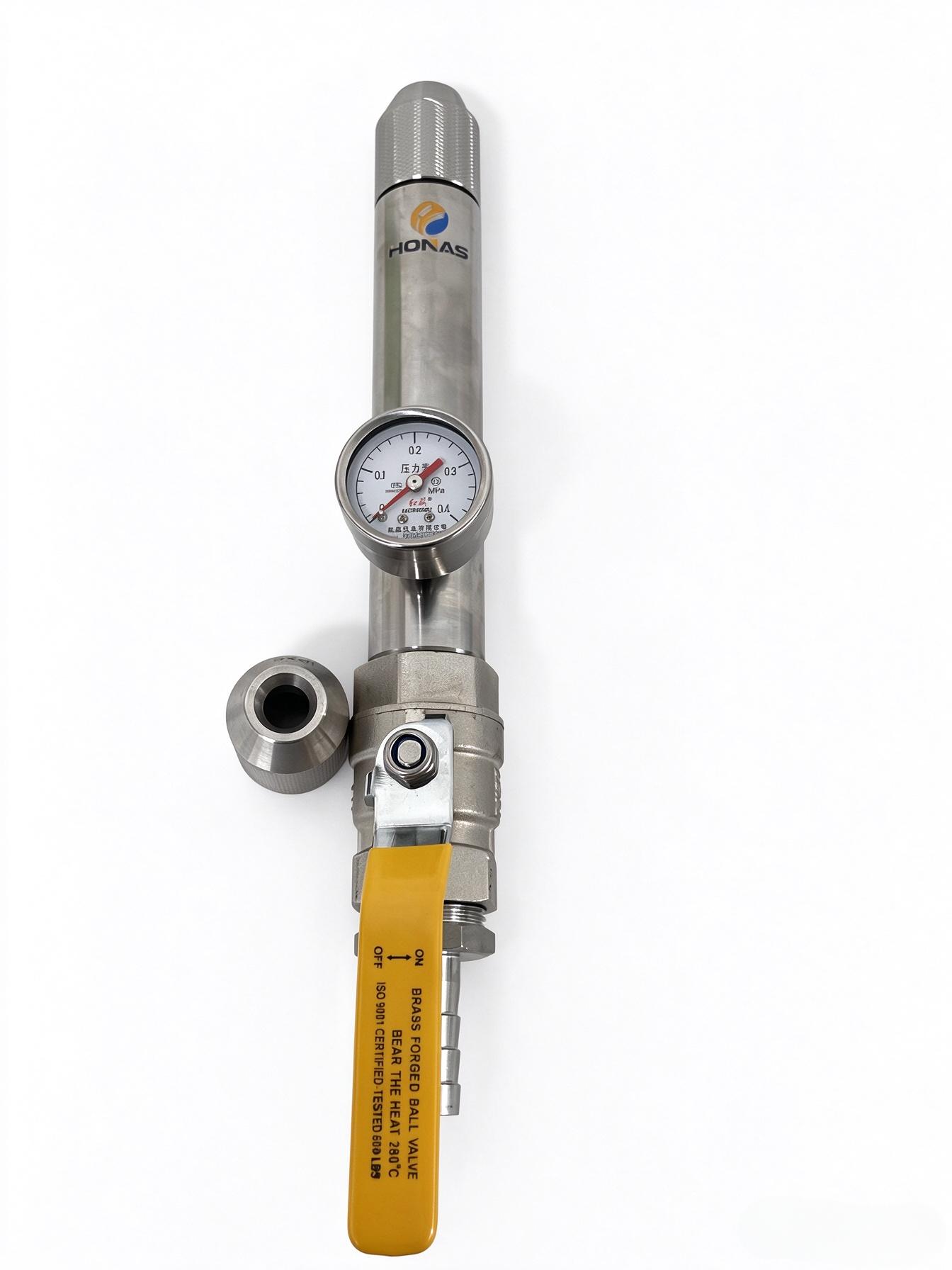

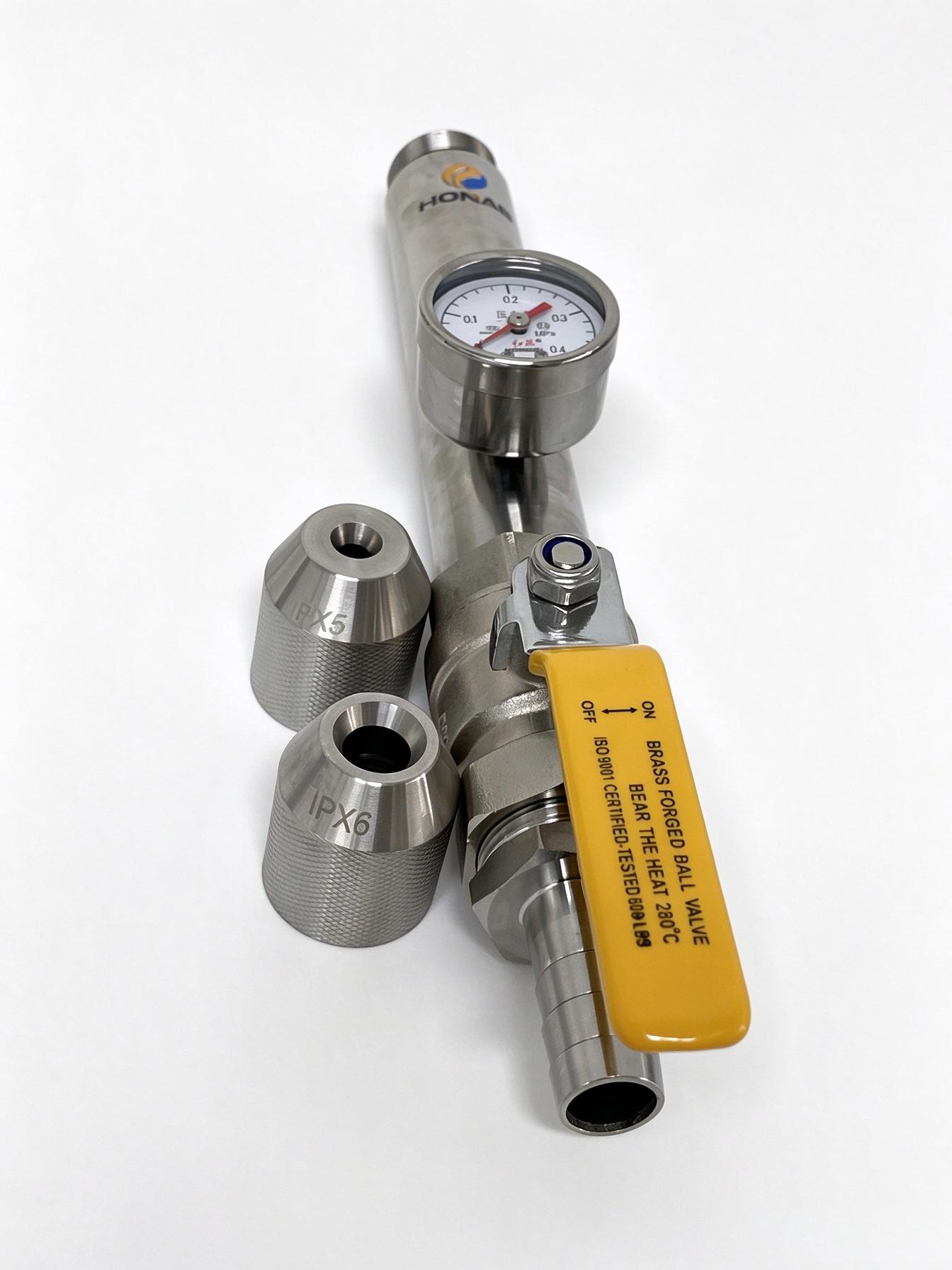

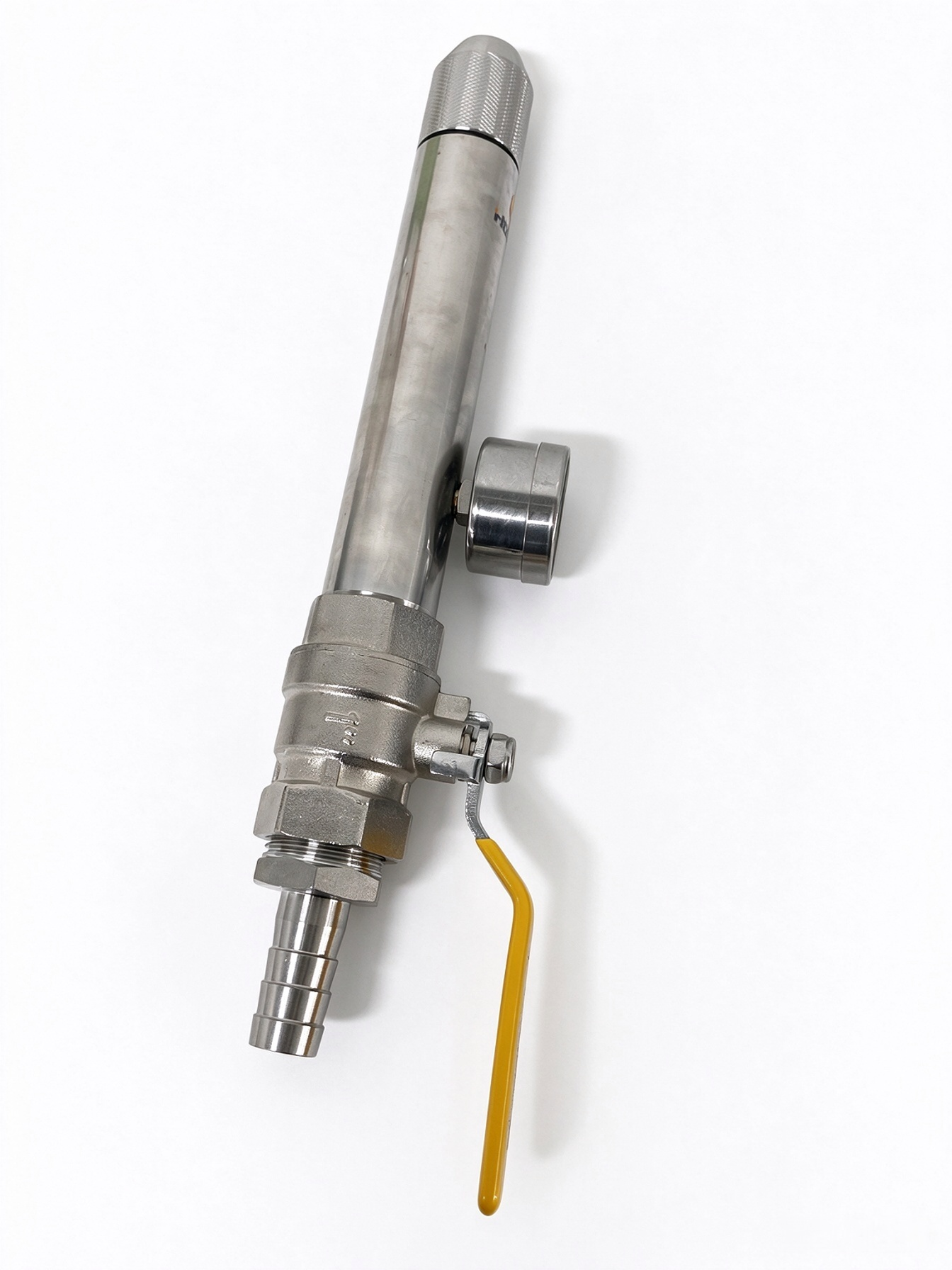

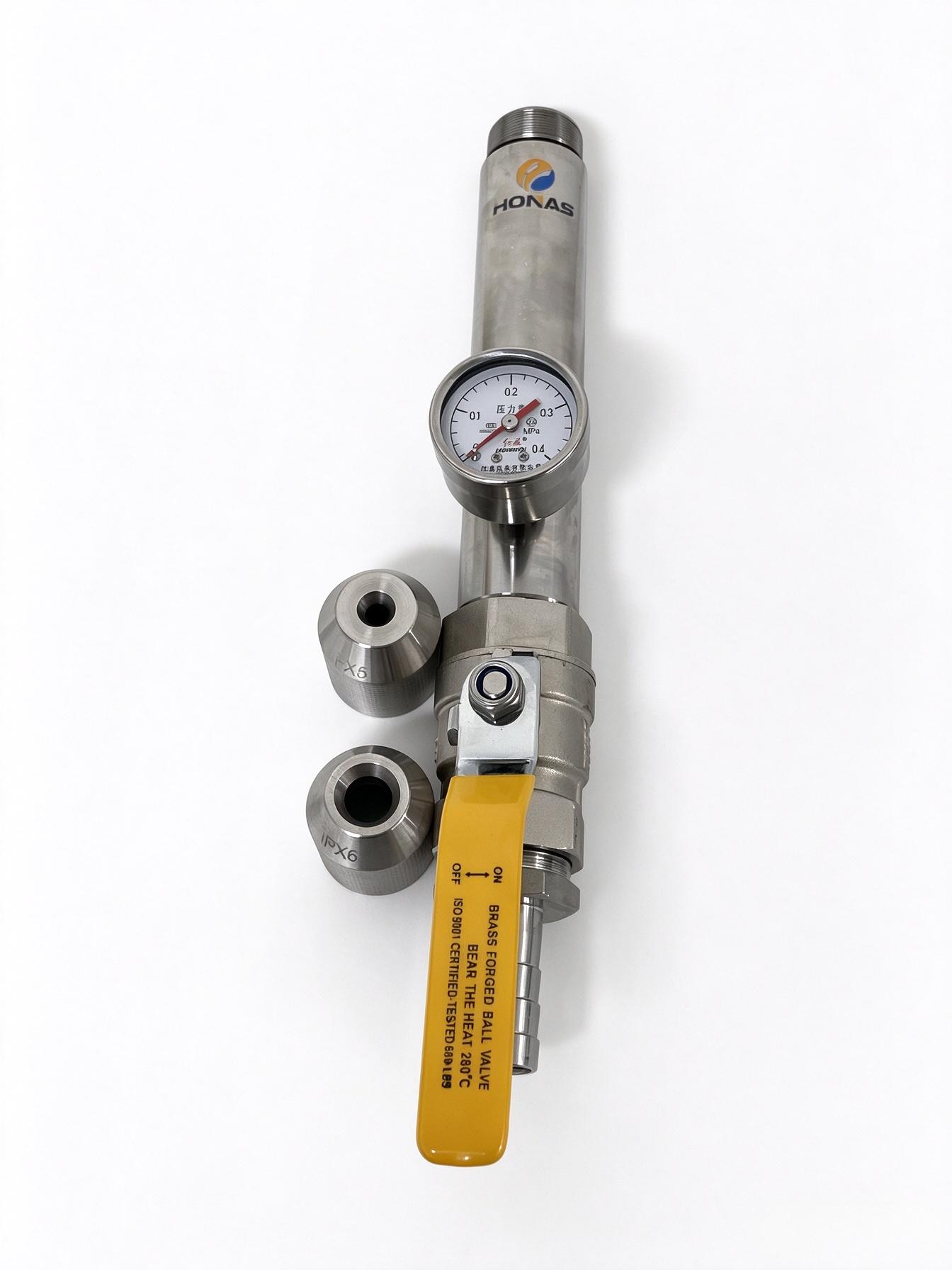

This IPX5/IPX6 test nozzle is designed for water jet tests in accordance with IEC 60529 standard, suitable for electrical
enclosures, outdoor products, luminaires, household appliances and industrial equipment. It includes dedicated IPX5 and IPX6 nozzles, a spray handle, a pressure gauge and a flow meter for controlled water jet testing.
* Applicable Standard: Water jet tests to IEC 60529 (IPX5 and IPX6)
* Test Objects: Electrical enclosures, outdoor equipment, luminaires, household appliances and waterproof products
* IPX5 Nozzle: Inner diameter 6.3 mm, flow rate 12.5 L/min
* IPX6 Nozzle: Inner diameter 12.5 mm, flow rate 100 L/min
* Test Distance: 2.5 to 3.0 m from the sample
* Configuration: Stainless steel nozzles, spray handle, pressure gauge and flow meter

* Working Mode: Portable testing or integration with IPX5/IPX6 water jet test chamber

IPX5

• Applicable Standard：IEC 60529
• Test Level：Water Jets
• Nozzle Inner Diameter：6.3mm ±0.1mm
• Water Flow Rate：12.5 L/min ±5%
• Test Distance：2.5-3.0 m
• Test Duration：≥1 min/m², minimum 3 min
• Nozzle Material：SUS304 Stainless Steel
• Connection：1/2" BSP Quick Connector
• Included Components：Nozzle, Spray Handle, Pressure Gauge, Flow Meter

IPX6

• Applicable Standard：IEC 60529
• Test Level：Powerful Water Jets
• Nozzle Inner Diameter：12.5mm ±0.1mm
• Water Flow Rate：100 L/min ±5%
• Test Distance：2.5-3.0 m
• Test Duration：≥1 min/m², minimum 3 min
• Nozzle Material：SUS304 Stainless Steel
• Connection：1/2" BSP Quick Connector
• Included Components：Nozzle, Spray Handle, Pressure Gauge, Flow Meter
