IP Waterproof test machine

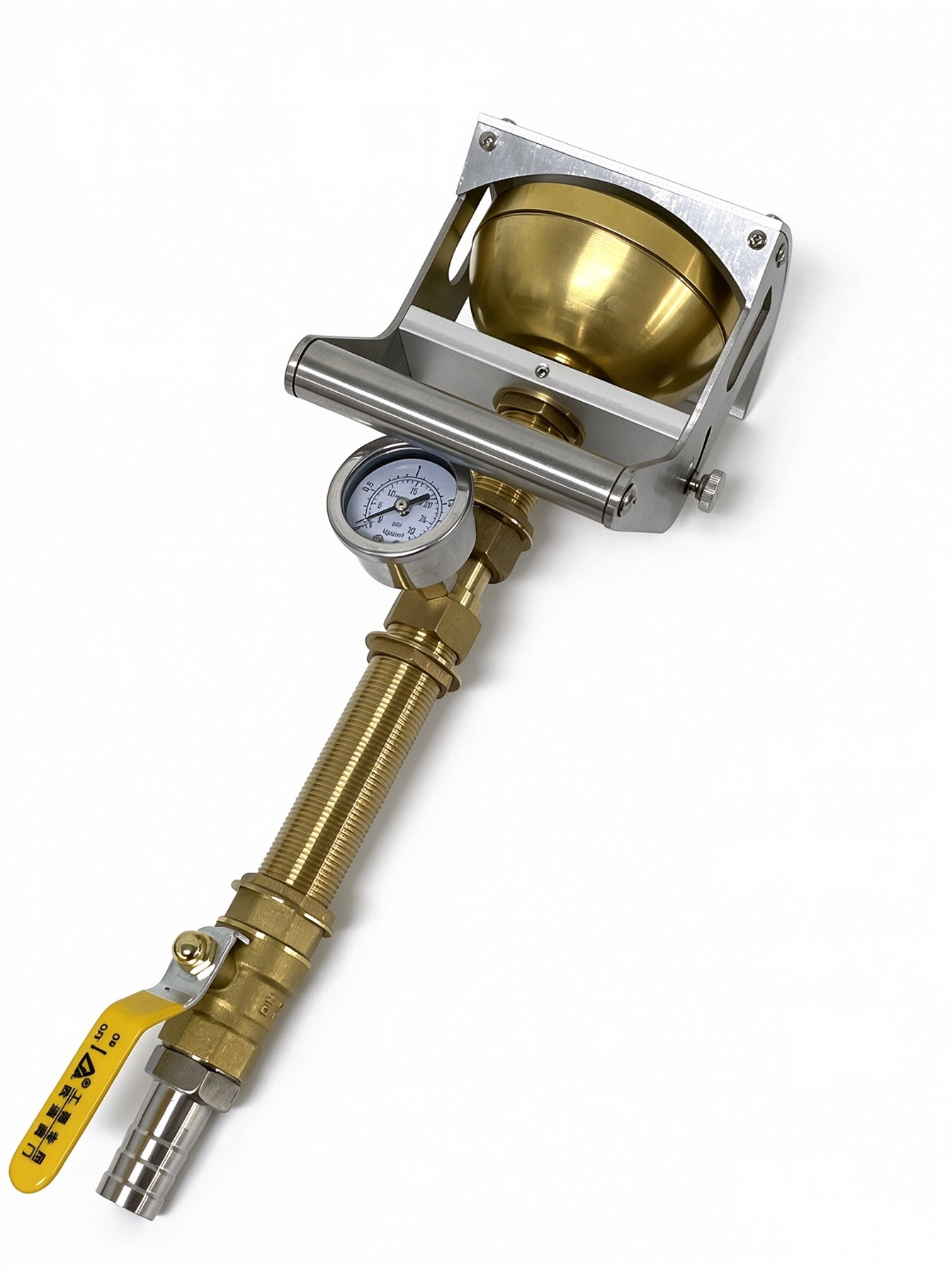

IEC60529 HNS-IPX34P Handheld Brass Spray Nozzle

IEC60529 HNS-IPX34P Handheld Brass Spray Nozzle

Hole diameter:0.5mm
Total holes:121pcs
Water flow:10L/min±5%
Material:Brass
Product description:HNS-IPX34P handheld brass spray nozzle complies with IEC60529 standard, 121 holes, 0.5mm hole diameter, water flow 10L/min±5%, used for IPX3 IPX4 splash and spray water ingress protection test.
INQUIRY EMAIL

Model: HNS-IPX34P
Water supply: Water pressure is 50~150kpa
Spray nozzle parameters: External diameter: 102mm; Spherical diameter: 75.5mm; Number of Holes:121; There is 1 middle hole and 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. Diameter of Nozzle Holes:0.5mm
Water flow: 10L/min±5%(the flow meter is not included)

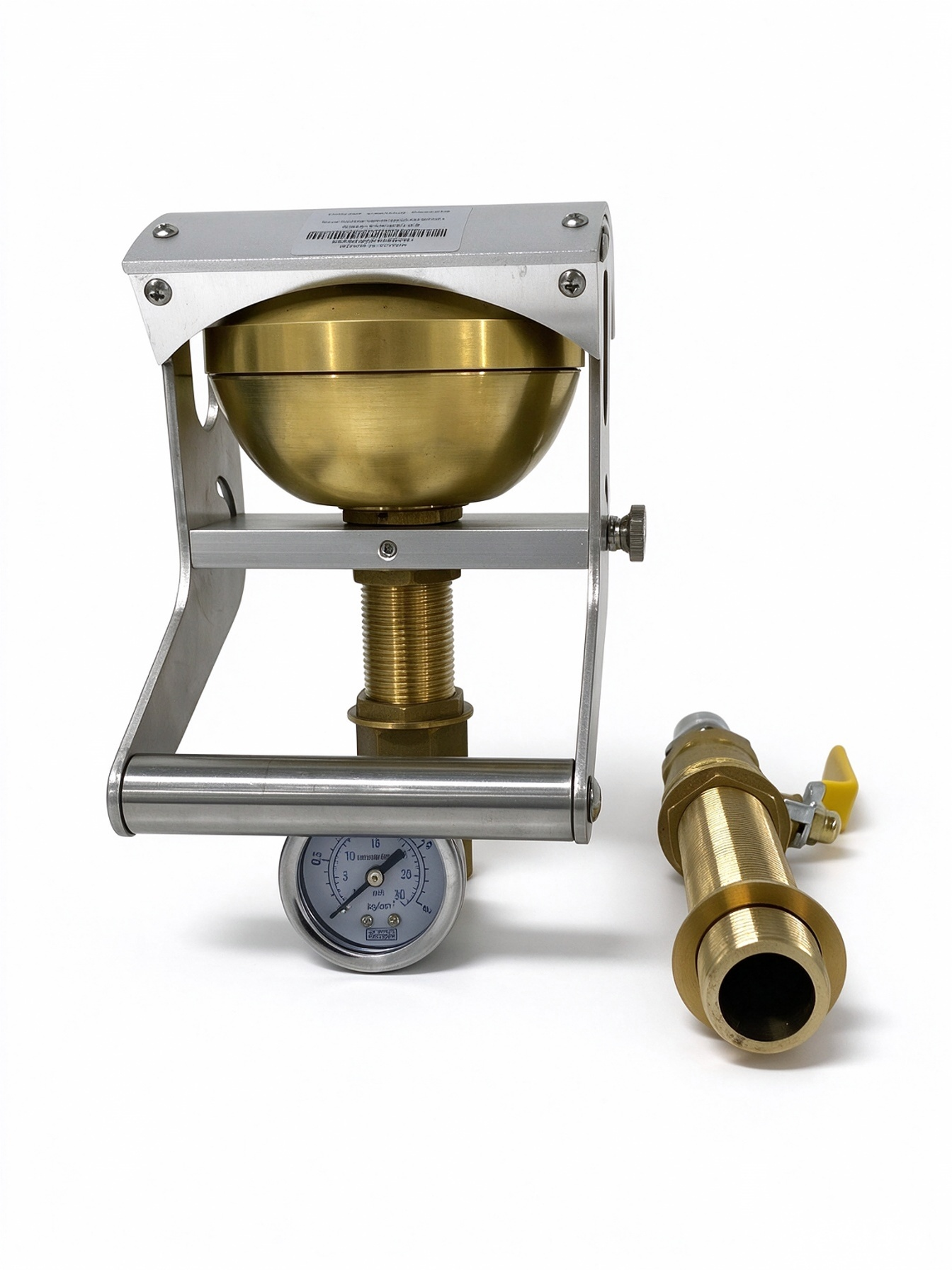

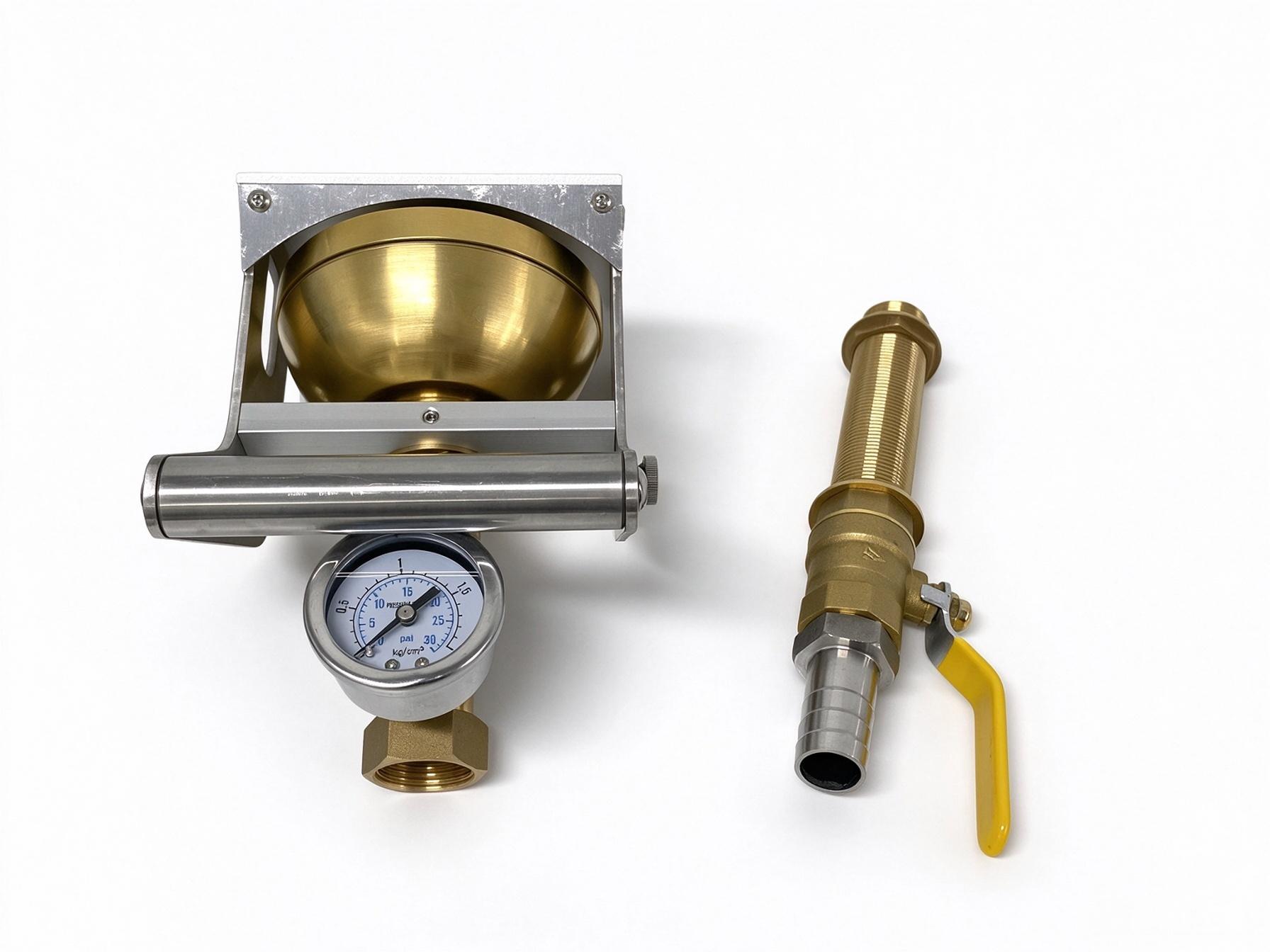

Range of pressure gauge: 0~0.4Mpa

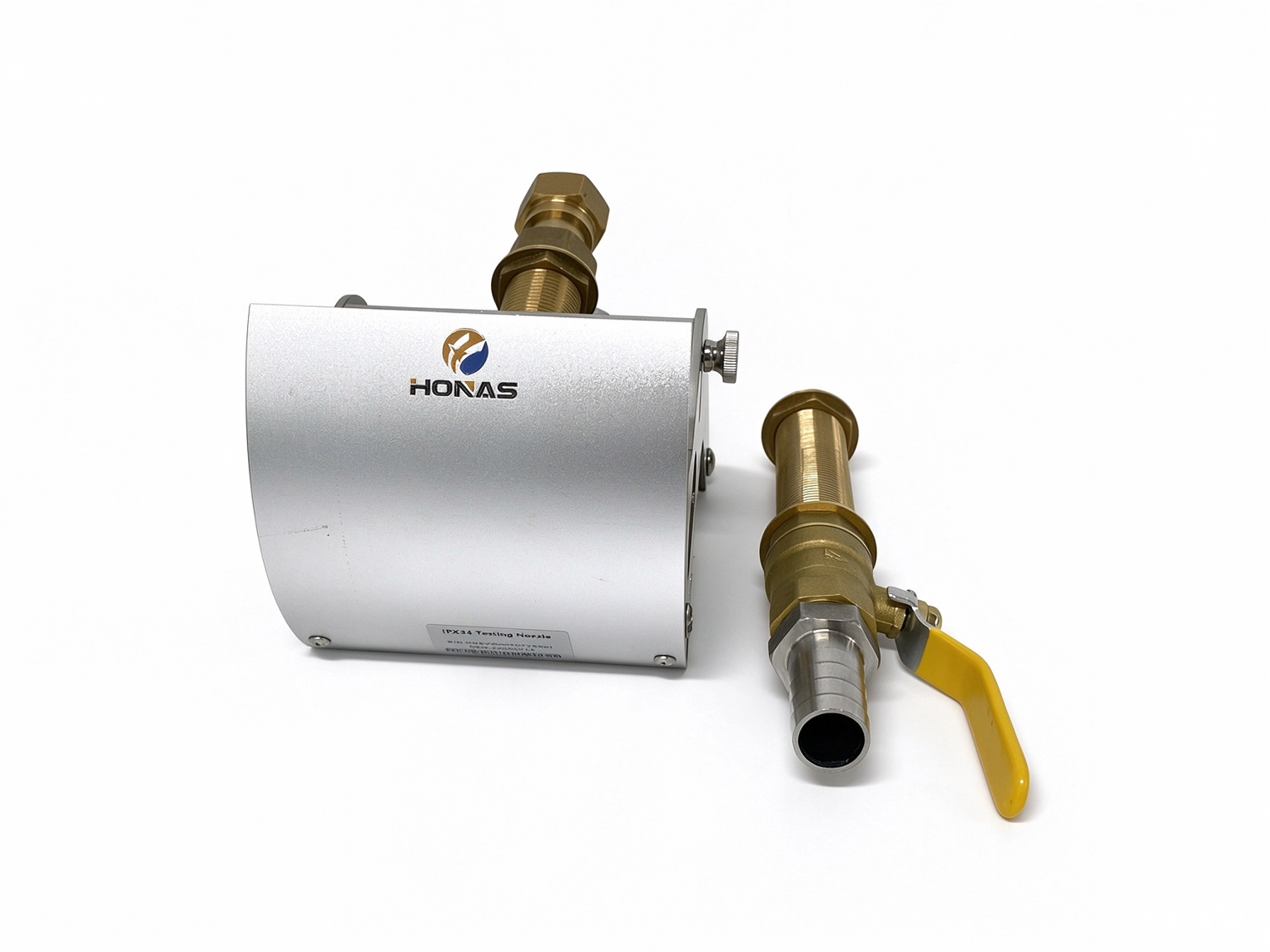

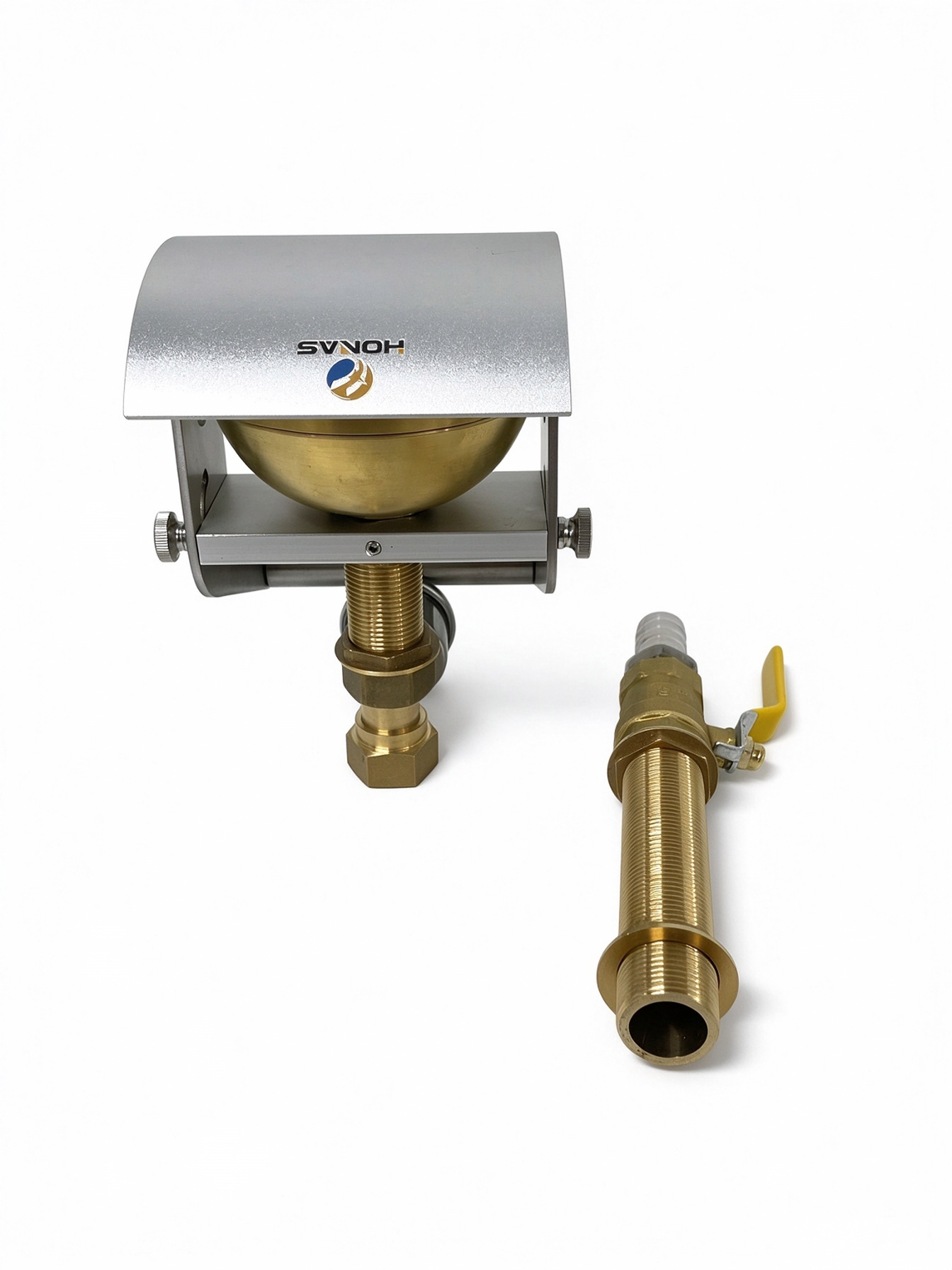

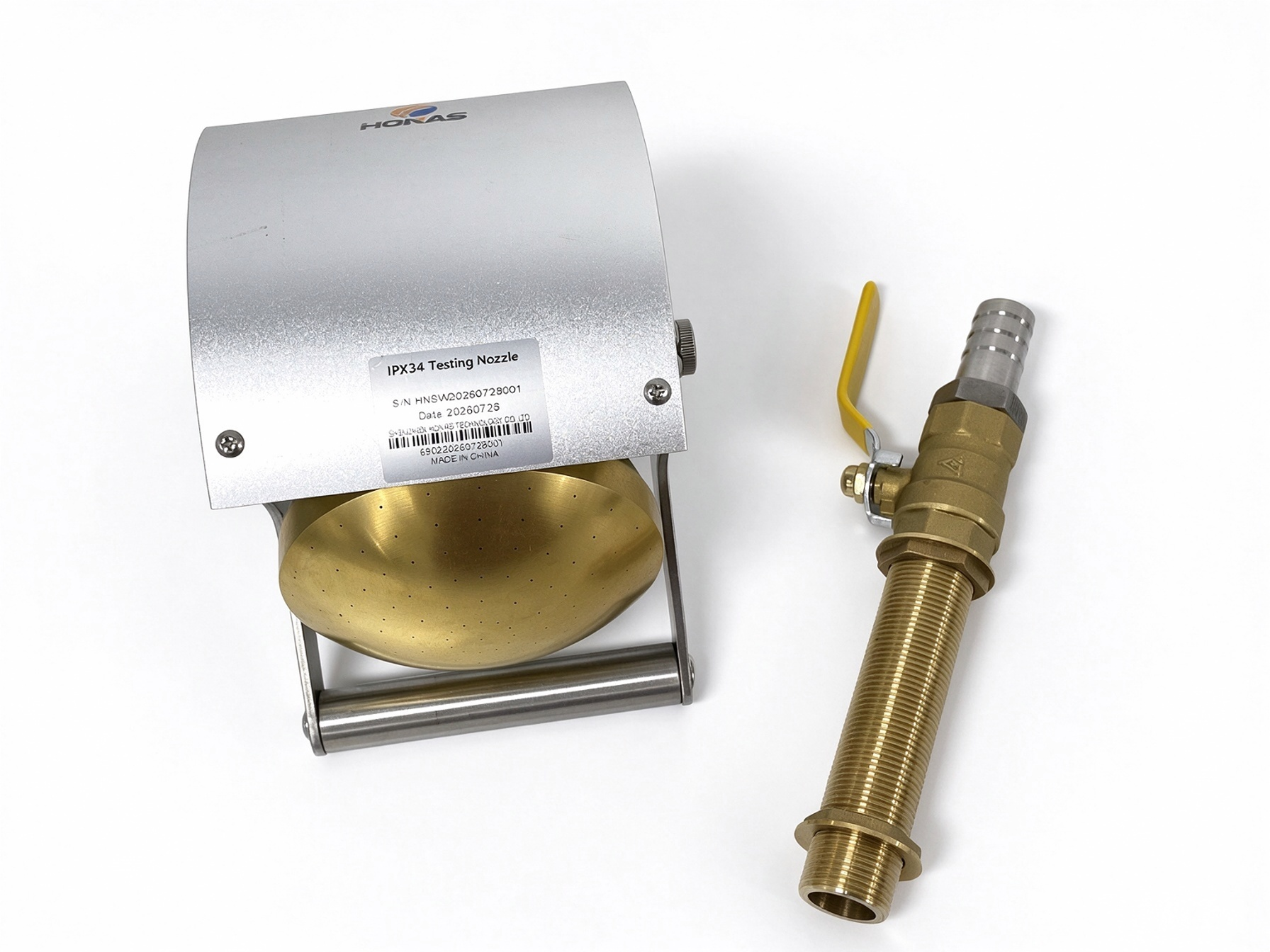

Counterbalanced shield: removable

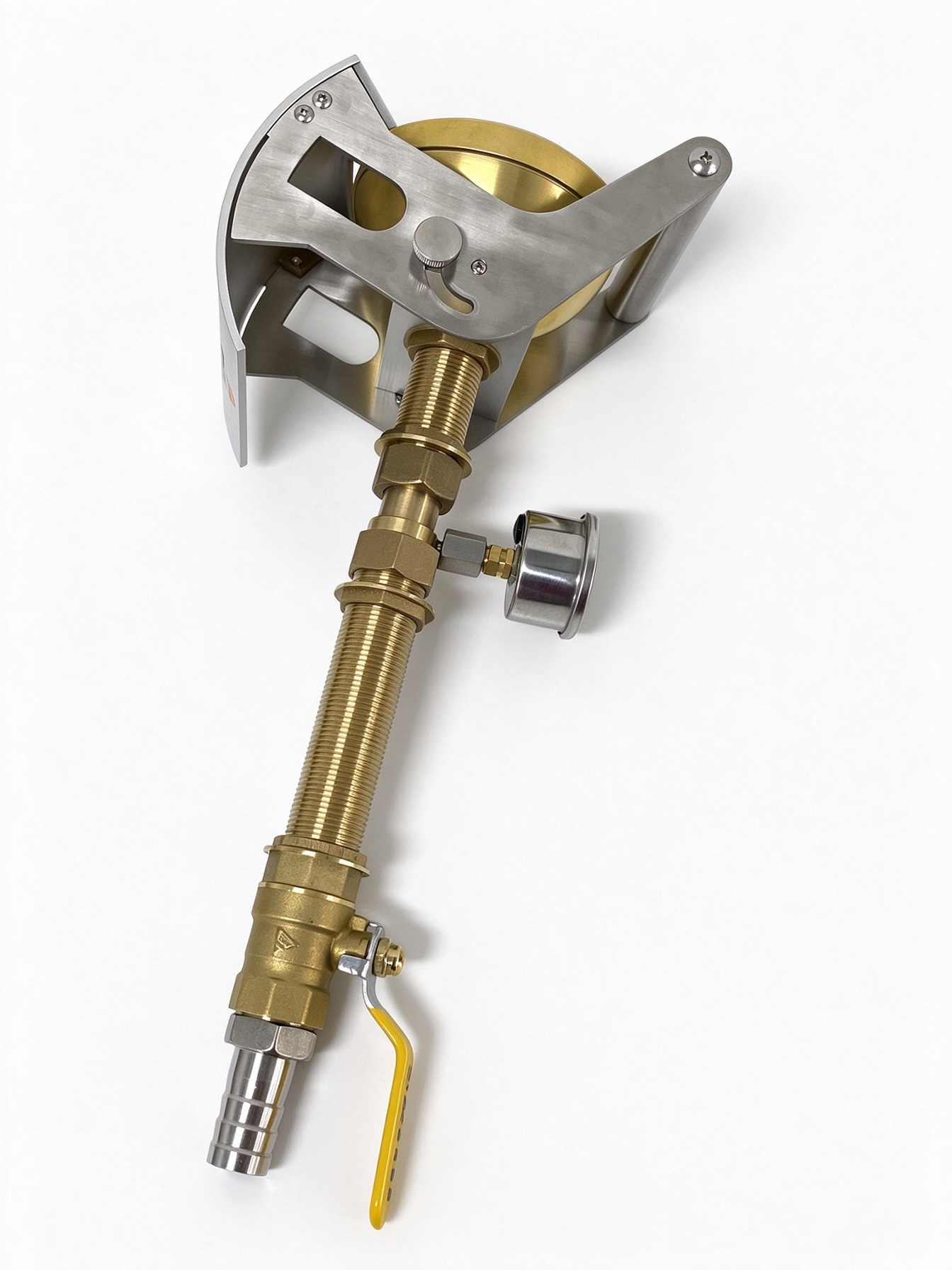

Adjustable angle of the shield: 0-30°

Product description:

The IPX3 and IPX4 tests are made using one of the two test device -oscillating tube or spray nozzle; Spray nozzle should be used as a preference in such cases-if for certain types of apparatus it is not possible to wet all parts of the enclosure under test, the support of the enclosure may be moved up or down.

Product Features

1. Good materials for durability;
Spray nozzle: brass
Moving shield: aluminium
Tube: Stainless steel
2. All specifications are fully in accordance with IEC60529.
3. Both IPX3 and IPX4 available with a moving shield.
