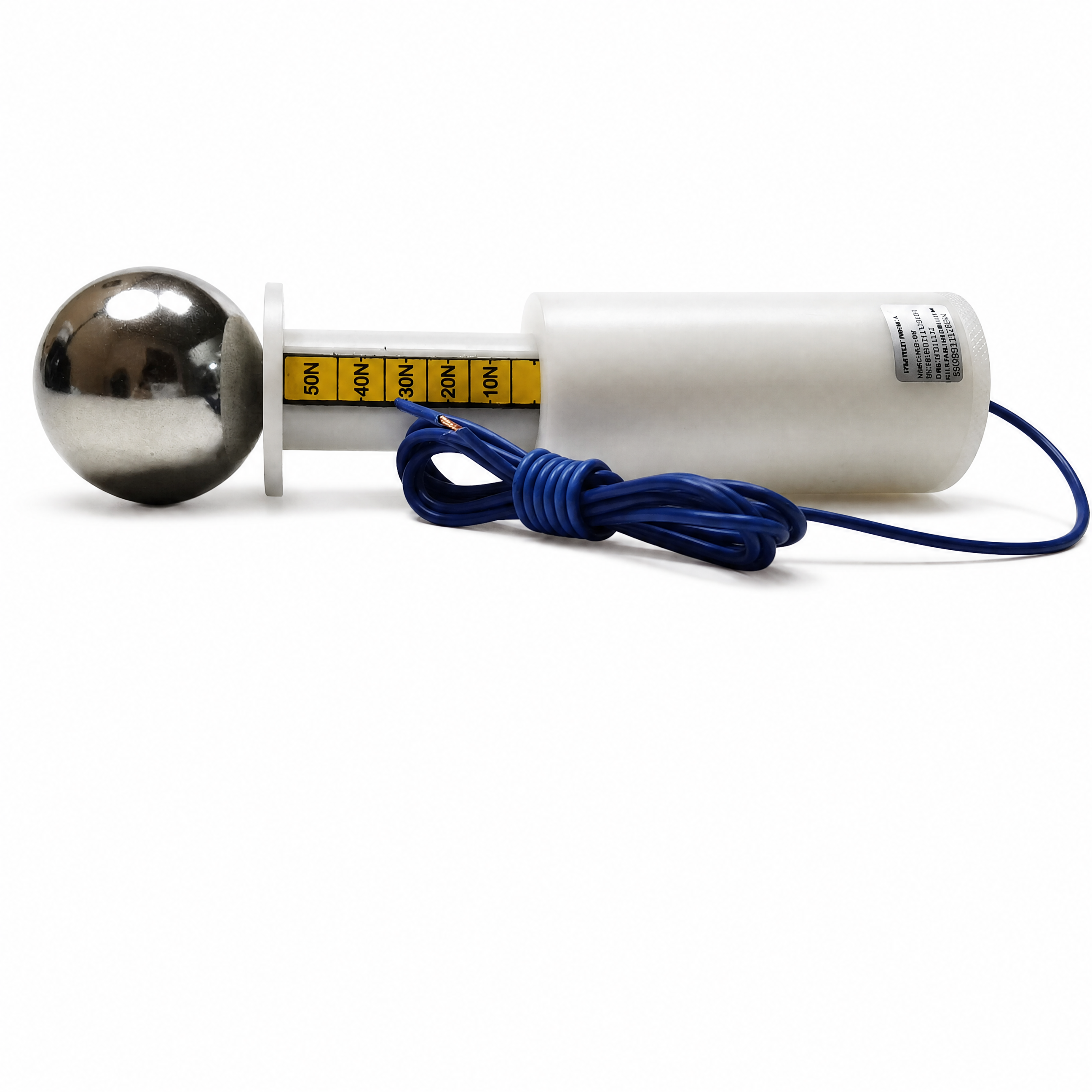

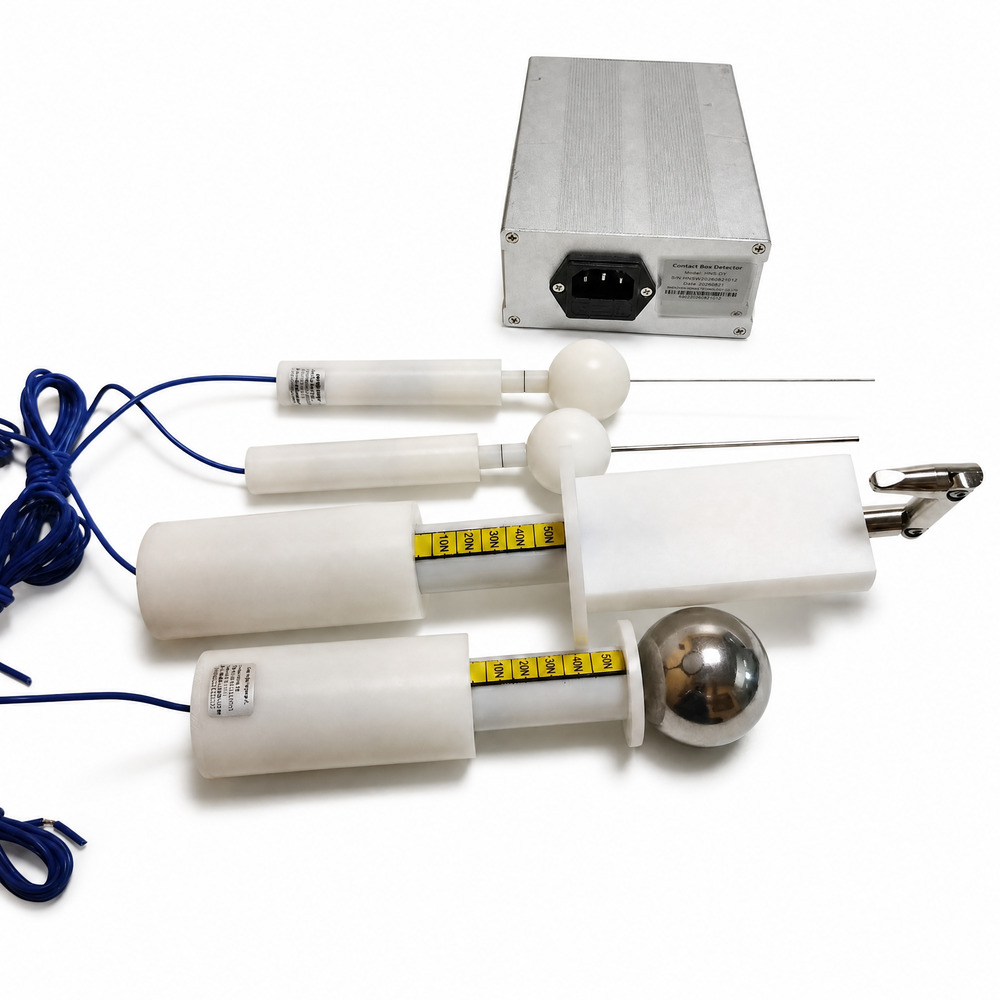

IEC 61032 figure 1 Test Probe A: IP1X Test Probe with 50N Thrust

Product No: HNS-PAF

Specifications:
• Ball Diameter: 50mm
• Baffle Plate Diameter: 45mm
• Baffle Plate Thickness: 4mm
• Handle Diameter: 10mm
• Handle Length: 100mm
• According to IEC61032 figure 1 (the Test probe A), table 6 GB/T4208-2008 the first characteristics (1)
• Thrust: 10N/20N/30N/40N/50N

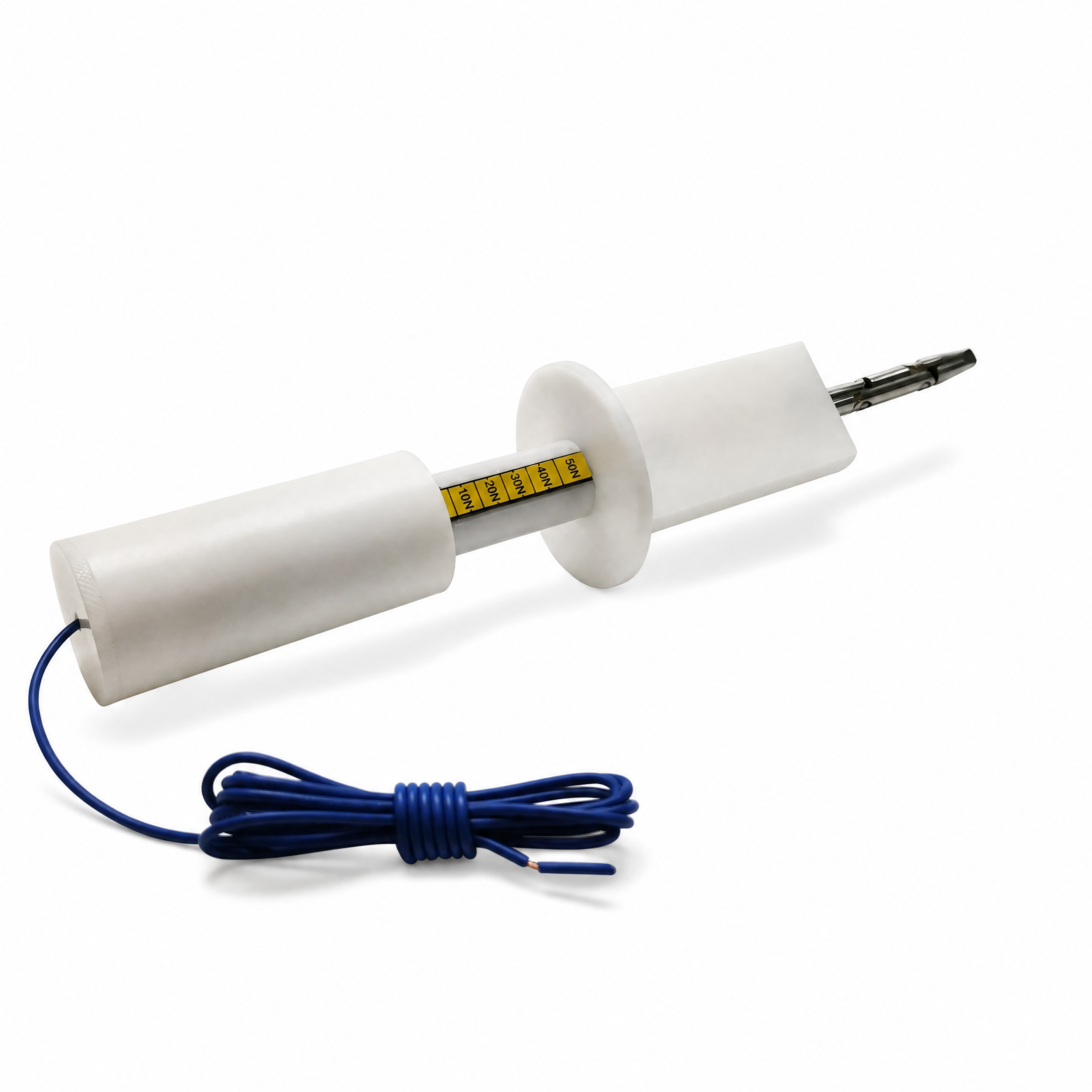

IEC 61032 Standard Articulated Test Probe with 10N Thrust

Product No: HNS-PBF10

Specifications:
• Probe Type: IEC 61032 Standard Articulated Test Probe (Test Probe B, finger simulation)
• Finger Material: Heat-treated stainless steel (corrosion-resistant, rigid for consistent testing)
• Handle Material: Polyamide (insulating, non-slip for safe grip)
• Surface Finish: Chrome plating (enhances durability, prevents scratches on equipment)
• Applied Thrust: 10N (precise force for standard compliance)
• Joint Movement: 90° angle (0° to +10° tolerance) in the same plane and direction (both joints)
• Key Dimensions:
– Handle Diameter: 75 mm ± 0.5 mm
– Joint Diameter: 12 mm (chamfered edges)
– Stop Face Diameter: 50 mm
– Finger Length (relevant section): 160 mm (linear tolerance: >25mm ±0.3mm)
• Core Function: Simulates human finger access to verify inaccessibility of hazardous parts in equipment

IEC 61032 Steel Rod Φ2.5mm with Dynamometer 3N

Product No: HNS-PCF3
Specifications:
• Probe Type Rigid steel rod with integrated 3N dynamometer
• Probe Diameter 2.5 mm (precision-machined for standard compliance)
• Probe Length 100 mm ± 0.2 mm
• Circular Baffle Diameter 35 mm ± 0.2 mm
• Handle Material Insulating material (for user safety during testing)
• Handle Diameter 10 mm
• Handle Length 100 mm
• Applied Thrust 3N (controlled via built-in dynamometer)
• Probe Material Steel (for rigidity and wear resistance)
• Core Function Verifies IP3X protection; prevents access to hazardous live/mechanical parts

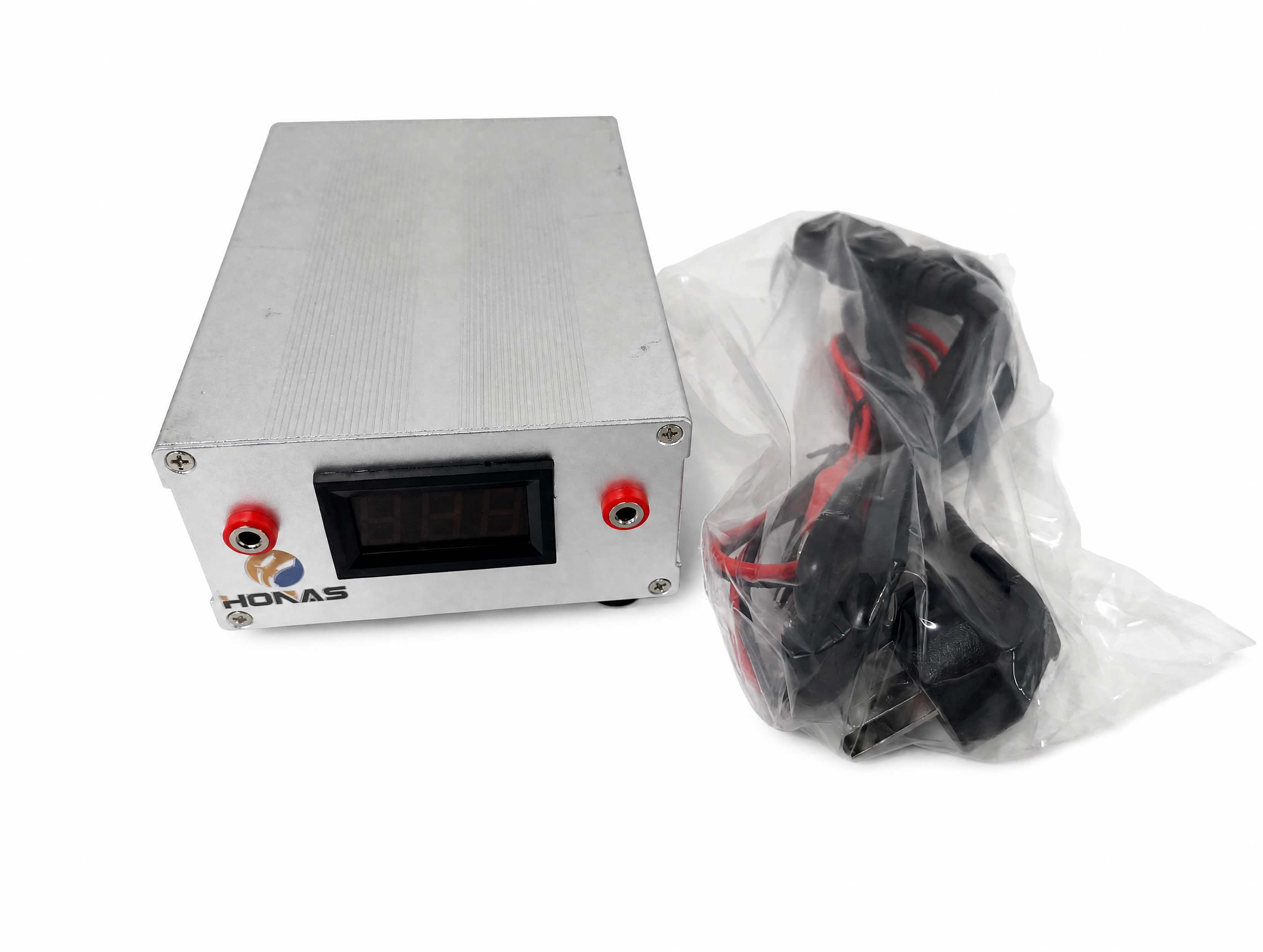

IEC 61032:2017/IEC 60335-1:2023 Voltage Indicator for Electric Shock Protection

Product No:HNS-DY
Specifications:
Tool Type: Voltage Indicator for Electric Shock Protection (circuit test device; for IP protection and hazardous part shock
testing)
Standards: IEC 61032:2017; IEC 60335-1:2023
Input Voltage: AC 180–250V (wide range to adapt to global power supplies)
Maximum Electrode Output Voltage: 48V (standard working range: 40–45V, simulates low-risk contact for shock testing)
Fuse Rating: 2A (overcurrent protection to prevent device damage and ensure operator safety)
Compatibility: Works with most test probes (e.g., IEC 61032 Test Probe B, UL 60335-1 articulated probes)
Core Application: Provides power for simulating finger/tool/metal wire contact in electric shock protection and IP testing
Operational Features: Simple plug-and-play design; accurate voltage stability (±2% tolerance); durable, heat-resistant casing

IEC 61032 Figure 4 Steel Wire with 1N Dynamometer

Product No:HNS-PDF1

Specifications:
Tool Type: IEC 61032 1mm Steel Wire with 1N Dynamometer, IP4X Test Probe D
Steel Wire Material: Conductive stainless steel (resistance ≤ 0.1Ω; corrosion-resistant; diameter tolerance: ±0.02mm)
Dynamometer Integrated: 1N capacity; accuracy: ±0.05N; digital display (optional) for real-time force monitoring
Key Dimensions:
– Wire length: 100 mm
– Wire diameter: 1.0 mm
– Circular-baffle diameter: 35 mm
– Handle diameter: 10 mm
– Handle length: 100 mm
– According to IEC61032 figure 4 (the Test probe D).
– Thrust: 1N
Applied Force: Fixed 1N (controlled by dynamometer; prevents over-force on delicate components)
Core Function: Navigates ultra-narrow device gaps via 1mm wire; detects hazardous live parts with precise 1N force; ensures IEC
61032 compliance
