Environmental test equipment

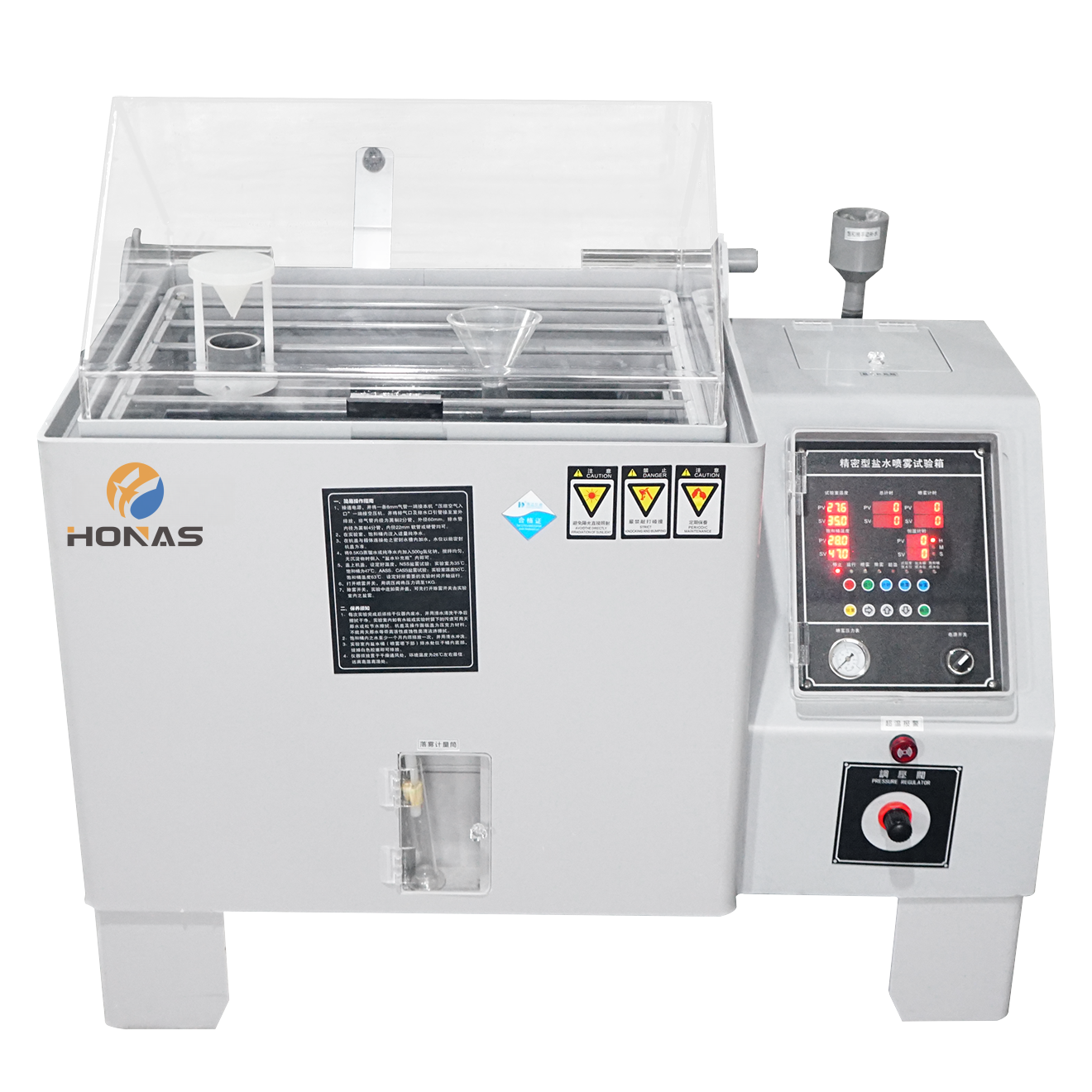

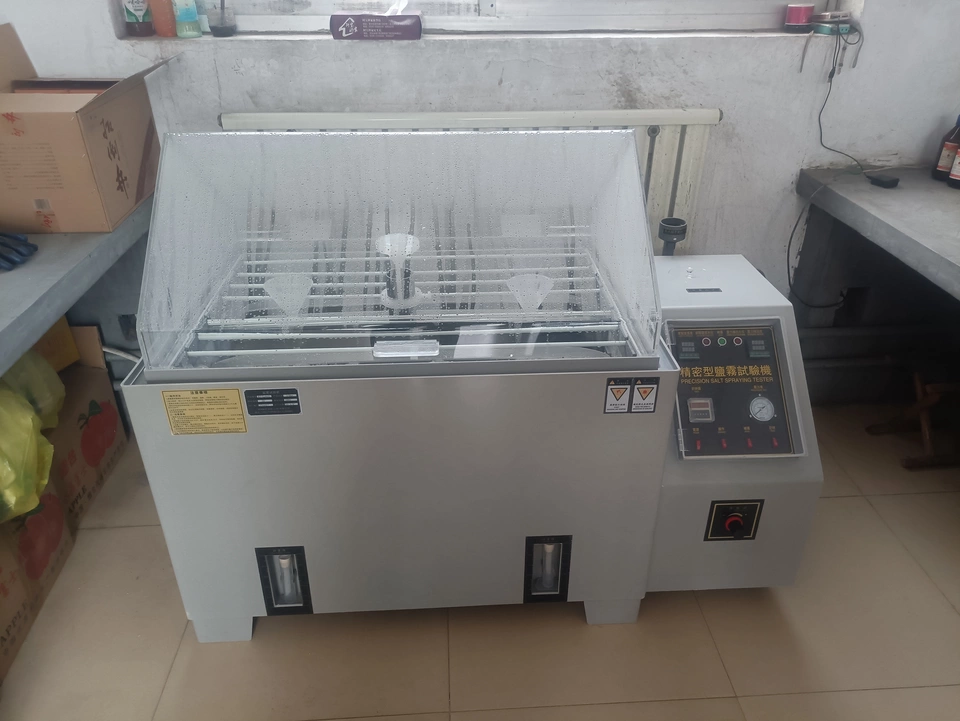

Iso9227 High Configuration Lab Salt Spray Test Machine

Iso9227 High Configuration Lab Salt Spray Test Machine

Accuracy ：AC220V 10% 50HZ
Spray angle： 0°,30°,60°,90°(vertical)
Design criteria： CNS, JIS, ASTM
Temperature range Room temperature ：＋5℃～55℃
Product description:Lab High Configuration Salt Spray Corrosion Test Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antiru
INQUIRY EMAIL

Model		HNS-60	HNS-90	HNS-120	HNS-160	HNS-200
Size cm		604540	906050	1208050	1609060	20010060
Power		1.3(kw)	1.5(kw)	4.0(kw)	5.0(kw)	6.5(kw)
Performance	Temperature range	Room temperature ＋5℃～55℃
	Temperature uniformity	±2℃
	Temperature fluctuation	±0.5℃
	Salt spray deposition	1～2ml/80cm2.h
	Spray method	Continuous, periodic optional
	Test timing	Adjustable from 1 to 9999 (H, M, S)
Control System	temperature control	LED digital display P.I.D + S.S.R. Microcomputer integrated controller
	Temperature Sensor	Platinum resistance. PT100Ω / MV
	Heating system	Fully independent system, nickel-chromium alloy electric heater

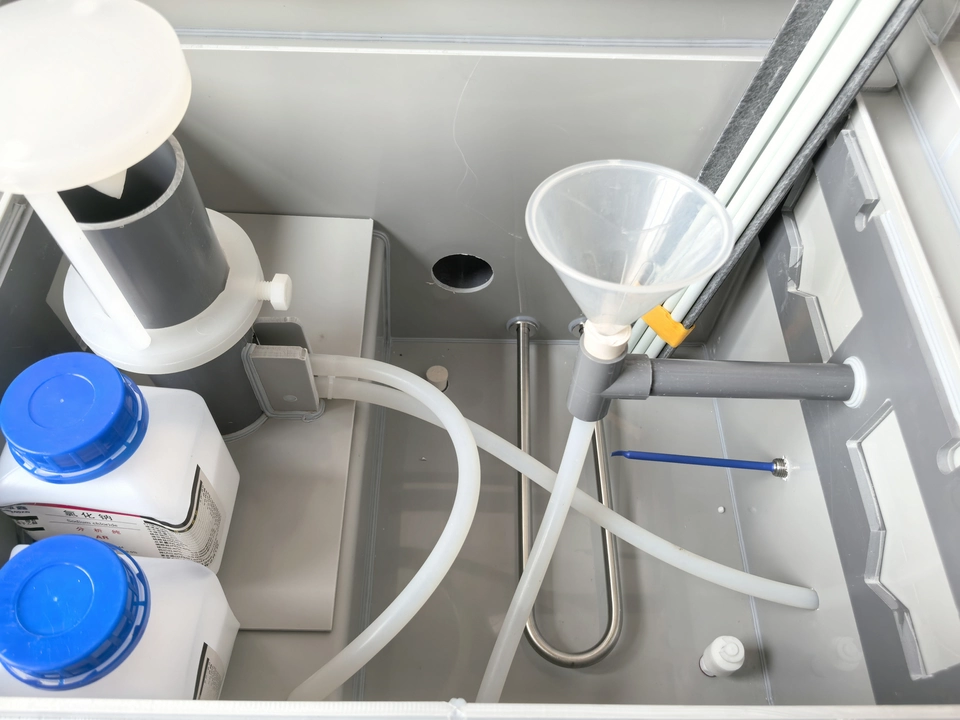

	Spray system	Tower spray device with no crystal nozzle (fine mist particles and even distribution)
	Spray time	1 ～ 9999 (H, M, S) and the period can be adjusted
	Salt collection	With standard funnel and standard measuring cylinder
	Salt solution filtration	Water filter is installed at the suction pipe (to prevent the nozzle from being clogged to terminate the test)
	Salt solution preheating	The temperature of the salt solution is equal to the temperature in the tank (the temperature of the salt solution will not affect the test temperature)
Materials	Cabinet	Imported corrosion-resistant, anti-aging, high-strength P.V.C board
	Inner box	Imported corrosion-resistant, high-strength P.V.C / imported corrosion-resistant, high-strength, anti-aging, high-temperature resistant P.P board
	Box cover	Imported corrosion-resistant, high-strength transparent P.V.C / imported corrosion-resistant, high-strength, high-temperature resistant P.P board
	standard configuration	1 set of round rod, V-shaped sample holder, 2 nozzles, funnel, 2 sets of measuring cylinders
Protection		Leakage, short circuit, over temperature, water shortage, end of test, over current protection
Voltage		AC220V±10％ 50Hz		AC220V±10％ 50Hz
Use ambient temperature		5℃～＋30℃ ≤85％R.H

Control system：

1.Temperature control:Control the chamber temperature, according to standard, salt test is 35°C, and corrosion test is 50°C. 2.Saturated air barrel temperature controller:Control the saturated air barrel temperature, salt test is 47°C, corrosion test is 63°C. 3.Timer:Adjustable, can set the time in 0.1s~9999hr free, shut down automatically when the time is over. 4.Running timer:Direct read 0-9999.9hr, record the whole work hours. 5.Heat sink temperature controller:Control the temperature of heat sink, Controller with temperature control of the testing machine laboratory environmental temperature changes around the difference is too large, also need to meet the adjustments, the setting method in the control box. 6.Salt test :Chamber temperature set 35°C, heat sink temperature set is 47°C(40°C-50°C).
