Intelligent Infrared Body Temperature Monitoring System

Intelligent Infrared Body Temperature Monitoring System

  • ARM:DDR3 2GB
  • ARM:DDR3 2GB
  • OSD language:Support multi language
  • Panel Model :8 inch IPS LCD display
  • Product description:Intelligent Infrared Body Temperature Monitoring System

Product Introduction:

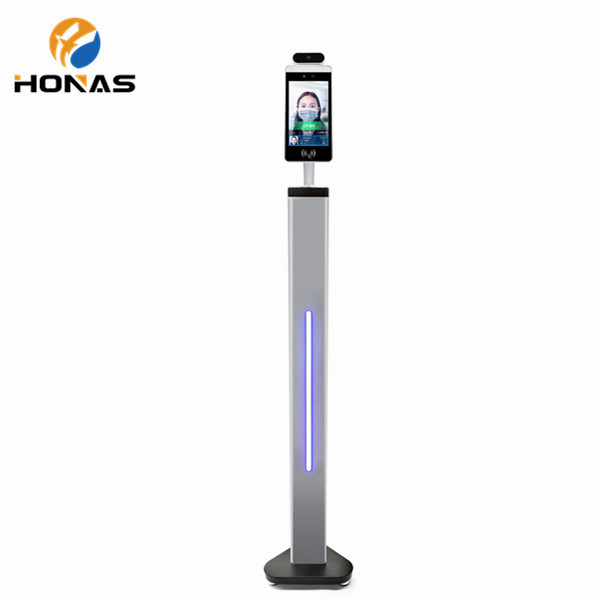

InBCA IN-C01 AI temperature measurement + mask recognition detection, it adopts Rockchip RK3288 high-performance hardware platform, industrial grade binocular camera and face recognition,as well as infrared thermal imaging technology, and supports card reading, fingerprint input and other functions, which can be applied to the temperature security and the fast physical examination gate channel to achieve safe and efficient access control.

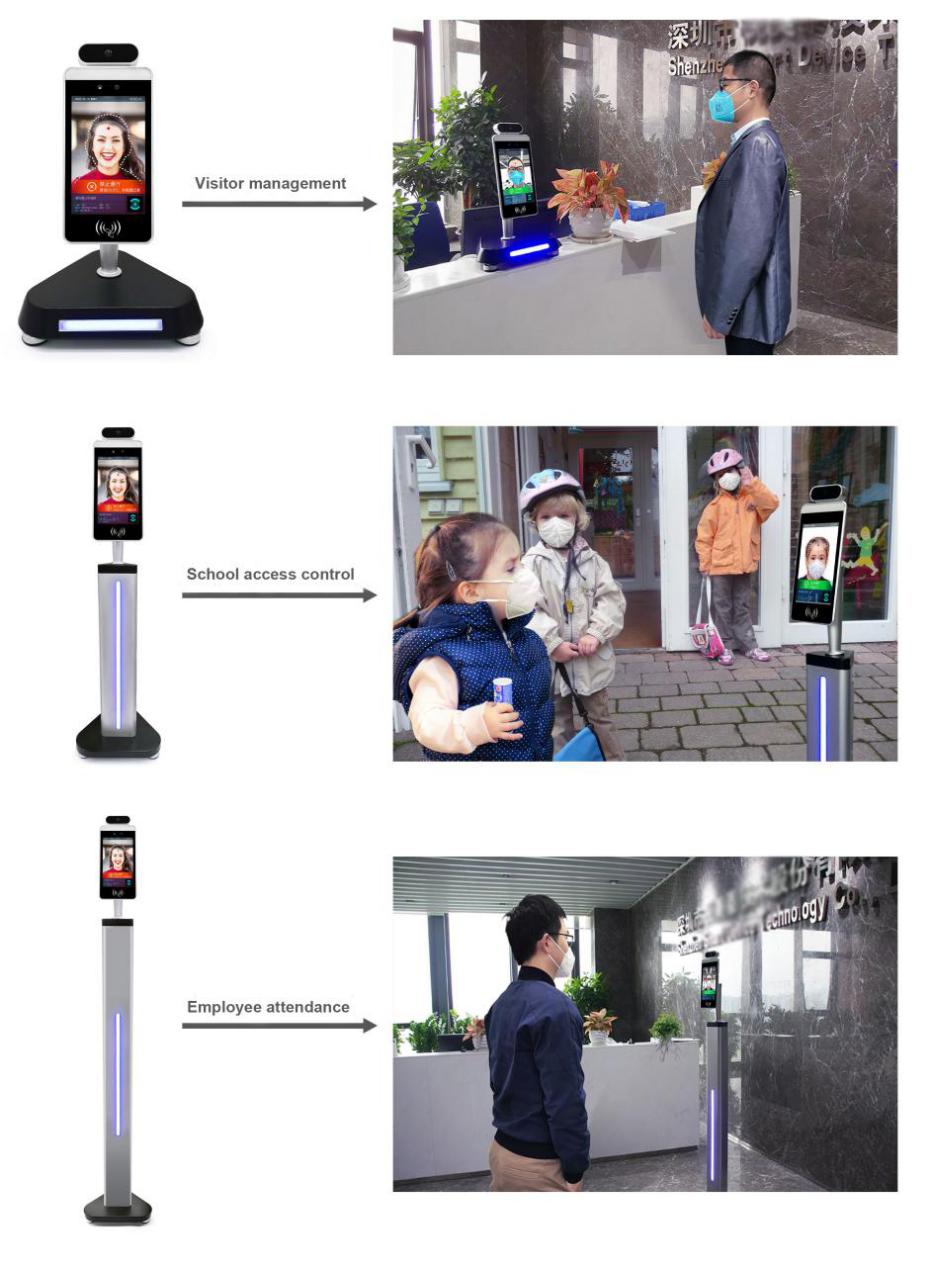

It can be matched with corresponding brackets according to different application scenarios, such as different height stand column brackets, which can adapt to different places (as shown on the right photo)

It can also be used with access gates and access control.It is suitable for communities, business buildings, schools, hotels, scenic spots, transportation hubs and other public service places.

Main Features:

8 inch IPS full-view HD LCD display, no streaking and delay

Industrial-grade appearance, IP65,certain outdoor dustproof and waterproof functions

Standard class 30,000 face matching library, 1:1 recognition rate >99.97%,1:N recognition rate>96.7%, @0.1% false positive rate, living accuracy rate >98.3%,@1% false rejection rate,recognition speed < 200ms.

Binocular live anti-counterfeiting function, anti-deception such as photos and videos

Support mask recognition detection, automatic recognition and voice reminder for non-wearing masks

Industrial grade binocular width dynamic camera,infrared and RGB dual fill light, low light recognition worry-free.

High-performance hardware platform, support RK3288 Quad core,RK3399 Six-core and Qualcomm MSM8953 Octa-core processor

Support body temperature measurement and high temperature alarm, deviation 0.2℃ for 1meter long distance body temperature detection,recognition speed less than 0.7 seconds without queuing.

Support IC card, ID card, fingerprint, QR code verification functions

Support multiple API docking, system, APP, APP+background network, complete documentation provided and support secondary development.





RK3288 Quad core,RAM 2G,The maximum main frequency is 1.8 GHz.



Internal Storage


Operating System

Android 7.1

OSD language

Support multi language

Infrared Temperature sensor

Support human body temperature detection with accuracy >99%

Panel Model

8 inch IPS LCD display

Max Resolution



Pixel: 200W binocular width dynamic

Type: RGB + IR Infrared


Focal length:50-150cm

White Balance: Automatic

Function Module Interface

Fill-in light::IR,LED Fill light

Network Module: Support Cable, WIFI


Double 8 o 1w

USB Interfaces

1 USB OTG, 1 USB HOST standard A port

Conventional Performance of Face Recognition

Local Offline Use: Local 30,000 Face Database

Face detection; support simultaneous detection and tracking of 5 people

1:N Face Recognition: Supports one-thousandth of the error rate.

96% Pass Rate

1:1: Support the optional swipe card module, the ID card module can achieve 1:1 face comparison.

Stranger Detection: Support

Recognition Distance Recognition: Support

Remote Upgrade of Equipment: Support

Equipment Interface: Equipment Management, Authority Management, Personnel/Photo management, record query, etc.

Infrared thermal imaging temperature detection

Temperature detection distance: 1 meter, optimal distance: 0.5 meter

Deviation ≤ ±0.2℃

Measurement range: 10℃~42℃

Thermal imaging field of view: 32 X 32℃

Direct release of normal visitor temperature: Support

Over-temperature alarm Support (body temperature alarm value can be set)

Power Input

DC12V  5A (±10%)


13.5W (Max)

Working Temperature


Storage Temperature


Protection level

IP65,Certain outdoor dustproof and waterproof functions

Installation mode

Installation of wall mounting bracket, bracket of gate and fixed tripod bracket

Overall dimension



1.45kg(Tripod bracket NOT included)
