Ceramic tiles test equipment

IS010545 brittle materials test equipment cement pavement concrete tiles Deep abrasion ceramic tester

friction wheel speed: 75R / min
sample size: 100mm × 150 mm
speed of abrasive: (100 ± 10) g / 100R
Voltage: 380V.
Product description:IS010545 brittle materials test equipment cement pavement concrete tiles Deep abrasion ceramic tester
INQUIRY EMAIL

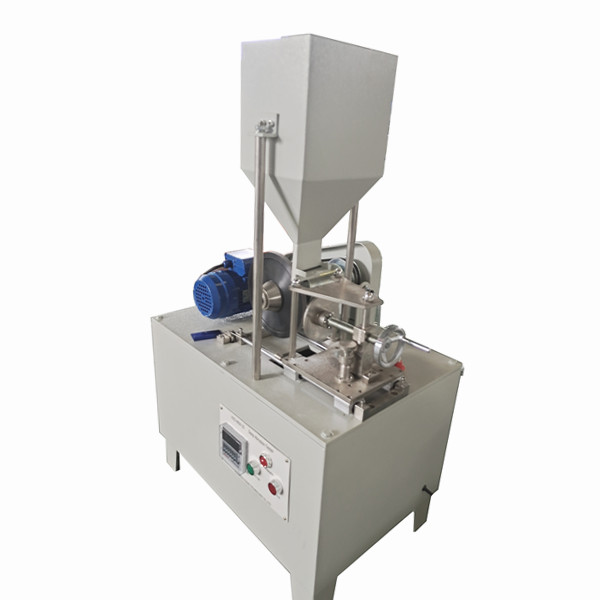

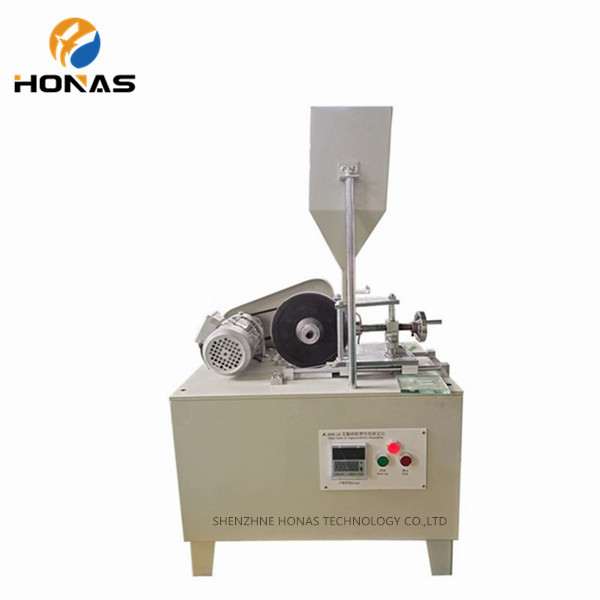

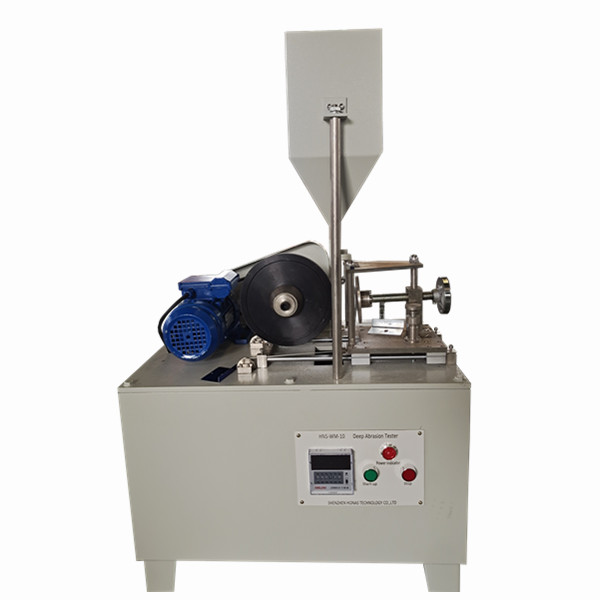

HNS-WM-10 Deep abrasion ceramic tester

The test instrument complies with GB / T3810.6-2016 "Isolated Brick Wear Test Method" and ISO / DIS010545-6-2010 "Uneagle Tiles Deep Wear Test Method" on Test Instruments.

Wearable test of similar brittle materials such as uglyzed bricks, mosaic, cement pavement, and refractory materials.

1.First grinding diameter: 200 ±0.2 mm; thickness: 10 ±0.1 mm, hardness: above HB 500 (suitable for GB/T3810.7-2006),

2. Second grinding diameter: 200 ±0.2 mm; thickness: 70 ±0.1 mm, hardness: above HB 500 (suitable for EN 14157-2004,GB/T12988-91);

Item	Parameter
Friction wheel speed	75±4 R / min
Steel wheel diameter	200 ± 0.1 mm
Steel wheel thickness	10 ± 0.1 mm
Hardness	HB 500 or more; (Applicable GB / T3810.7-2016)
Speed of abrasive	(100 ± 10) g / 100R
Sample size	100 mm × 150 mm
Abrasive adopts	F80 white melt alumina
Hoper volume	>5 L
Mass of pressure code	2.5 KG/14 kg
Voltage	380 V
Delivery time	15 days
Warranty	1 year
