Plug socket switch test machine
EV Plug Breaking Capacity Tester IEC62196-1 Charging Gun Life Tester EU Type2 J1772 Connector Durability Make-Break Test
- Test Station：Single station, multi-station customized
- Insertion/Withdrawal Speed：0.1~0.85 m/s (default 0.8±0.1m/s)
- Max Pull Force：0~500 N, resolution 0.1N
- Unlocking Force Test Range：0~100 N, precision ±0.5%F.S
- Product description:Professional IEC62196 EV Plug Breaking Capacity Tester for EV charging gun, connector & socket make-break durability certification test, servo control, meet IEC62196-1 standard for lab testing factory

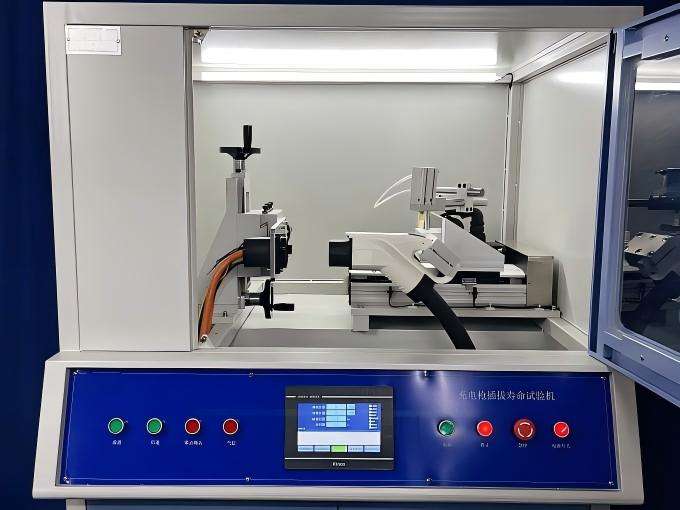

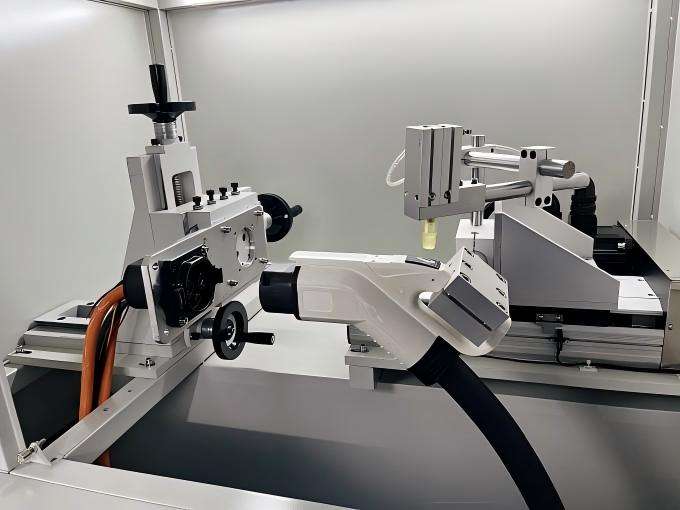

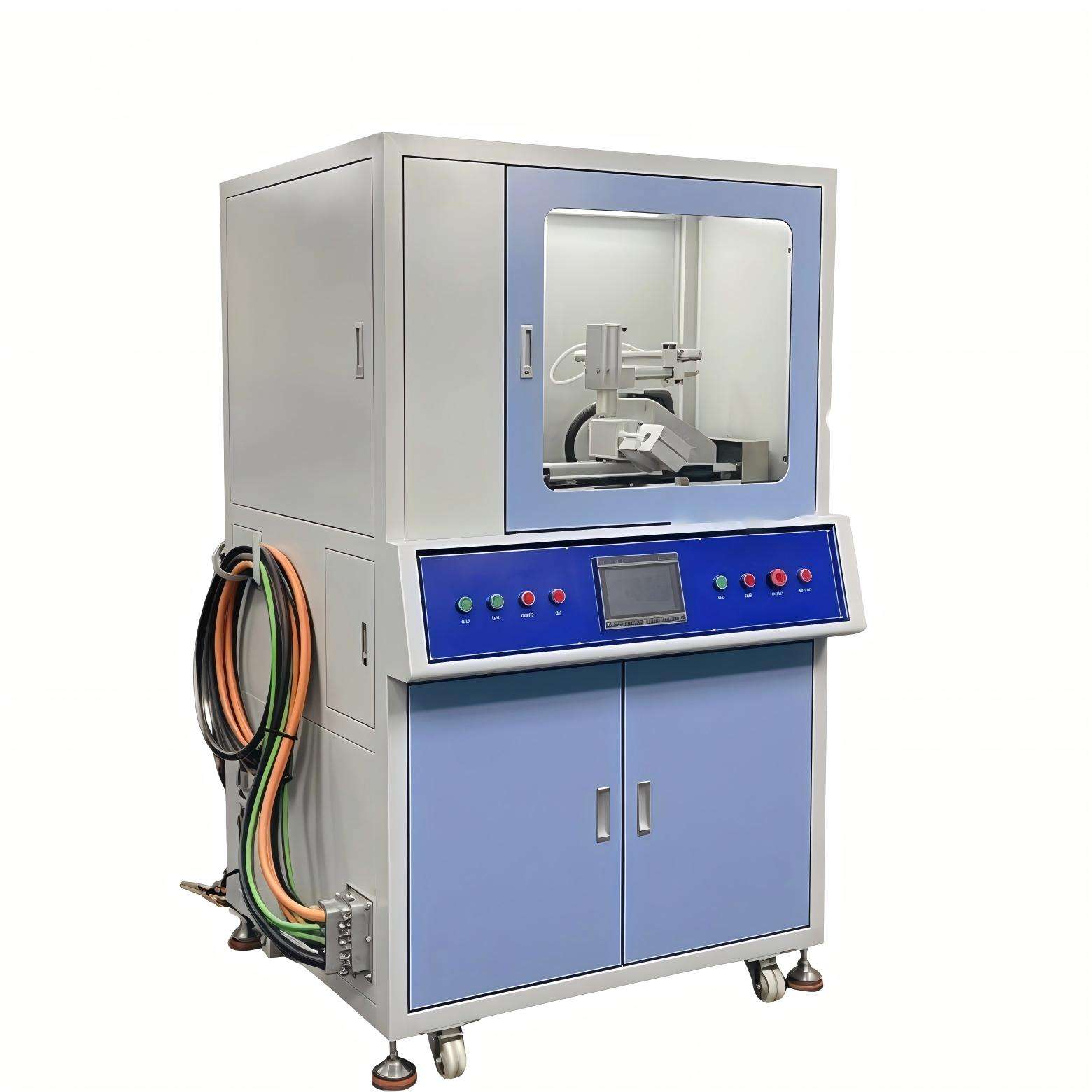

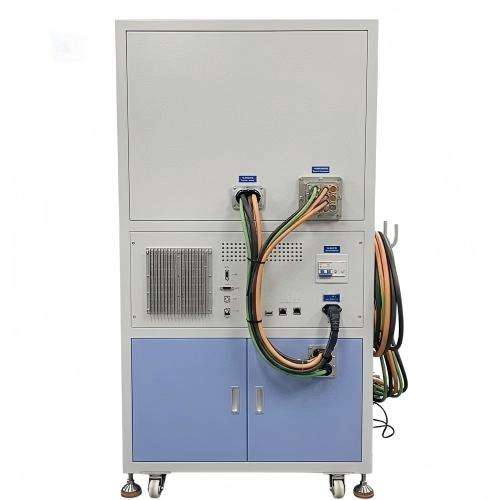

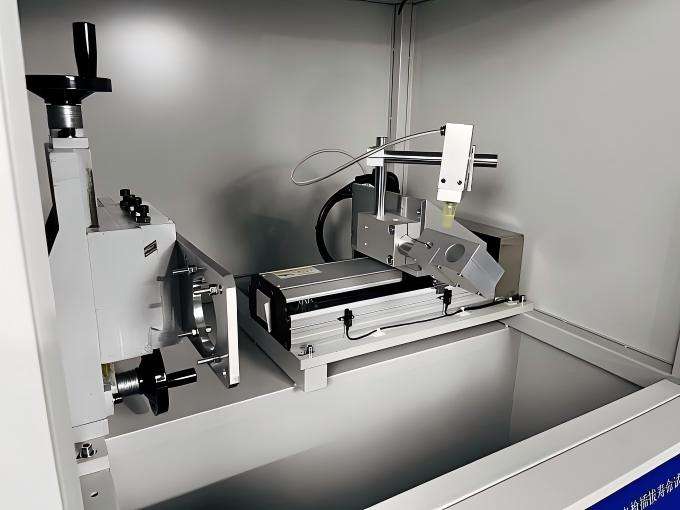

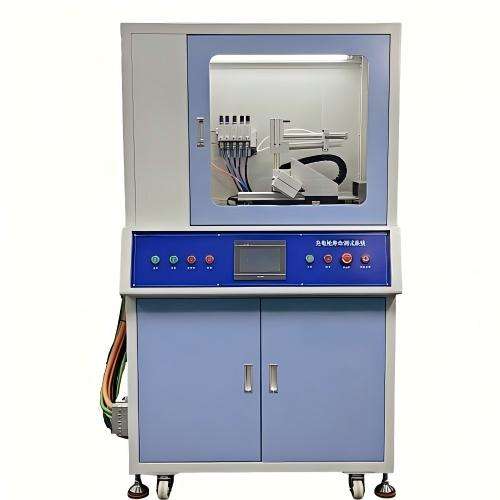

This IEC62196 EV Plug Breaking Capacity Tester is professional testing equipment developed strictly in accordance with IEC62196-1 clause 22 & 23, specially designed for breaking capacity test and normal operation durability test of EV charging gun, vehicle plug, socket inlet, EVSE coupler and high-voltage charging connector.
The machine adopts high-precision servo drive system + PLC touch screen intelligent control, simulates real plug-in & unplug actions under rated electrical load, automatically complete thousands of cycle tests to detect contact wear, ablation, temperature rise, mechanical locking failure and insulation damage of charging plugs. Widely applied for product certification test of EV charger factories, third-party testing laboratories, certification institutions for TUV, SGS, CE and GB/T 20234 standard inspection.
