Environmental test equipment

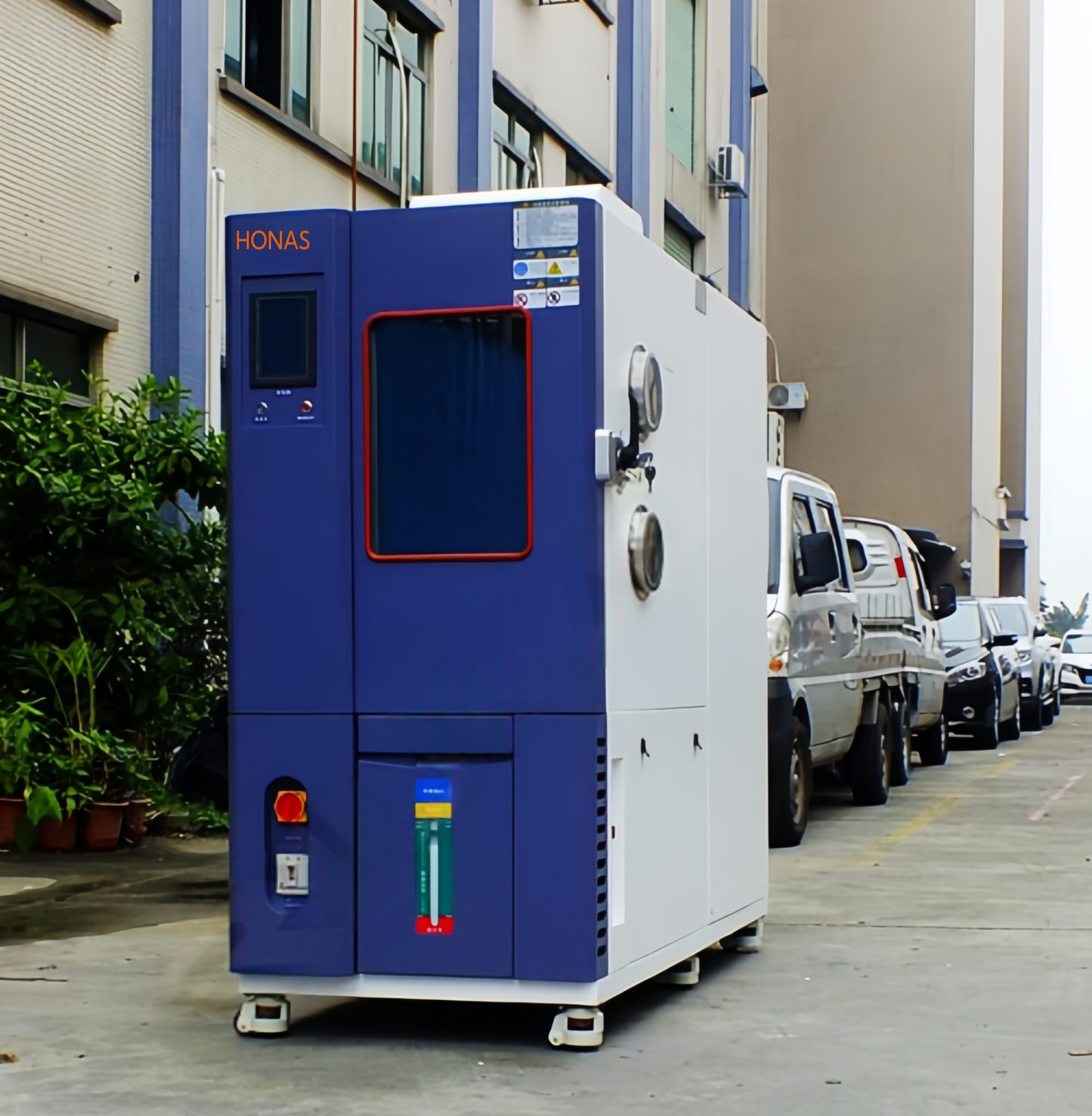

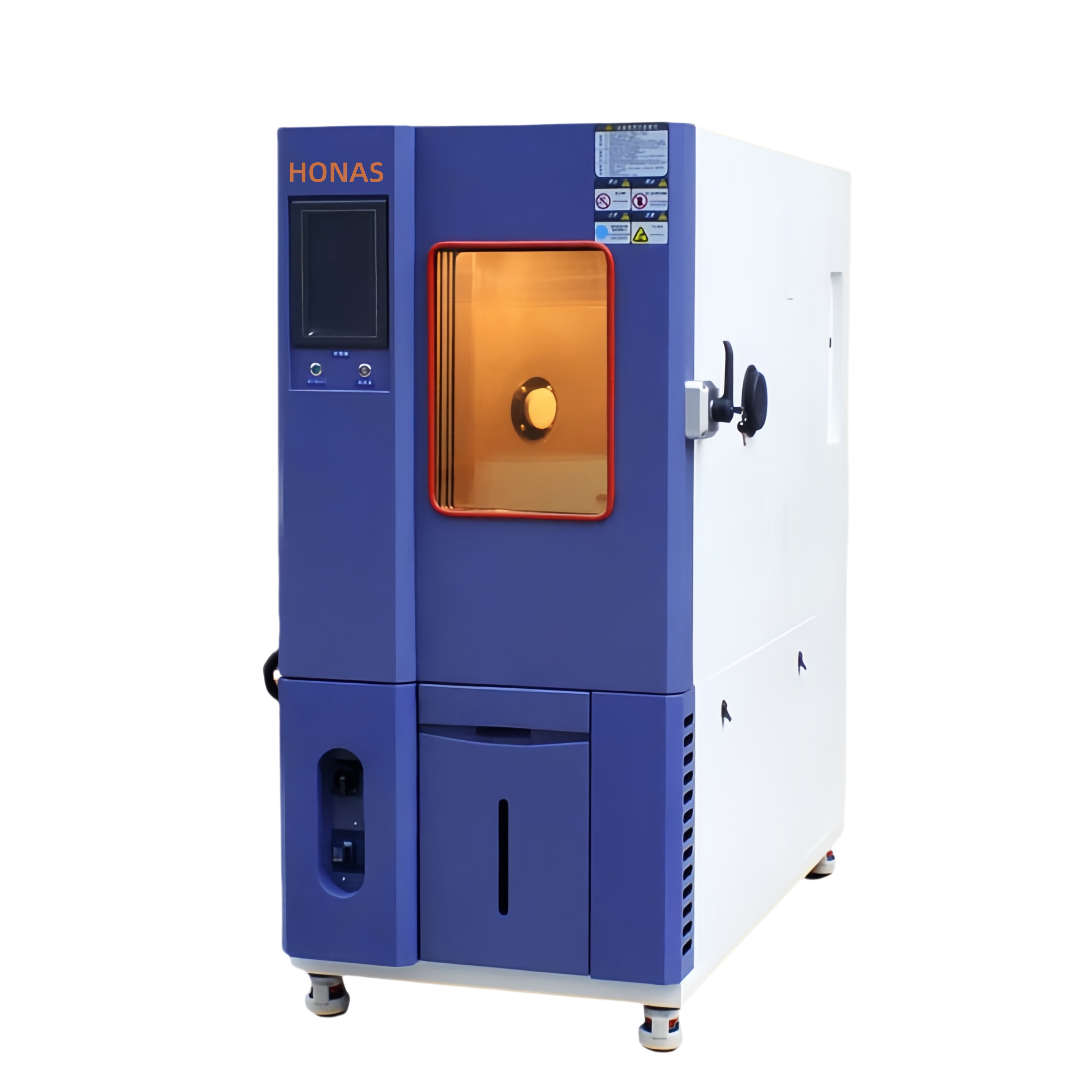

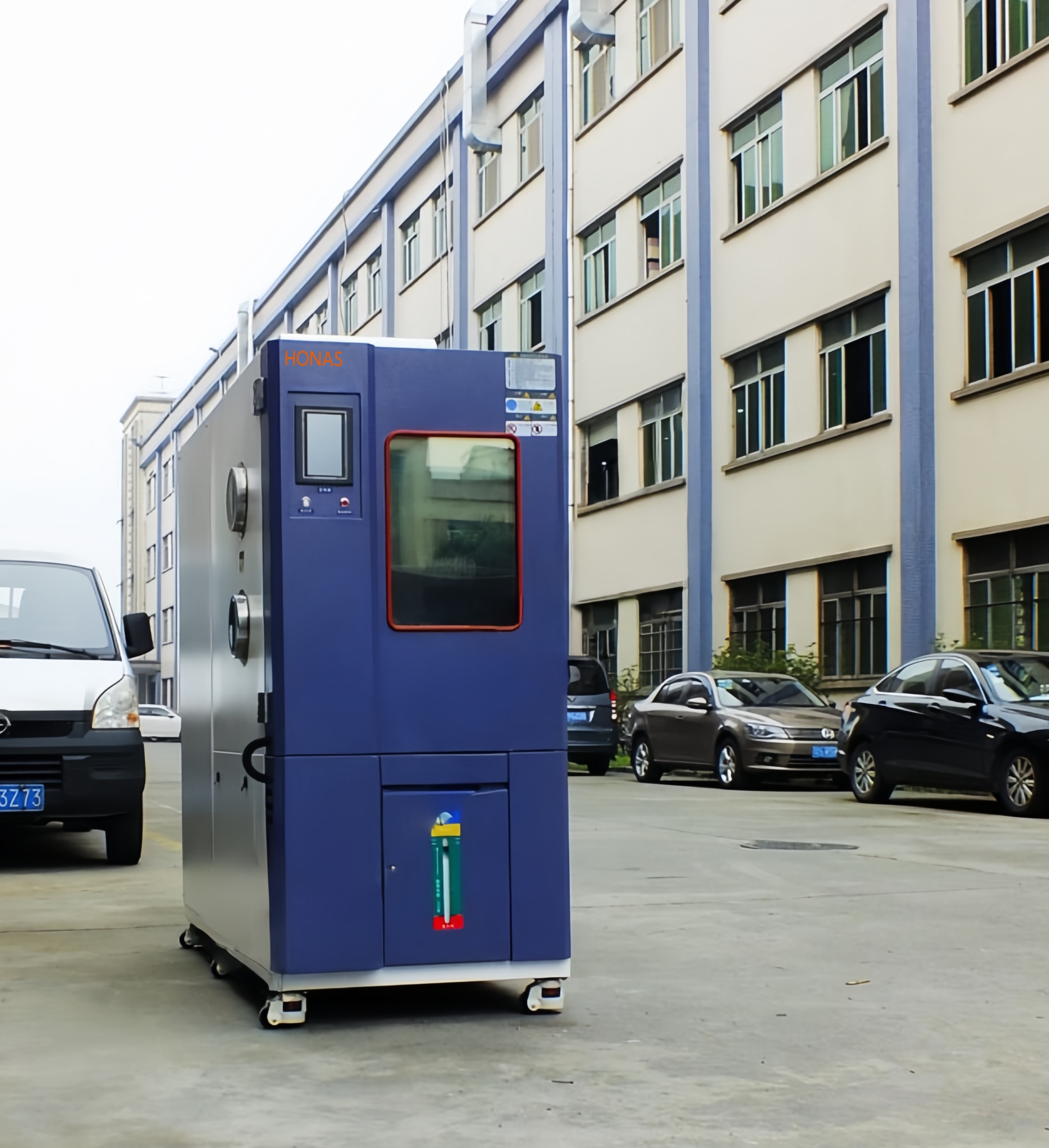

Constant Stability Climatic Chamber with Humidity Control ±1%RH Accuracy for Rubber and Polymer and Electronic Components Aging
- Humidity range：10%~98%RH
- Temperature range：-70℃-+150℃
- Materials：SUS304 stainless steel
- power：AC380V、50Hz、Three-phase four-wire + protected ground.
- Product description:Manufacturer-direct ISO 17025-compliant high-precision constant temperature and humidity equipment (achieving temperature fluctuation of ±0.2°C and humidity uniformity ≤0.5% RH)
Equipment Application
The high and low temperature aging test chamber is one of the climate simulation test devices, primarily providing users with various high-temperature environments to assess the operational status of products and materials under high-temperature conditions, rapidly identify defects in products or exposed components, and ensure product quality.
Application Fields
Electronic components, information and communication technology, electromechanical products, transportation, energy materials, aerospace, medical and chemical industries, plastics and rubber materials, and related products' heat resistance, cold resistance, moisture resistance performance, and quality management engineering.
Product Paramenters
Model
Internal Dimension (W*H*D)
External Dimension (W*H*D)
HNS-WS100
400*500*500mm
600*1400*1300mm
HNS-WS150
500*600*500mm
700*1500*1300mm
HNS-WS225
500*750*600mm
700*1650*1400mm
HNS-WS408
600*850*800mm
800*1750*1600mm
HNS-WS800
1000*1000*800mm
1200*1900*1650mm
HNS-WS1000
1000*1000*1000mm
1200*1900*1850mm
Temperature range
Low temperature:0℃、-20℃、-40℃、-55℃-60℃、-70℃；high：+150℃、+100℃、+80℃（adjustable）
Humidity range
5%~98RH;10%~98%RH; 20%~98%RH
Temperature change rate
3℃/min, 5℃/min, 10℃/min,15℃/min, 20℃/min,25℃/min (adjustable)
Temperature fluctuation
±0.2℃
Humidity fluctuation
±3%RH
Temperature uniformity
≤2℃
Humidity uniformity
±3%RH
Heating time
About 3~4℃/min
Temp.rising speed
+10℃→+80℃ 25 min nonlinearity（load testing））
Lead hole
2pcs 50mm (customize)
Condenser
Air-cooled condenser.
Cooling time
About 0.7℃~1.5℃/min (customize , linear or nonlinear )
Cooling method
Air or water cooling type
Heating system
Stainless steel fin heat pipe heating air way
Materials
SUS304 stainless steel
Total power
AC380V、50Hz、Three-phase four-wire + protected ground.
Product Advantages:

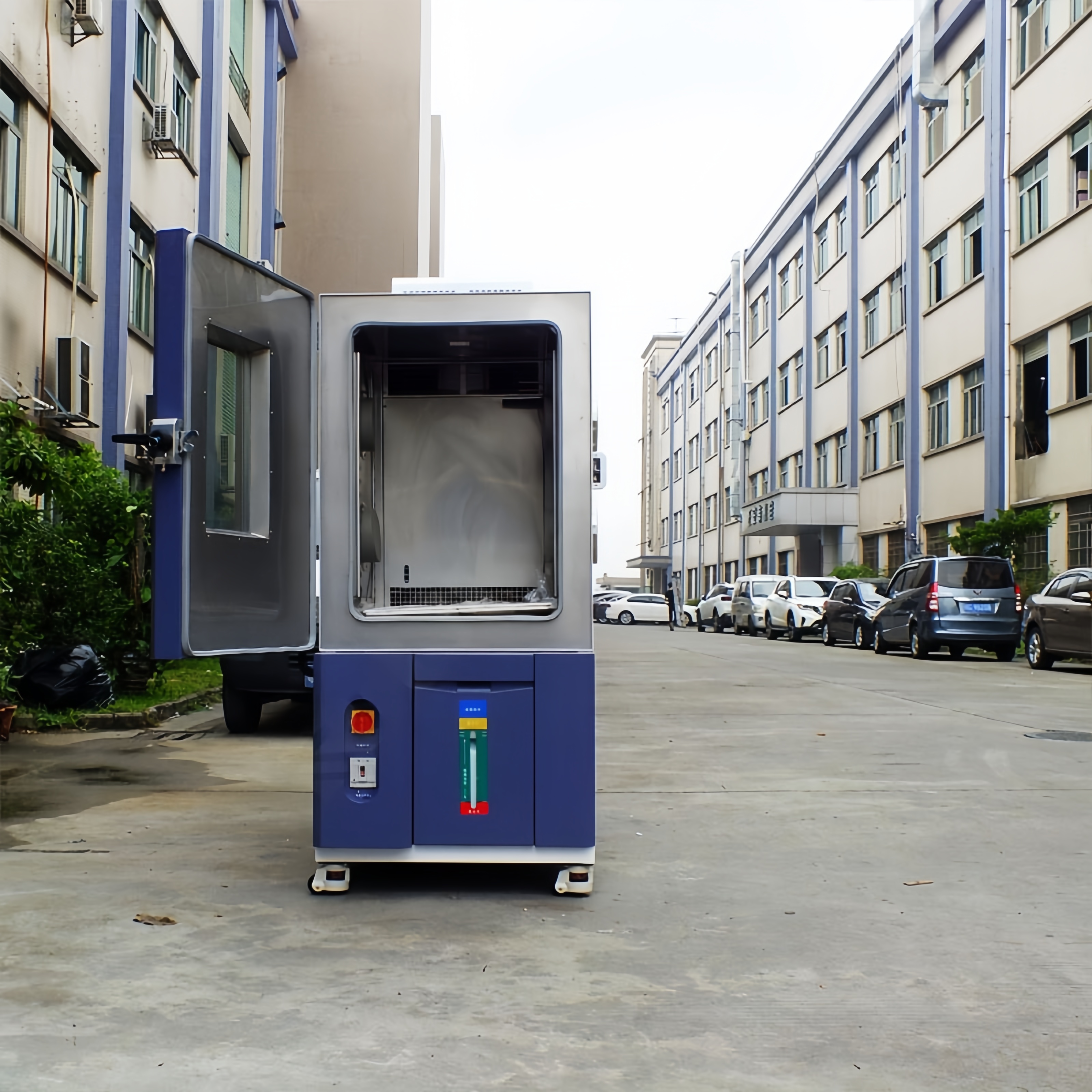

1. User-friendly operation with a large viewing window Supports computer connection and data export/saving via USB. Features a large viewing window for enhanced visualization of product status during testing;
2. Controllable continuous operation, large capacity, and easy to clean Can operate continuously at low temperatures for 1,000 hours without frost buildup or temperature rebound. Equipped with a drawer-style large-capacity water tank for extended testing duration and easy disassembly/cleaning;
3. Optimized Design, Compact Footprint, Stable and Safe Circuitry
Features the latest optimized design with a compact footprint, unrestricted by spatial constraints. The test chamber's water supply and electrical distribution panels are separated to ensure stable, reliable, and safe operation.
Compliance with standards:
GB/T 10586-2006
IEC 60068-3-6:2018
GB/T 2423.3-2016
JESD22-A101D
ISO 16750-4:2010
GMW 3172:2021
GJB 150.9A-2009
