soil sensor

soil VWC EC sensor with SDI-12 RS485 output

VWC range :0 (air) to 100 (water)
Resolution :0.01 ℃
Accuracy:±0.5 ℃
Dimensions:10 cm (1) x 3.2 cm (w) x 0.7 cm (d)
Product description:soil VWC EC sensor with SDI-12 RS485 output
INQUIRY EMAIL

Application:

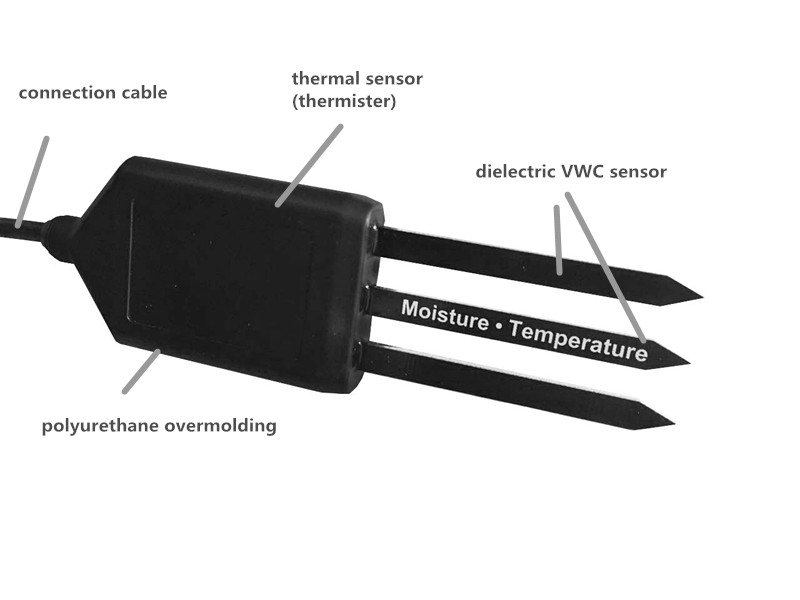

MT-10 to measure the water content, electrical conductivity, and temperature of soil. The MT-10 uses an oscillator running at 70 MHz to measure the dielectric permittivity of soil to determine the water content. A thermistor in thermal contact with the sensor prongs provides the soil temperature. The Polyurethane coating on the MT-10 circuit board protects the components from water damage and gives the sensor a longer life span.

Technical Parameter:

Item	Parameter
VWC range	0 (air) to 100 (water)
Range	-40 to 80 ℃
Resolution	0.01 ℃
Accuracy	±0.5 ℃
Dimensions	10 cm (1) x 3.2 cm (w) x 0.7 cm (d)
Prong Length	5.2 cm
Dielectric Measurement Frequency	70 MHz
Measurement Time	150 ms (milliseconds)
Power requirements	3.6 to 30 VDC, 0.3mA quiescent, 10mA during 150 ms measurement
Output	SDI-12 / RS485 MODBUS RTU
Operating Temperature	-40 to 80 ℃

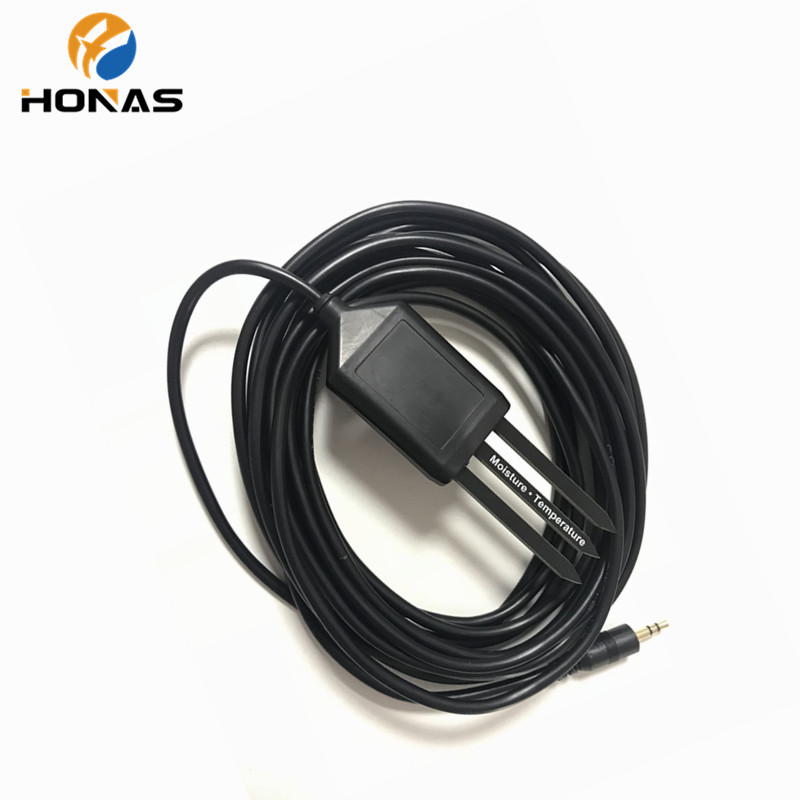

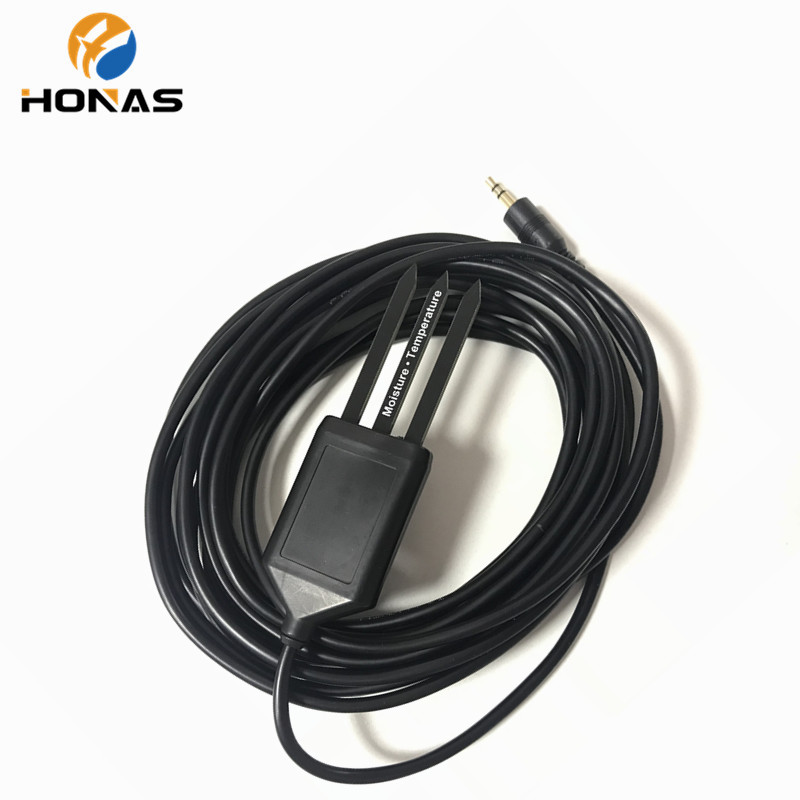

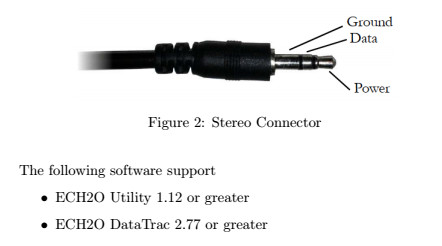

Connector Types	3.5 mm (stereo) plug or stripped & tinned lead wires (Pigtail)
Cable Length	5 m standard; Maximum 75 m. Please contact if you need longer cable lengths.
SENSOR NAME	MT10
DIMENSIONS	10 cm X 3.2 cm
CABLE LENGTH	5 meters (Custom cable lengths are available for an additional cost.)

Type selection:

Code number

Code

Code info.

Code1：model

MT10

Code2：Measurement parameters

Soil moisture, Soil temperature（SDI-12）

Soil moisture, Soil temperature, soil electrical conductivity (EC). Three parameter measurement（RS485 ONLY）

Code3：

Soil moisture range

0-100%

Code4：

Electrical conductivity range

（RS485 ONLY）

0-5000us/cm （RS485 ONLY）

0-10000us/cm（RS485 ONLY）

0-20000us/cm（RS485 ONLY）

NONE

Code5：

CONNECTION TYPES

PIGTAIL CABLE

STEREO CABLE （SDI-12 ONLY）

Code6：Output

SDI-12

RS485 MODBUS RTU

Code 7：cable lengths

005

XXX

5 meters

Custom, XXX is an arbitrary length (unit: m)

Model example：

MT10 Sensor, Soil moisture, Soil temperature, soil moisture range is 0-100%, interface SDI-12, connection type is STEREO CABLE, 5 meters cable length.

Type selection code：MT10 - A A D B A 005
