Face mask test equipment

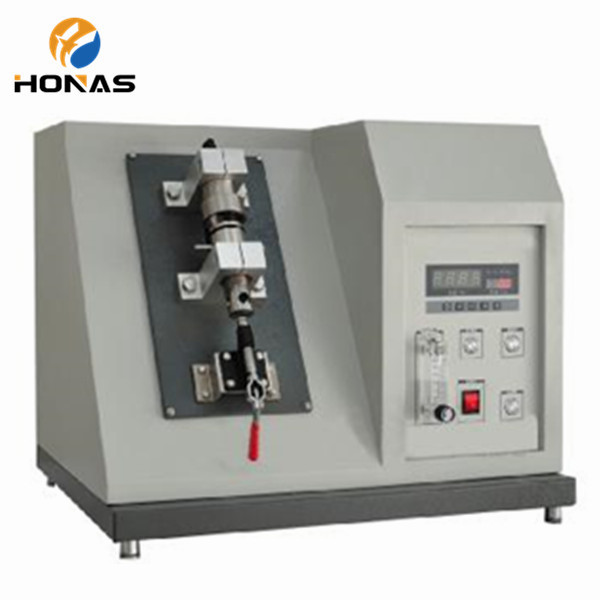

Medical Face Mask Air Exchange Pressure Difference Tester

Air flow:8L / min;
Sample breathable caliber:25mm
Range of differential pressure sensor:0 ～ 500pa;
Power:220V，50Hz
Product description:Medical Face Mask Air Exchange Pressure Difference Tester
INQUIRY EMAIL

The main purpose:

It is suitable for measuring the gas exchange pressure difference of medical surgical masks, and it can also be used to determine the gas exchange pressure difference of other textile materials.

Characteristics :

1. Adopt suction air source as the power source of the instrument, not limited by the space of the test site;

2. Equipped with high-precision pressure difference sensor, digitally display the pressure difference on both sides of the sample;

3.Special sample holder to ensure the firm clamping of the sample

Technical Parameter:

Pressure difference (ventilation resistance) measurement range	（0～100）Pa/cm2
Air flow	（8±0.2）L/min
Sealing method	O-ring seal
Sample breathable caliber	Ф25mm;
Test area	4.9cm2
Range of differential pressure sensor	0 ～ 500pa;
display mode	Digital touch screen display
Gas source	Air compressor
Power	220V，50Hz,1KW
Standard	YY 0469-2011 surgical masks YY 0969-2013 disposable medical mask EN 14683: 2014 Medical face masks -Requirements and test methods
Test result	After the test is completed, the test data is automatically recorded
Dimension	540390400mm(LWH)
Continuously adjustable air pressure	0～10L/min
weight	Abotu 35kg
voltage fluctuation	10% of rated voltage
Ambient temperature	20℃±2℃
Relative humidity	65±2%
