IP Waterproof test machine

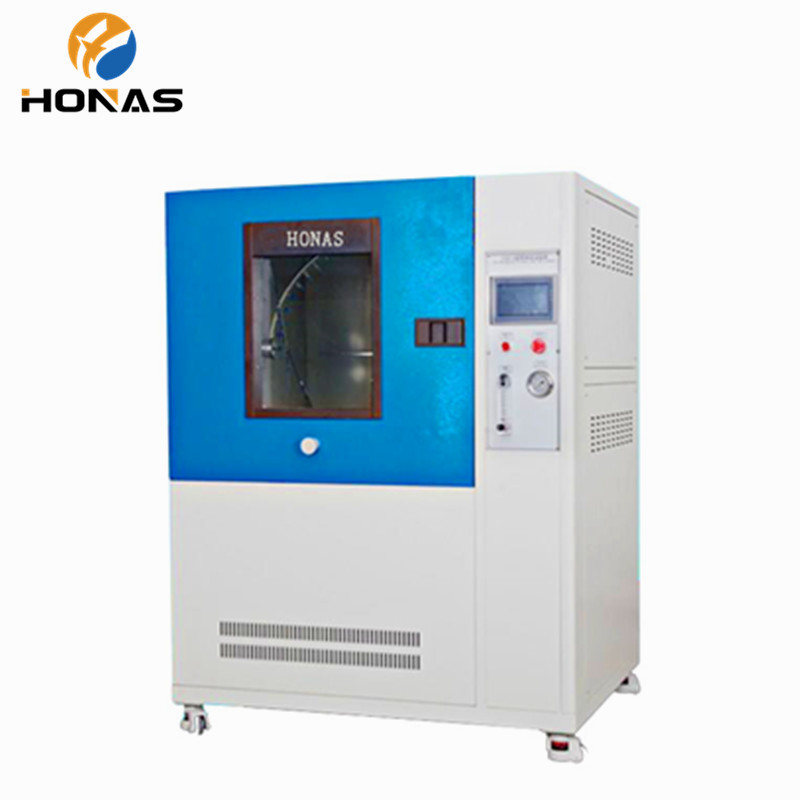

IEC60529 IPX3 IPX4 swing tube rain test chamber for led lamp test

Swing tube diameter:15mm
Power voltage:220V
Test turntable speed:1-5r/min(precise control)
Swing tube angle:Swing tube angle
Product description:IEC60529 IPX3 IPX4 swing tube rain test chamber for led lamp test
INQUIRY EMAIL

Application ：

The main function of the equipment is for the electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulated rain conditions, the physical and other related properties of the test. After the test, through the test to determine whether the performance of the product requirements, in order to facilitate the product design, improvement, testing and factory inspection use.

Technology parameter：

No.	Model	HNS-IP34B-R200	HNS-IP34B-R400	HNS-IP34B-R600
1	Swing tube size （mm）	R200	R400(should be add R200 swing tube )	R600(should add R400，R200 swing tube )
2	Internal size（mm）	L500D500H500	L900D900H900	L1300D1300H1300
3	External size（mm）	L1000D700H1400	L1400D1120H1750	L1800D1520H1950
4	flow（L/mm））	0-1L/min	0-2L/min	0-3 L/min
5	Turntable size （mm）	200	400 (can customize 200 turntable )	600 (can customize 400，200 turntable )
6	Turntable height range	150-250mm	350-600mm	550-1000mm
7	Sprinkler size	0.4mm
8	Swing tube diameter	15mm
9	Swing tube angle	120º（IPX3）、350º（IPX4）or custom setting
10	Swing tube speed	120° to and fro 4S、360°to and fro 12S（Precise control）or custom setting
11	Swing tube materials	SUS304 stainless steel
12	Test time	0-999min
13	Test turntable speed	1-5r/min(precise control)
14	protective device	Leakage, water, short circuit
15	Power voltage（V）	220V
16	power（KW）	1
17	Standard	IEC60529:1989+A1:1999、GB4208-2008、GB7000.1（IPX3、IPX4)
